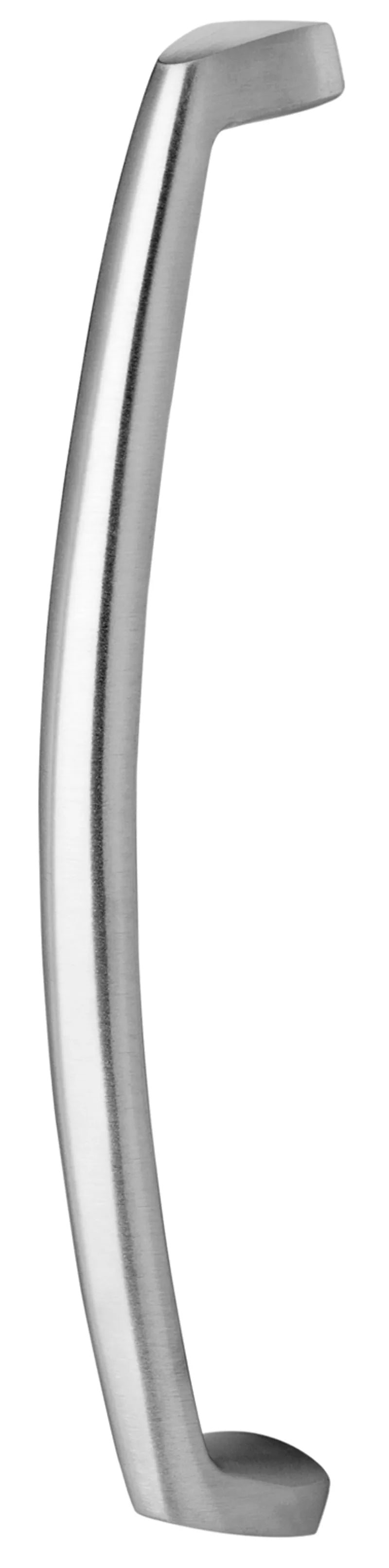

The 137L Cast Door Pull, which is a longer version of our 137 pull, features a unique rounded shape that is sure to stand out.
Specifications
- End Shape: Square
- Grip Shape: Round
- Base Material: Cast brass, Bronze
- Base Width: 1 1/4"
- Fastener: 1/4 -20 x 2-1/4" Thru Bolt & Finish Washer (standard 1-3/4" door)
- Projection: 2 1/2"
- Pull Type: Cast
- Advise if door thickness is other than 1-3⁄4"
| Part Number | Overall Size | Center-To-Center | Base Size | Clearance | Weight |
|---|---|---|---|---|---|
|
137L |
10 3/4" h |
10" |
1 1/4" w x 5/8" d |
1 3/4" |
1.1 lbs |
Options
- Thru Bolt Wood or Metal Door
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
Type 1 |
Thru Bolt Wood or Metal Door |
