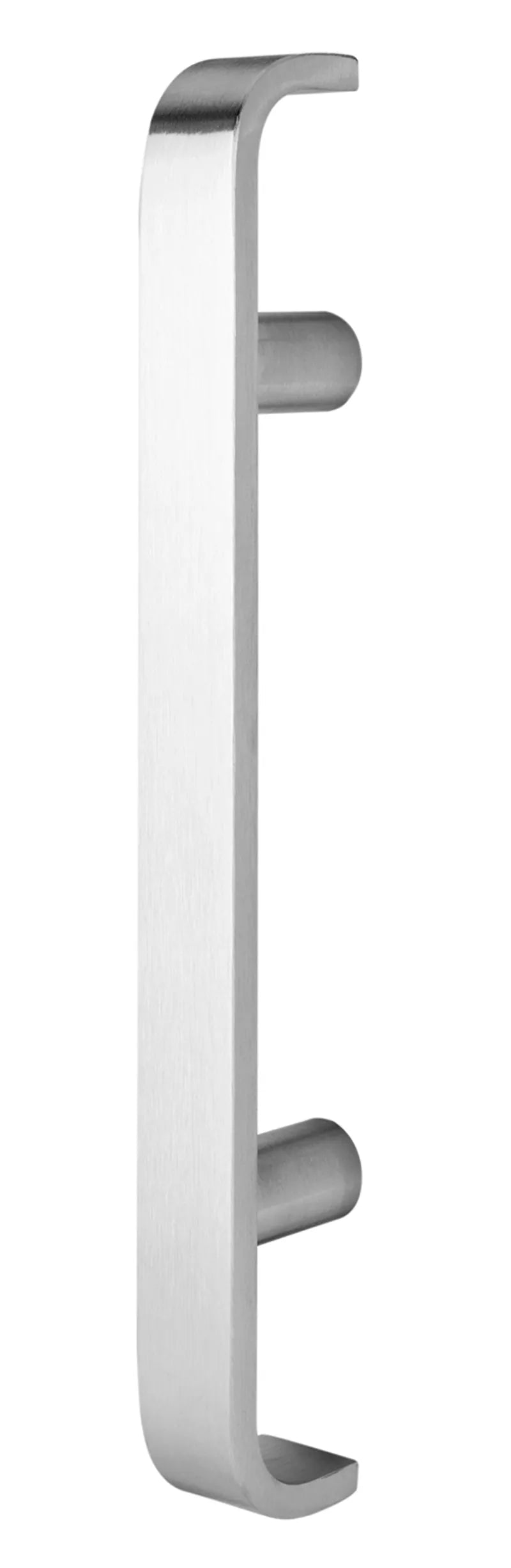

The 121 Door Pull features back-to-back mounting and vertical engraving.
Product Overview
Features
- Engraving available vertically
- Back to Back mounting
Specifications
- End Shape: Bent
- Grip Shape: Rectangular
- Base Material: Aluminum, Brass, Stainless steel
- Fastener: 1/4 -20 x 2-1/4" Thru Bolt & Finish Washer (standard 1-3/4" door)
- Projection: 1 7/8"
- Pull Type: Straight
- Advise if door thickness is other than 1-3⁄4"
| Part Number | Overall Size | Center-To-Center | Base Size | Clearance | Weight |
|---|---|---|---|---|---|
|
121 |
14" h |
8" |
1" dia |
1 1/2" |
2.6 lbs |
Options
- Engraving
- Thru Bolt Wood or Metal Door
- Back-to-Back Wood or Metal Door
- Surface Concealed Metal Door
- Surface Concealed Wood Door
- Decorative Thru Bolt – Wood or Metal Door
- Back-to-Back Glass Door
- Decorative Thru Bolt Glass Door
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
Type 1 |
Thru Bolt Wood or Metal Door |
|
|
Type 5 |
Back-to-Back Wood or Metal Door |
|
|
Type 6 |
Surface Concealed Metal Door |
|
|
Type 8 |
Surface Concealed Wood Door |
|
|
Type 12 |
Decorative Thru Bolt – Wood or Metal Door |
|
|
Type 13 |
Back-to-Back Glass Door |
|
|
Type 15 |
Decorative Thru Bolt Glass Door |
