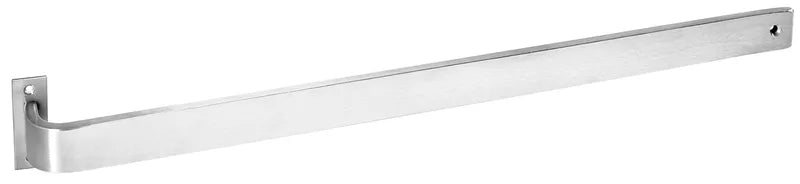

The 11-PB (base plate) Slanted Push Bars provide robust and long-lasting commercial-grade solutions for wood or metal doors. With a variety of finishes to match any door color, they offer both durability and style to cater to various installation preferences.
Specifications
- End Shape: Flat
- Grip Shape: Flat
- Base Material: Aluminum, Brass, Bronze, Stainless steel
Fastener: Metal Door: Type 2, Surface, 1/4-20 x 1-1/2" MS & #8-32 x 3/4" OH MS; Wood Door: Type 2, Surface, #12 x 3/4" WS & #8 x 3/4 OH SMS - Ordering: Specify CTC, door type, mounting, and finish
- Options: Advise if door thickness is other than 1-3/4"
| Part Number | Material Size | Base Size | Projection | Clearance | Weight |
|---|---|---|---|---|---|
|
11-PB |
1 1/2" w x 3/8" d |
1" w x 3" h x 1/8" d |
2" |
1 5/8" |
6.2 lbs |
|
12-PB |
1 1/2" w x 3/8" d |
1 1/2" w x 3/8" d |
1 7/8" |
1 1/2" |
6.2 lbs |
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
Type 1 |
Thru Bolt Wood or Metal Door |
|
|
Type 2 |
Surface Applied Wood or Metal Door |
|
|
Type 3 |
Back-to-Back Wood or Metal Door |
|
|
Type 4 |
Surface Screws and Thru Bolt Wood or Metal Door |
