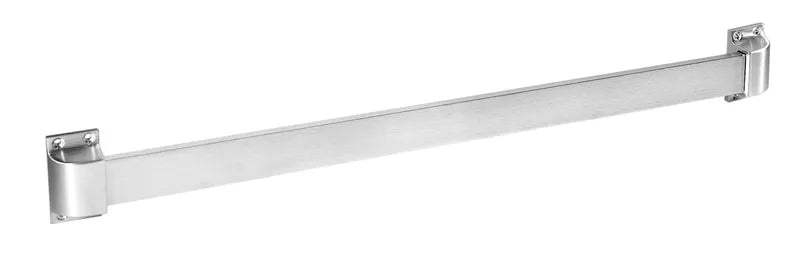

The 10-PB Push Bar is ideal for wood and metal doors and can be field cut if necessary.
Product Overview
Features
- Can be field cut if necessary
Specifications
- End Shape: Flat
- Grip Shape: Rectangular
- Base Material: Brass, Bronze
- Door Material: Metal, Wood
- Fastener: Metal door: type 2, surface, #8 - 32 x 3/4" OH MS; Wood door: type 2, surface, #8 x 3/4" OH SMS
- Ordering: Specify CTC, door type, mounting, and finish
- Can be field cut if necessary
| Part Number | Material Size | Base Size | Projection | Clearance | Weight |
|---|---|---|---|---|---|
|
10-PB |
1 1/2" w x 3/8" h |
1 1/2" w x 2 7/8" h |
1 1/4" |
5/8" |
6.9 lbs |
Mounting Types
Our mounting systems firmly attach the pull to the door and are guaranteed for the life of the door. Choose from thrubolt, back to back or concealed mountings for wood, metal and glass doors.
Note: Y base plates are recommended on wood or glass doors to make a stable and durable mounting.
Note: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
Download Mounting Chart File: Mounting Chart.pdf
| Type | Description | |
|---|---|---|
|
Type 2 |
Surface Applied Wood or Metal Door |
