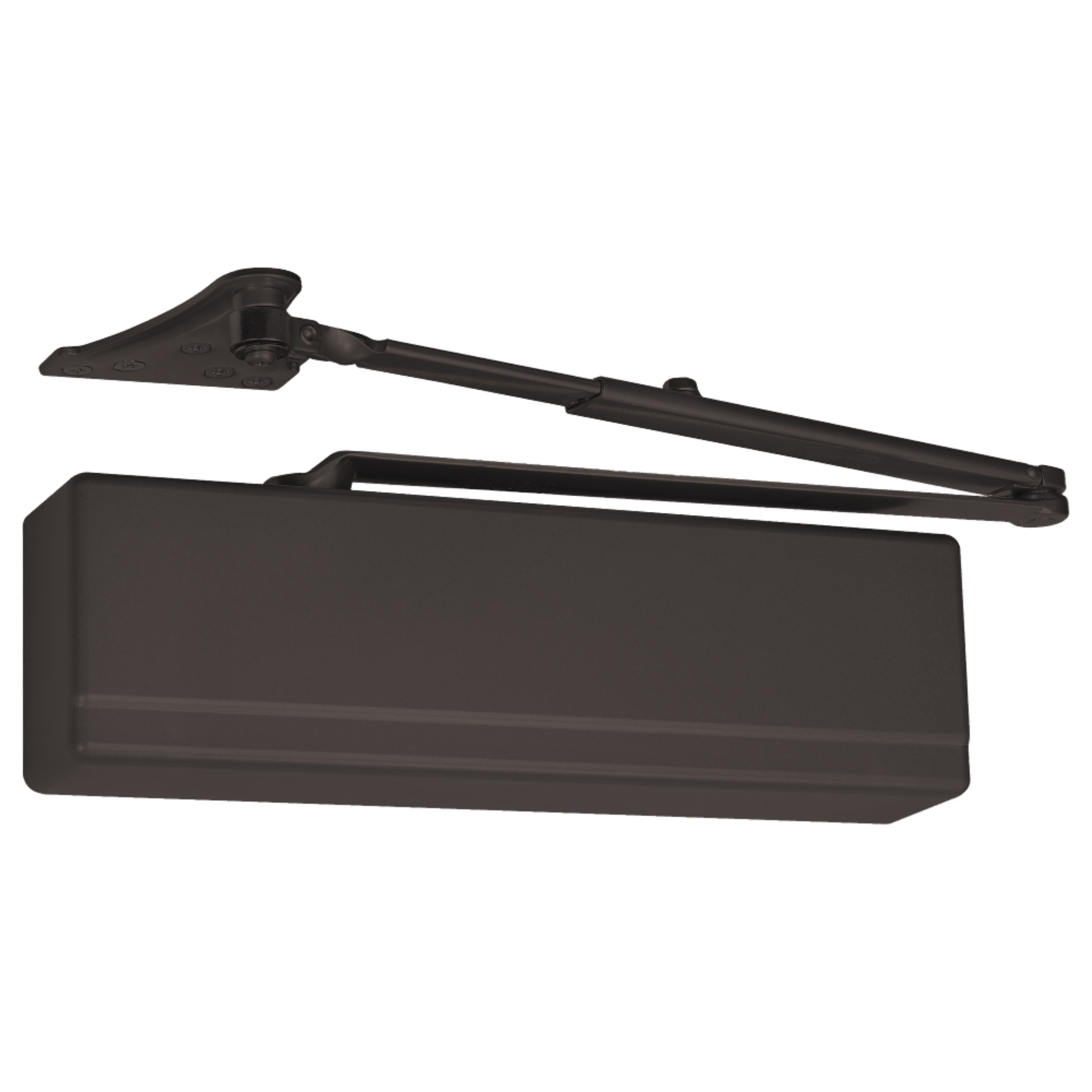

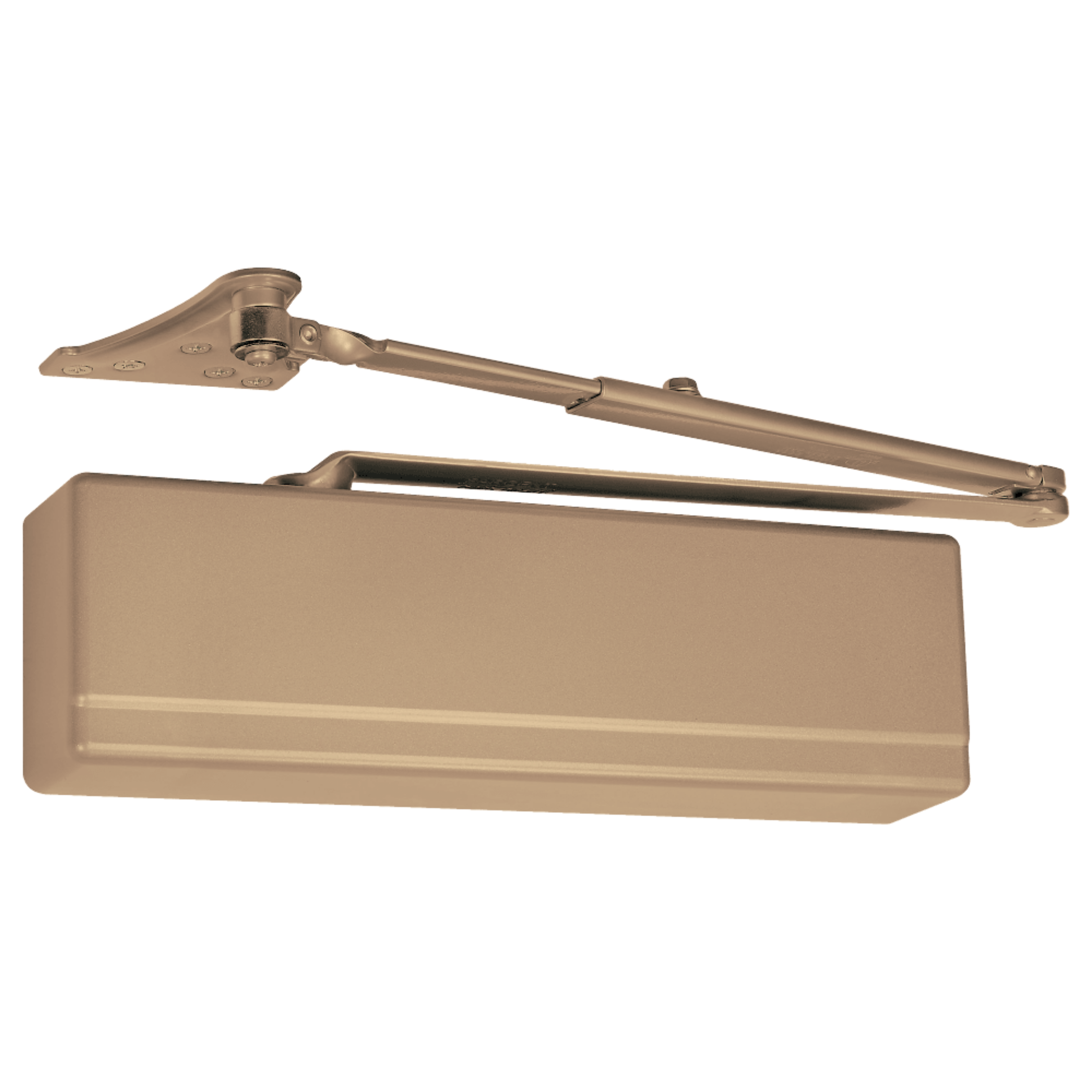

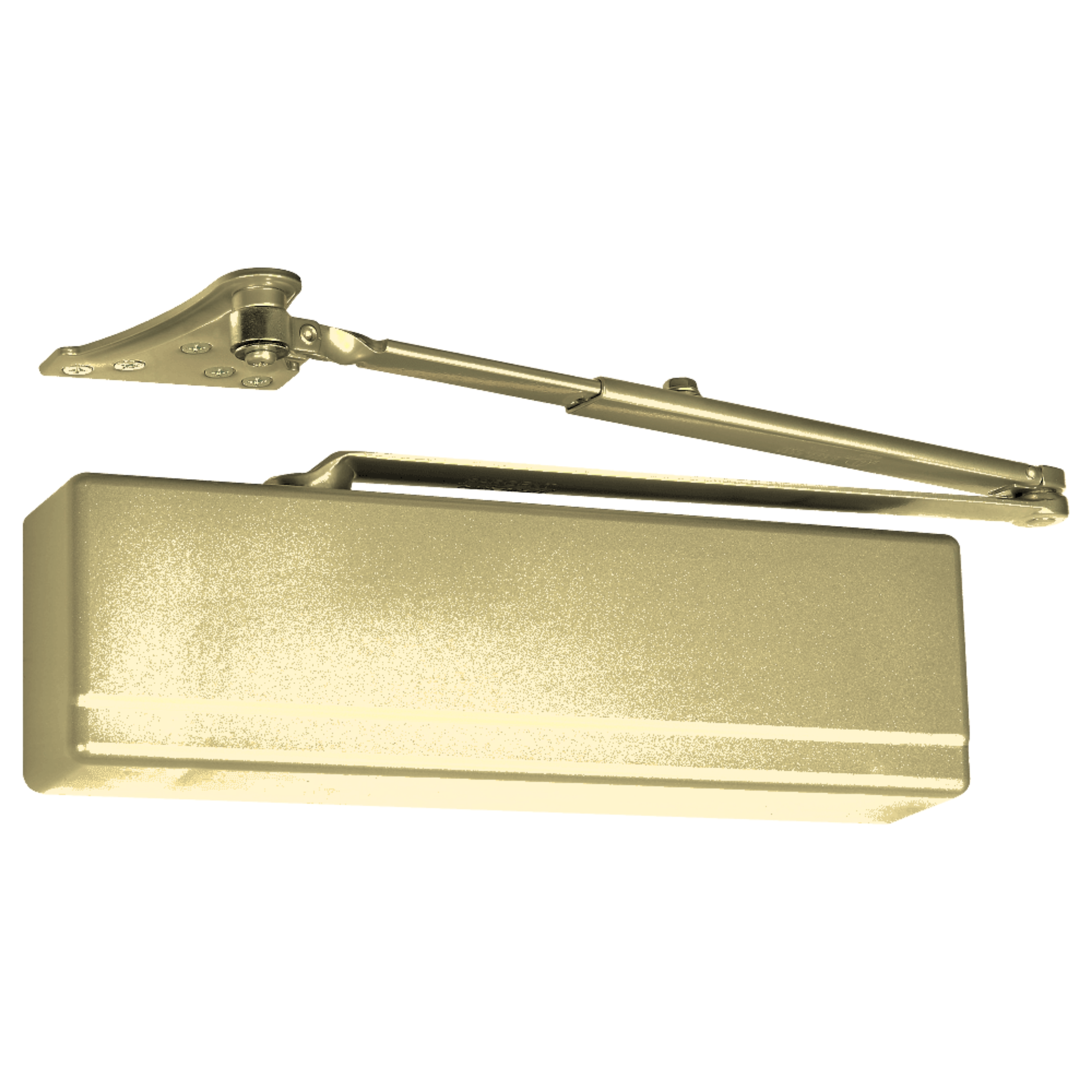

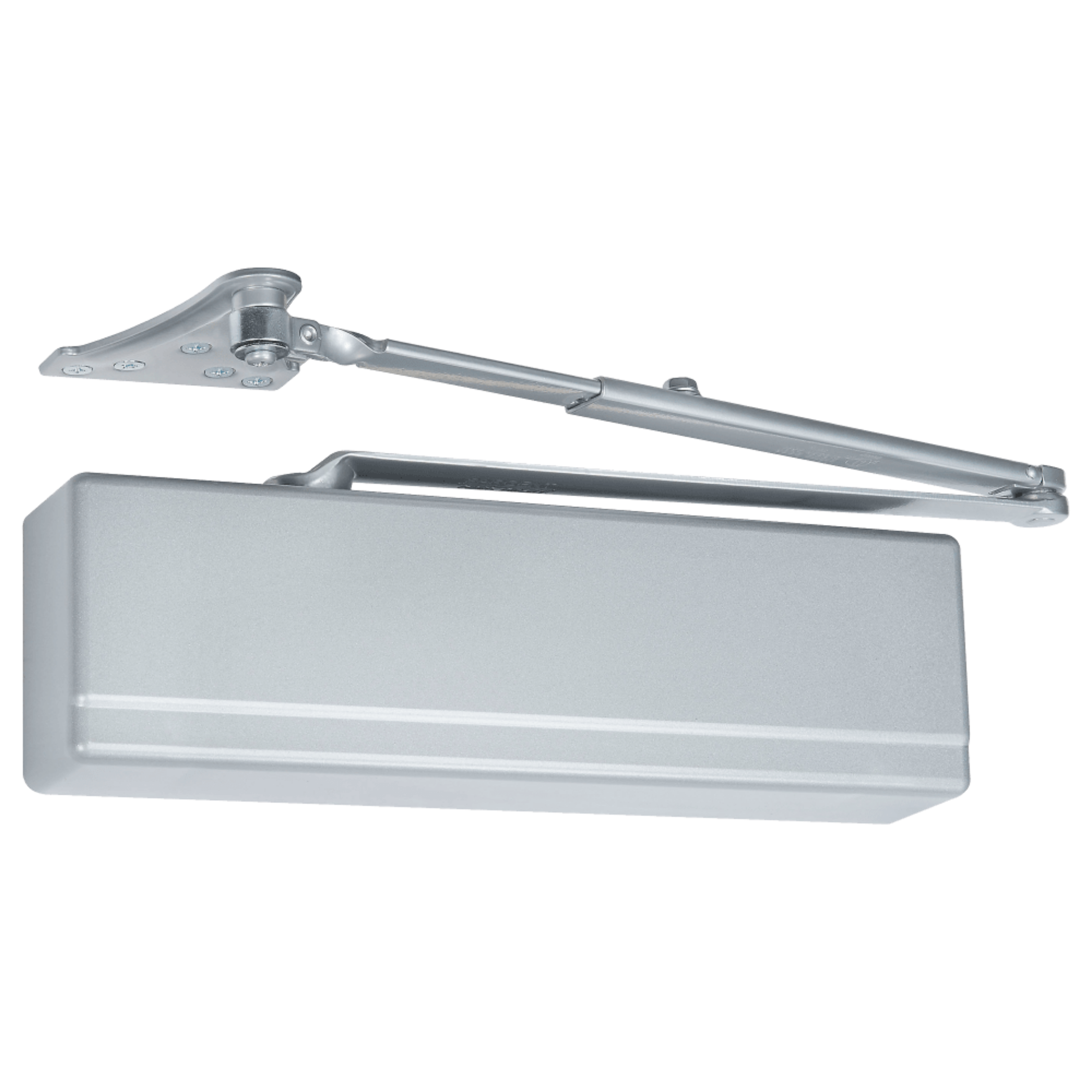

Norton 9500 Heavy Duty Door Closer

SKU: 9500-689
$ 403.00
Features

  • Cast iron closer

  • Pressure relief valves for both opening and closing

  • Exceeds 25 million cycles

  • 1-1/2" diameter piston

  • Closer mounting plate included for easy installation

  • Adjustable spring sizes 1-6

  • Tri-packed

  • 2-1/4" projection

  • Non-handed

  • Interior or exterior doors

  • Molded ABS plastic cover

  • All standard arm applications allow doors to swing 180°, conditions permitting

  • Hold open and heavy-duty arms available

  • Slide tracks - push or pull side mounting

  • Staked valves

Benefits

  • Constructed with robust materials and internal components

  • Protects the door and frame from damage and reduces maintenance costs

  • Stringent testing supports a long-life of reliability


  • One package covers regular, top jamb, and parallel arm mounting

  • Low profile projection provides clean aesthetic

  • Arm configurations meet broad range of applications

  • Staking limits ability to accidentally back out the valve while adjusting closer

Specifications

  • Closer Type: Surface

  • Maximum Door Weight: 250 lbs

  • Traffic Rating: High Traffic

  • Warranty: 30-year limited warranty

Certifications

  • ANSI/BHMA A117.1

  • ANSI/BHMA A156.4, Grade 1

  • Americans with Disabilities Act (ADA) Compliant

  • Buy American Act*

  • *Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.

  • Environmental Product Declaration (EPD)

  • UL 10C Positive Pressure up to 3 hours

  • UL-cUL Listed

ModelMounting TypeDescriptionImage

9500

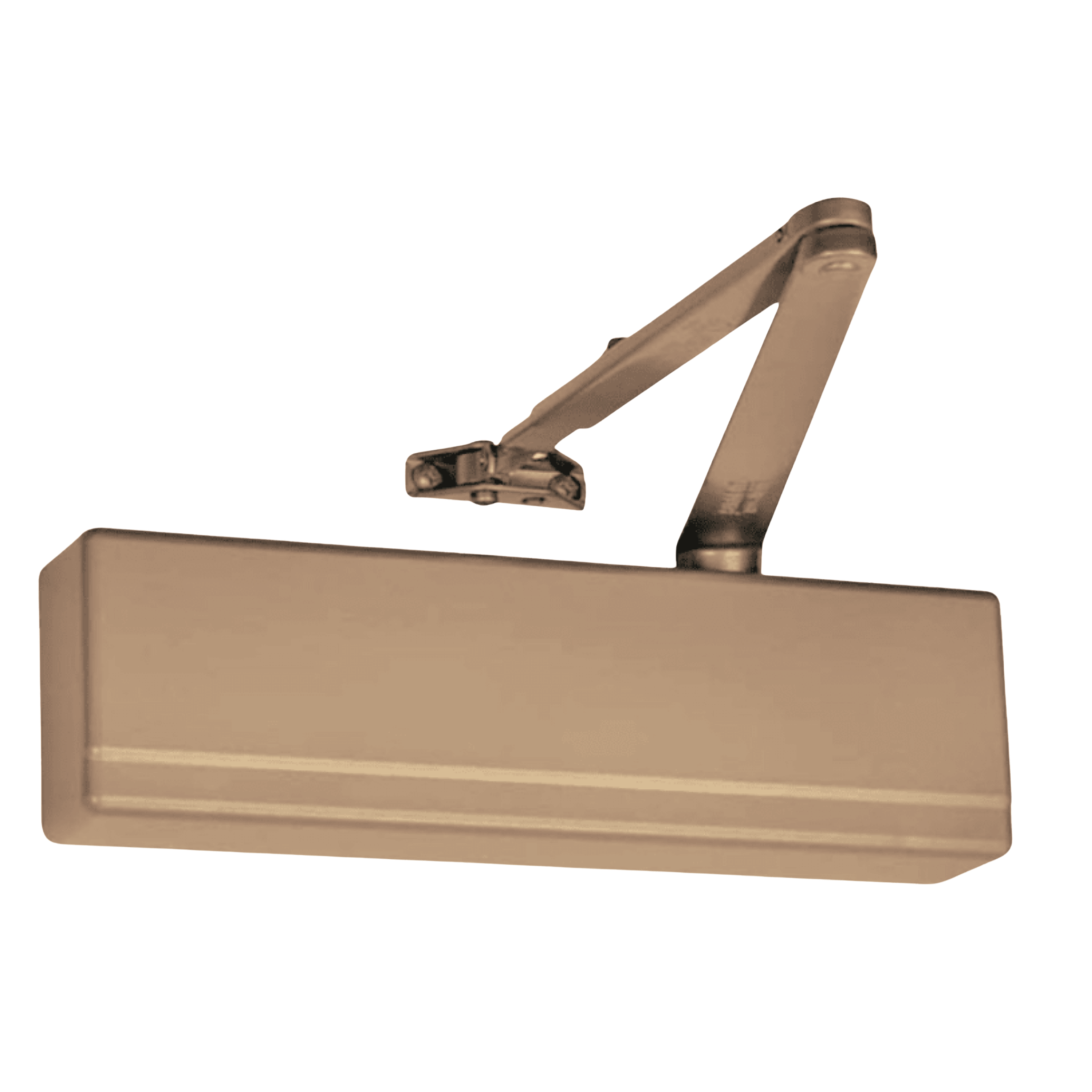

Regular Arm

  • Pull-side application

  • Most common mounting, providing the greatest closing efficiency

View

9500

Parallel Arm

  • Push-side application

  • Very little or no hardware projecting beyond the frame face, when in closed position, in most situations

View

9500ST

Pull side slide track

  • Provides a clean aesthetic look with maximum 100° door swing and a minimum door width of 28" (71cm)

  • Hold open can be set for 85°, 90°, 95°, or 100°

View

PS9500ST

Push side slide track

  • Clean aesthetic look for doors opening a maximum of 100˚ and a minimum door width of 32" (81cm)

  • Backcheck option recommended

View

9500

Top Jamb

  • Push-side application; closer mounted on the frame

  • Accommodates reveals from 3-3/8" (86mm) up to 7-1/4" (184mm), depending on door and frame conditions

View

CLP9500

CloserPlus® arm

  • Recommended for high-use, high abuse environments

  • Tamper-resistant, solid forged steel riveted arm

  • Field-reversible steel lug restructs degree of opening to protect door wall and hardware

  • Mounted on push side

View

PR9500

Parallel Rigid Arm

  • Recommended for high-use, high abuse environments

  • Tamper-resistant, solid forged steel riveted arm

  • Mounted on push side

View

PRO9500

Parallel Rigid Offset Arm

  • Recommended for high-use, high abuse environments

  • Provides additional vertical clearance

  • Mounted on push side

View

R9500

Regular Rigid Arm

  • Recommended for high-use, high abuse environments

  • Tamper-resistant, solid forged steel riveted arm

  • Mounted on pull side

View

UNI9500

Unitrol parallel arm

  • Recommended for high-use, high abuse environments

  • Integrates a door closer, shock absorber and auxiliary heavy duty overhead stop

  • Mounted on push side

View
