5500 SERIES | LOW ENERGY POWER OPERATOR

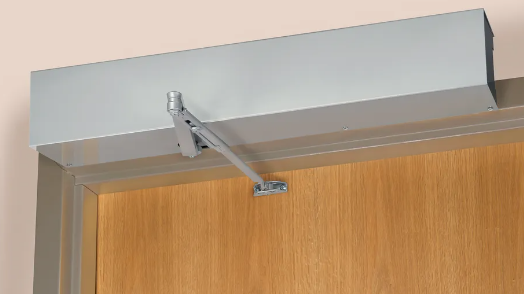

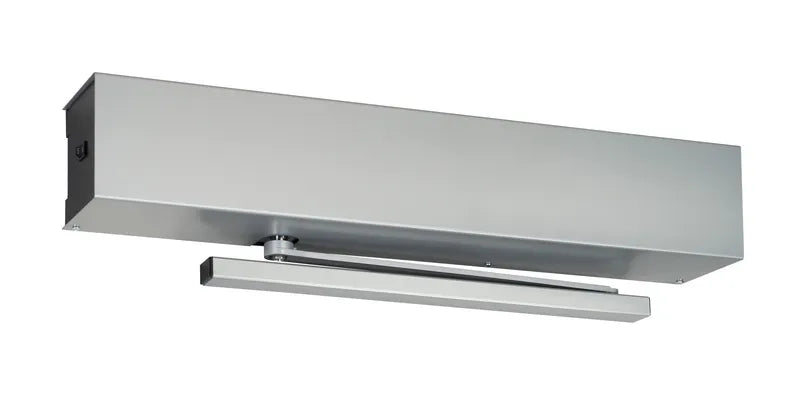

The Norton 5500 Series Low Energy Power Operators Electrohydraulic Door Closers is the perfect solution for busy doors that need to be easy to open. Its hydraulic closer ensures smooth and quiet door operation, and it can be activated either manually or automatically via door switches. This versatile operator is easy to install and can be mounted on either side of the door. It also features an obstruction detection system and comes with backcheck as standard. This Norton door closer series is compatible with wall switch actuation devices and can be integrated with access control systems. With a 2-year limited warranty, you can trust this operator to keep your doors running smoothly.
PRODUCT FEATURES
- Non-handed
- Push or pull side mounting
- Maximum door weight: 250lbs.
- Obstruction detection
- Backcheck standard
- Use with wall switch actuation devices
- Integration with access control systems
- 2-year limited warranty
SPECIFICATIONS
- Traffic Rating: Low Traffic
- Warranty: 2-year limited warranty
CERTIFICATIONS
- ANSI/BHMA A156.19
- ANSI/BHMA A156.4
- Americans with Disabilities Act (ADA) Compliant
- UL 10C positive pressure
- UL-cUL Fire-Rated Up to 3 Hours
BENEFITS
- Cost-effective automatic door operator
- Compliant solution for stringent ADA requirements
- New, smaller footprint for minimal aesthetics and tighter spaces
- Comprises a hydraulic closer to ensure quiet function and smooth operation when opened manually
- One of the only fire-rated, hydraulic operators available
- Easy, one-person installation with parts packaged pre-installed on the backplate
RESOURCES & DOWNLOADS
Norton 5500 Series Low Energy Power Operators Electrohydraulic Door Closers
Norton Rixson 5500 Series Operator, 5510 Pull Side Installation Instructions
Norton Rixson 5500 Series Operator, 5530 Push Side Installation Instructions
Norton Rixson 5500 Series Operator, 5511 Pull Side Installation Instructions
Norton Rixson 5500 Series Operator, 5531 Push Side Installation Instructions
