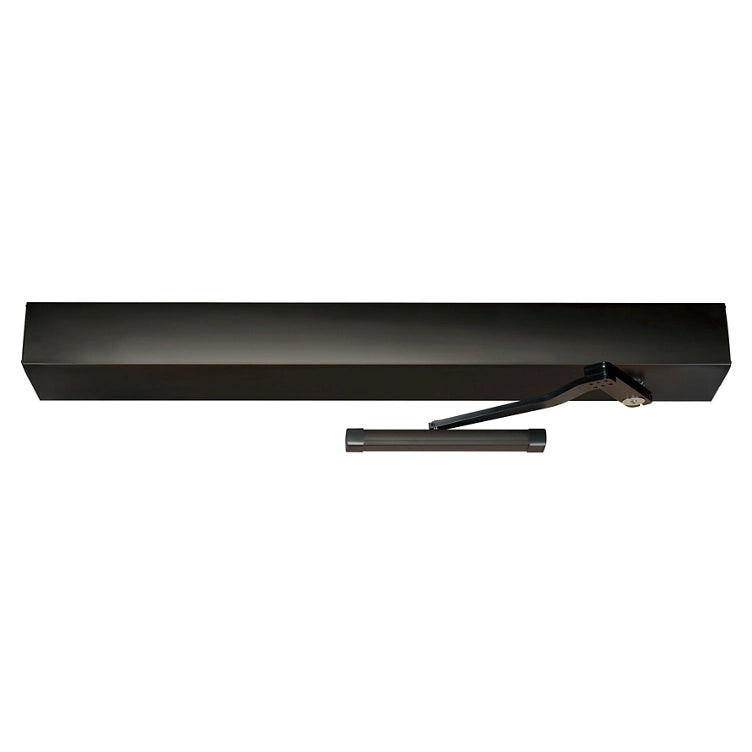

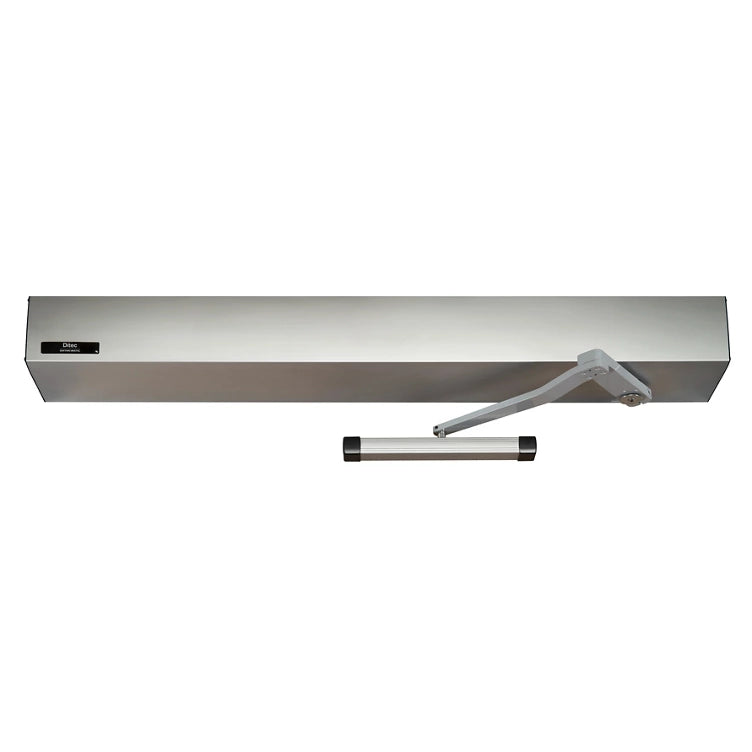

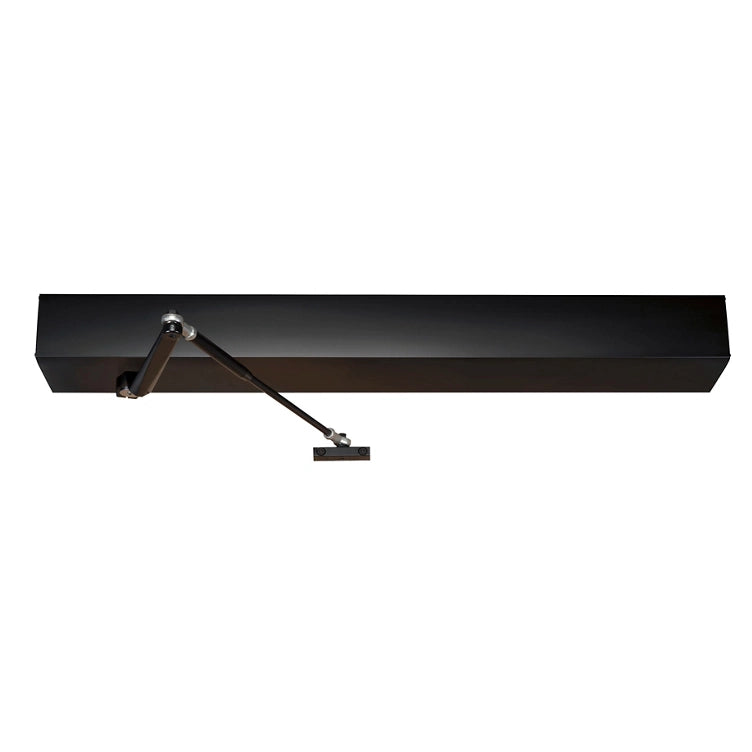

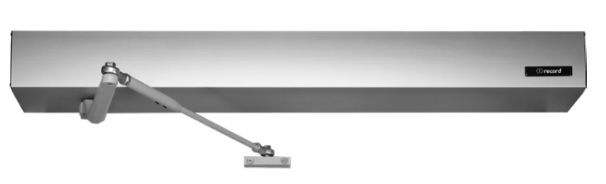

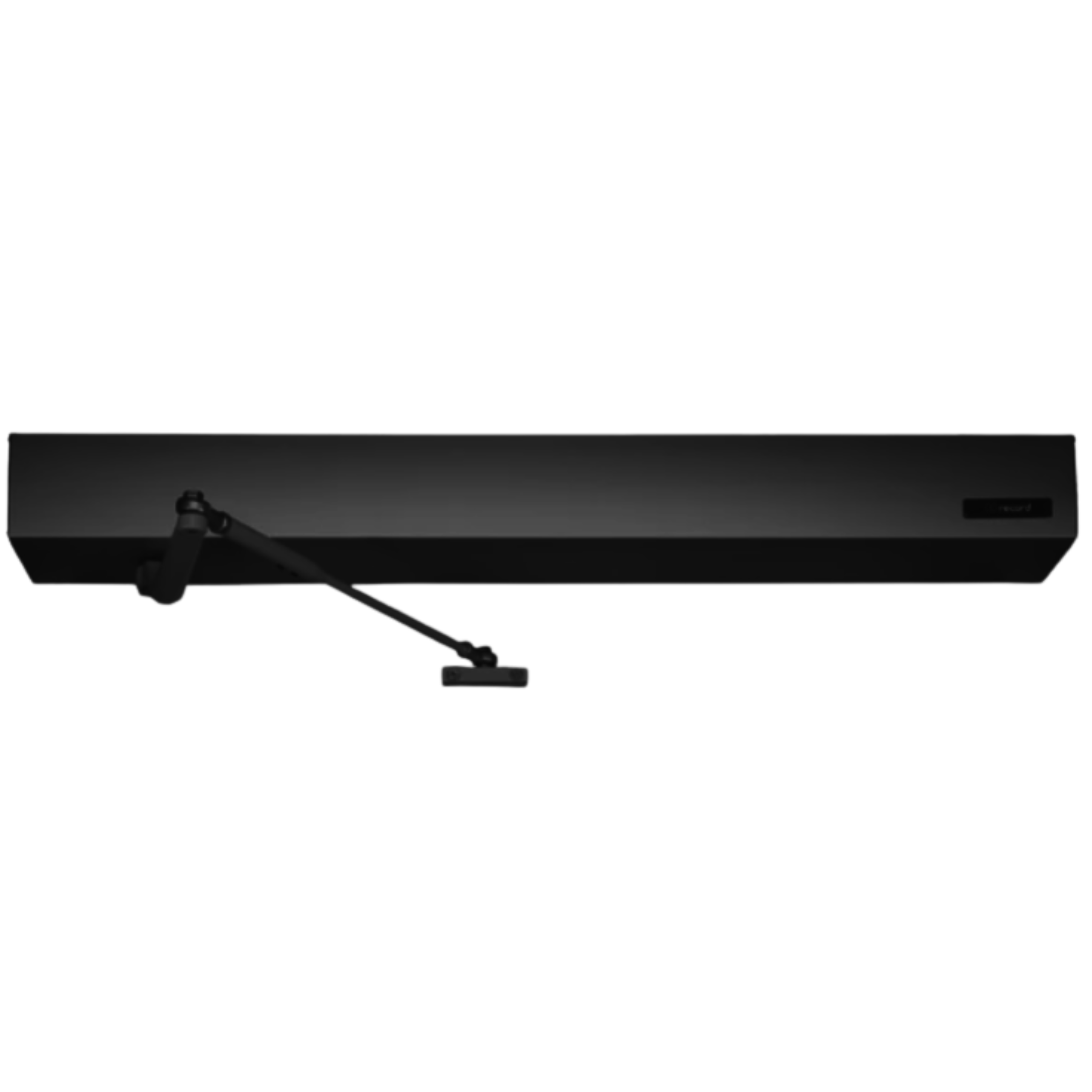

HA8-LP

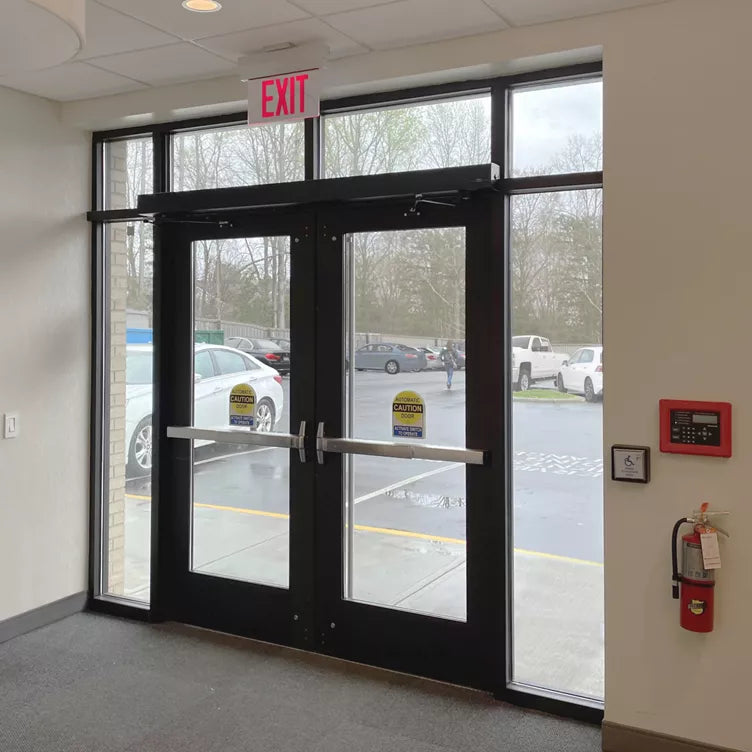

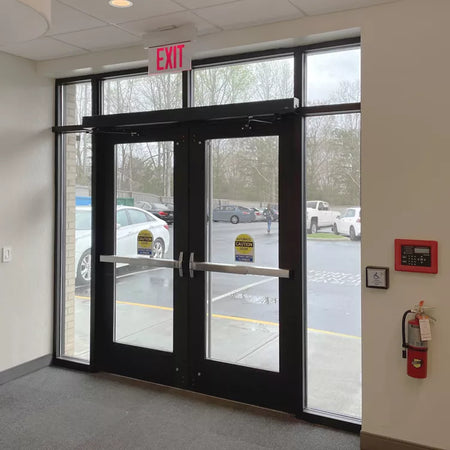

The HA8-LP low energy operator has the same power and durability of the standard profile, but with a smaller header for applications where clearance is limited. The low-profile is available as surface applied, and can be found in hospitals, retail stores, schools & universities, airports, convention centers, casinos, industrial buildings and offices.
Quality Heavy Duty Commercial Construction
- High precision gears made for sustained long-term use
- Electro Mechanical Design for simple dependable operation
- Permanent lubrication for maintenance free operation
- Machined alloy gearbox housing
- 1/8th HP motor
- Digital Control Board
Advanced Technology
- On-board programming
- Built in strike/mag lock relay - fail safe or fail secure
- Separate inputs for activation and safety devices
- Plug-n-play design for fast trouble free installation
- Compatible with safety and activation devices
- Integrates with building access & security systems
Durable
- Built to outlast the competition
- Perfect for high traffic locations
-
ADA
Low energy operators meet the requirement of the Americans with Disabilities Act (ADA). They allow for easy access for disabled individuals by using push plates or other activation devices.
-
Low Energy

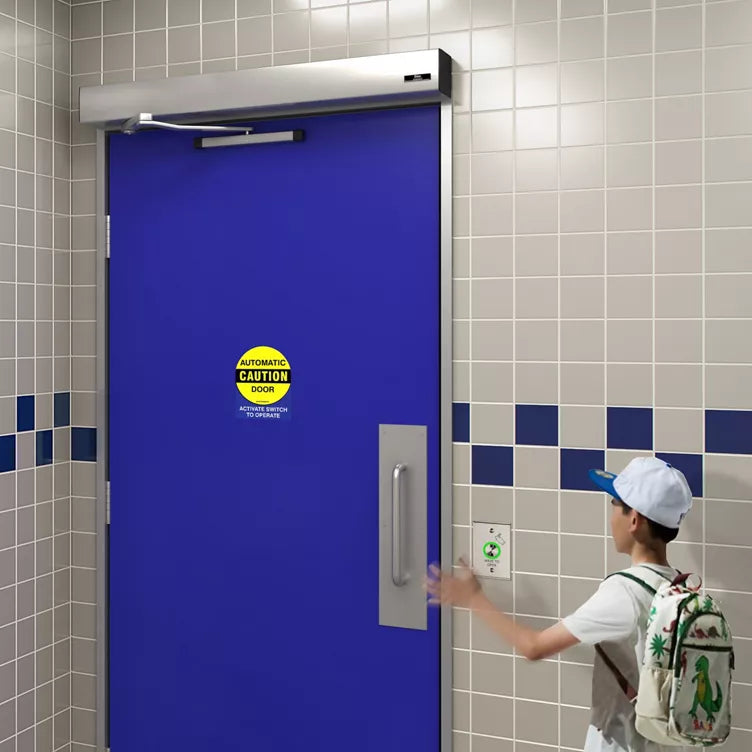

Doors equipped with low energy operators can be opened manually or through the use of a "knowing act" device (i.e., push button, remote, or wave to open).
-
Push or Pull
Can be used as push or pull.
-
Fire Rated
UL10C is the standard for positive pressure fire tests of door assemblies.
Technical specifications
- Header Profile Dimensions: 4 1/8" x 5 1/8"
- Motor: 1/8 HP
- Manual Opening/Closing Force: Adjustable 5 to 30 lbs.
- Push Reveal: Up to 14"
- Pull Reveal: Up to 5"
- Total Weight with 39" Header: 44 lbs.
- Non-Handed: Available in push or pull
Downloads
-
Product Brochure
- EZ36 Kit (2023, rev1)(PDF, 1 MB)
- Record Low Energy Overview Brochure (rev08/24)(PDF, 6 MB)
- HA8-LP Sell Sheet (rev 08/25)(PDF, 1 MB)
-
Drawings (pdf)
- Door Handing Template(PDF, 54 KB)
- HA8-LP Push (right)(PDF, 98 KB)
- HA8-LP Push (left)(PDF, 98 KB)
- HA8-LP Push (pair)(PDF, 104 KB)
- HA8-LP Pull (right)(PDF, 96 KB)
- HA8-LP Pull (left)(PDF, 96 KB)
- HA8-LP Pull (pair)(PDF, 98 KB)
- HA8-LP Dual Egress (right)(PDF, 127 KB)
- HA8-LP Dual Egress (left)(PDF, 127 KB)
- HA8-LP Push (left hand for aluminum storefronts)(PDF, 156 KB)
- HA8-LP Push (right for aluminum storefronts)(PDF, 157 KB)
-
Drawings (dwg)
- HA8-LP Push (right)(DWG, 179 KB)
- HA8-LP Push (left)(DWG, 179 KB)
- HA8-LP Push (pair)(DWG, 190 KB)
- HA8-LP Pull (right)(DWG, 178 KB)
- HA8-LP Pull (left)(DWG, 176 KB)
- HA8-LP Pull (pair)(DWG, 182 KB)
- HA8-LP Dual Egress (right)(DWG, 198 KB)
- HA8-LP Dual Egress (left)(DWG, 193 KB)
- HA8-LP Push (left for aluminum storefronts)(DWG, 1 MB)
- HA8-LP Push (right, for aluminum storefronts)(DWG, 1 MB)
-
Wiring Requirements
- HA8-LP Wiring Requirements(PDF, 83 KB)
-
Installation manual
- HA8-LP Quick Start Guide - Mechanical(PDF, 3 MB)
- HA8-LP Installation Manual (v7.0)(PDF, 10 MB)
- HA8-LP Quick Start Guide - Controls(PDF, 1 MB)
-
Replacement Parts
- HA8-LP Replacement Parts Exploded View(PDF, 516 KB)
-
Selection Guide
- HA8-LP and HA8-SP Easy Selection Guide(PDF, 430 KB)
