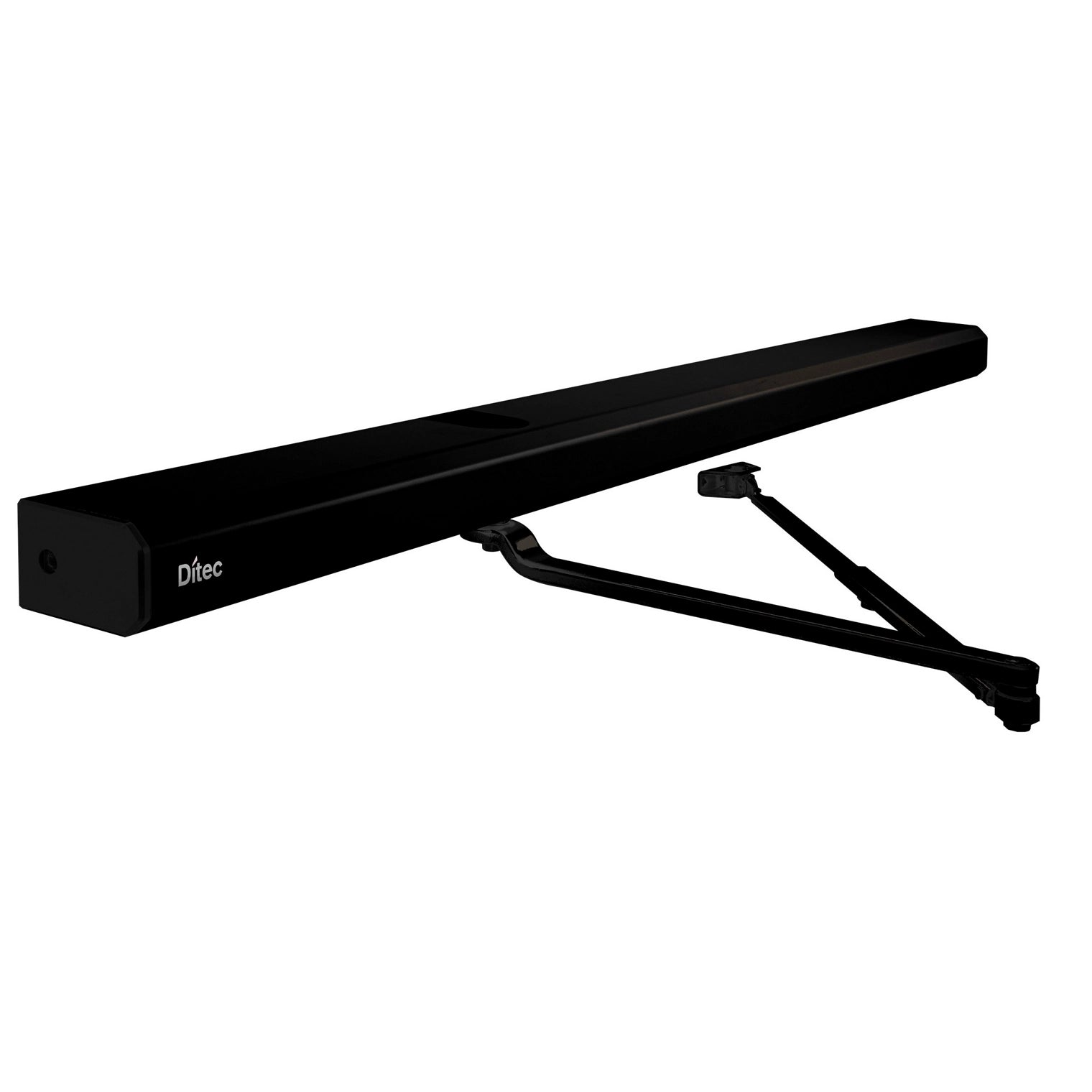

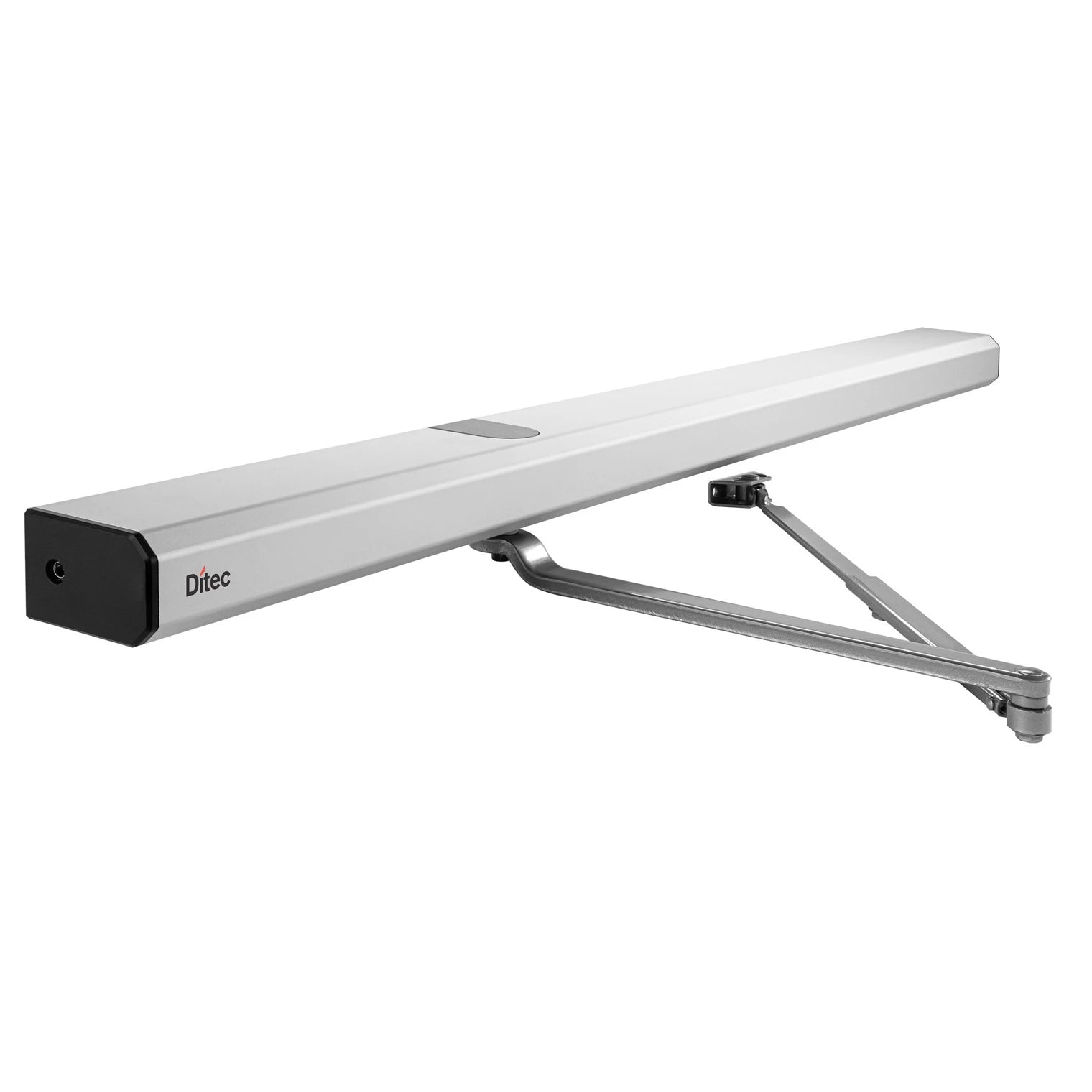

Record HA7 Slim Automatic Low Energy Door Operator With Push & Pull Arm

SKU: HA7-150
$ 1,550.00

Aesthetics and innovation combine in the HA7. The slim header blends seamlessly with most standard door frames, and fits into areas where standard operators could not.  Its quick installation and mobile app set-up make it an ideal choice for offices, restrooms and assisted living facilities.

Aesthetics

  • Slim header design blends seamlessly with door frame
  • Perfect for retrofit applications

Convenience

  • Quick Installation
  • Easy mobile app set-up
  • No electrician required; 120 vac outlet compatible

Innovative Features

  • Partial Open/Parking
  • Hold Open
  • Privacy Function/Time-Delay Cancellation
  • Ratchet (activate one to open; activate again to close)
  • Push and Go
  • Power Assist
  • Set-Up and Control with App

Built In Safety Features

  • Stop on Stall
  • Reverse on Obstruction
Technical specifications


  • Finish: Clear or Dark Bronze
  • Header Profile Dimensions: 1.85" x 3" (on HA7-100 or HA7-200 units) or 1.85" x 3.5" (on HA7-150 or HA7-250 units)

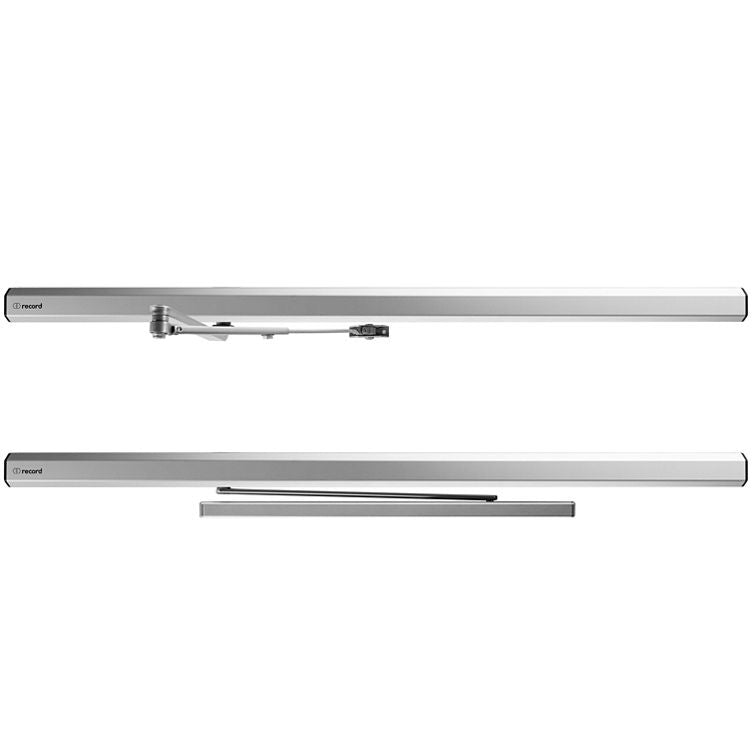

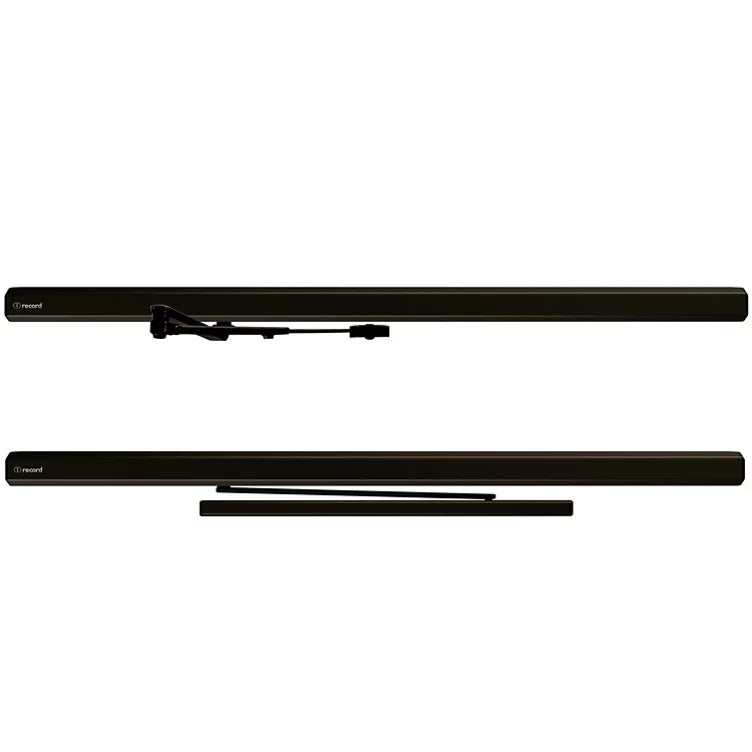

  • Arm: Push or Pull (receive both arms with every unit)
  • Door Weight (max): 200 lbs.
  • Door Width (max): 48"
  • Motor Type: Electro Mechanical
  • Manual Opening/Closing Force: Adjustable 5 to 30 lbs.
  • Operating Voltage: 120 VAC +10/-15%, 50/60 Hz
  • Auxiliary Voltage: 24 V DC, max 400 mA
  • ANSI/BHMA A156.19 Compliant: Yes
  • UL/CUL Listing for UL 325/UL 10C: Yes
