Aesthetics and innovation combine in the HA7. The slim header blends seamlessly with most standard door frames, and fits into areas where standard operators could not. Its quick installation and mobile app set-up make it an ideal choice for offices, restrooms and assisted living facilities.
Aesthetics
- Slim header design blends seamlessly with door frame
- Perfect for retrofit applications
Convenience
- Quick Installation
- Easy mobile app set-up
- No electrician required; 120 vac outlet compatible
Innovative Features
- Partial Open/Parking
- Hold Open
- Privacy Function/Time-Delay Cancellation
- Ratchet (activate one to open; activate again to close)
- Push and Go
- Power Assist
- Set-Up and Control with App
Built In Safety Features
- Stop on Stall
- Reverse on Obstruction
Technical specifications

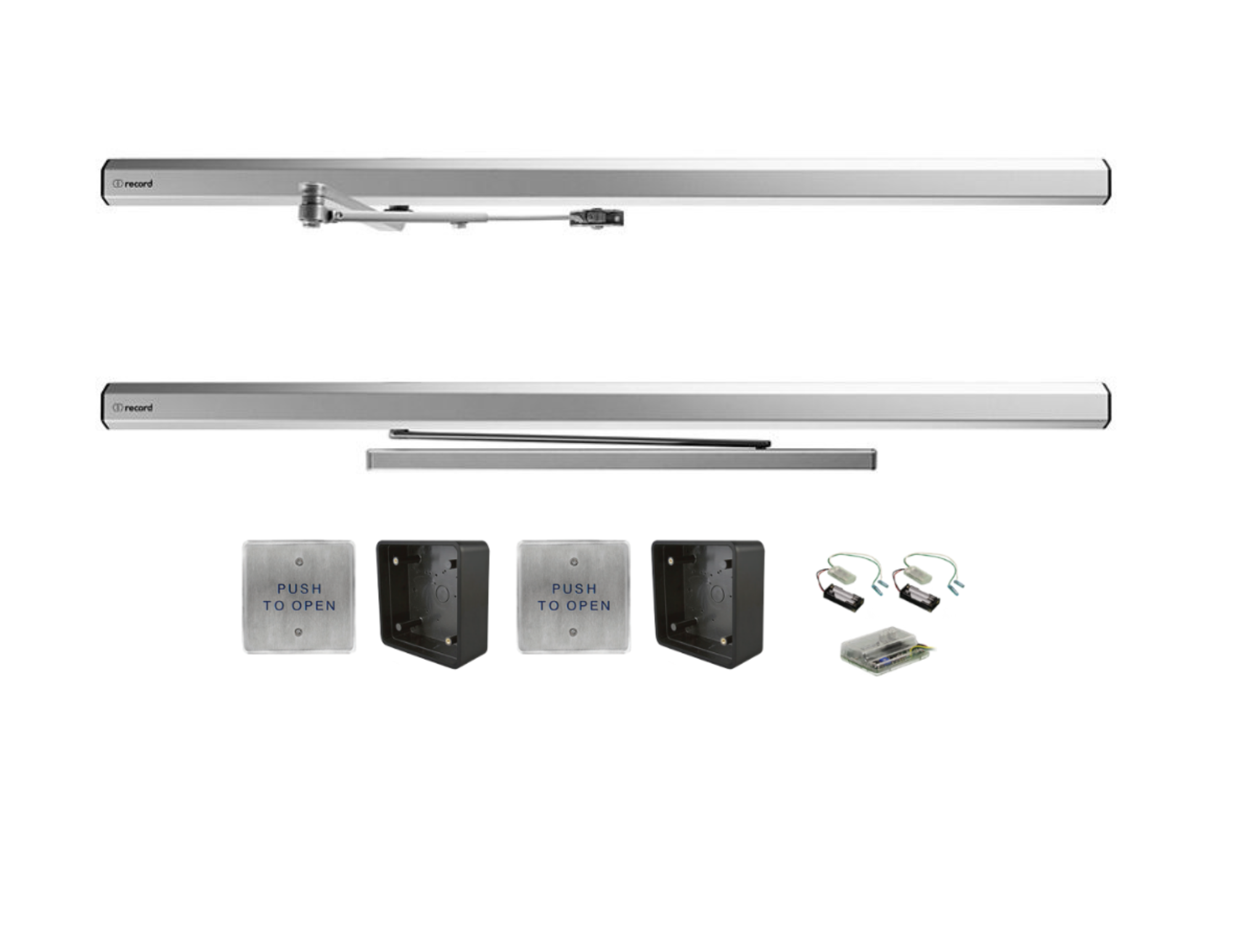

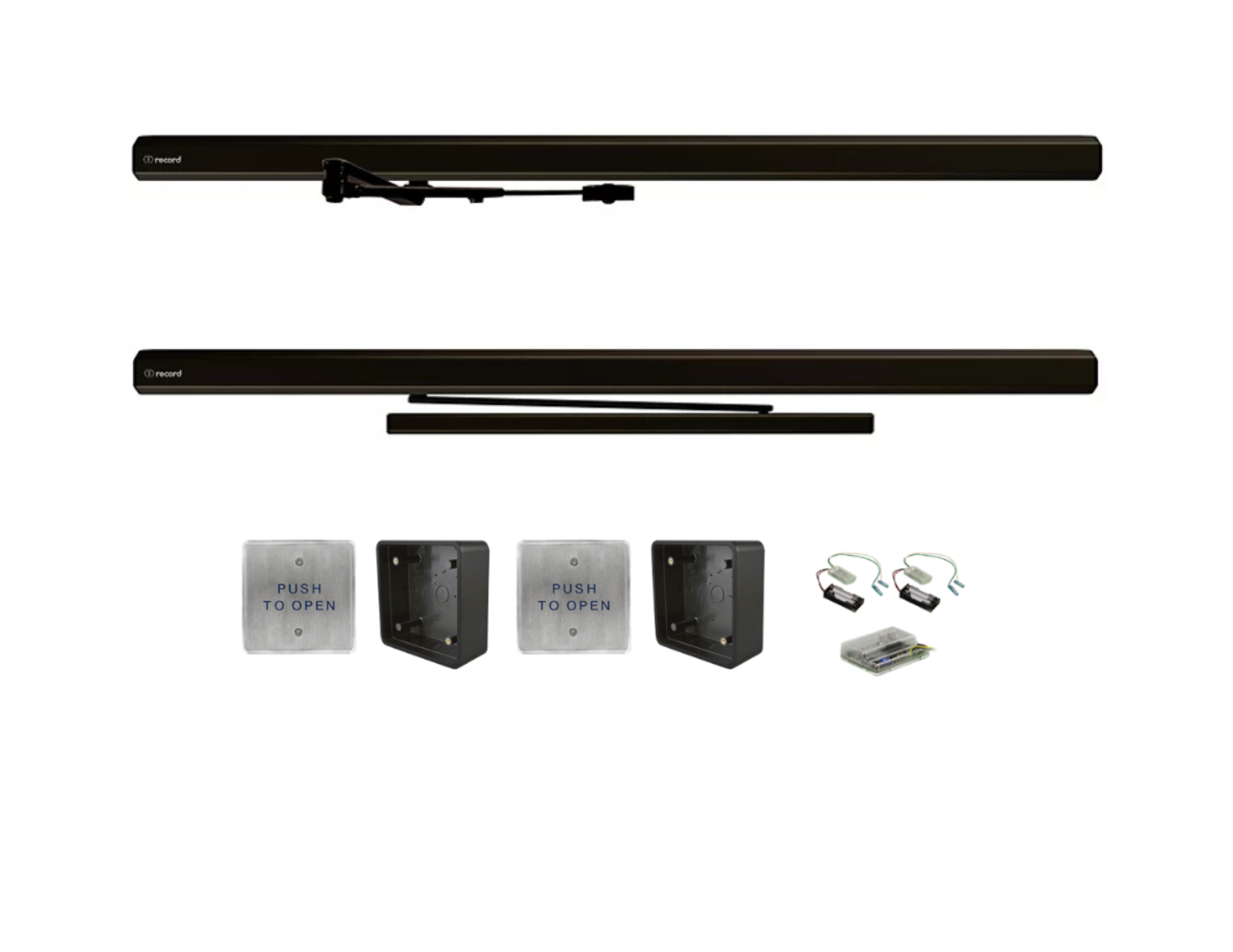

- Finish: Clear or Dark Bronze
- Header Profile Dimensions: 1.85" x 3" (on HA7-100 or HA7-200 units) or 1.85" x 3.5" (on HA7-150 or HA7-250 units)
- Arm: Push or Pull (receive both arms with every unit)
- Door Weight (max): 200 lbs.
- Door Width (max): 48"
- Motor Type: Electro Mechanical
- Manual Opening/Closing Force: Adjustable 5 to 30 lbs.
- Operating Voltage: 120 VAC +10/-15%, 50/60 Hz
- Auxiliary Voltage: 24 V DC, max 400 mA
- ANSI/BHMA A156.19 Compliant: Yes
- UL/CUL Listing for UL 325/UL 10C: Yes
Downloads
-
Product Brochure
- Record Low Energy Overview Brochure (rev08/24)(PDF, 6 MB)
- Record HA7 Sell Sheet (rev 09/25)(PDF, 967 KB)
-
Drawings (pdf)
- HA7-100 or HA7-200 (push, single)(PDF, 105 KB)
- HA7-100 or HA7-200 (pull, single)(PDF, 93 KB)
- HA7 Wiring Accessories(PDF, 146 KB)
- HA7-150 or HA7-250 (push, single)(PDF, 100 KB)
- HA7-150 or HA7-250 (pull, single)(PDF, 88 KB)
- HA7 Electrical Connections (pull)(PDF, 269 KB)
- HA7 Electrical Connections (push)(PDF, 261 KB)
- HA7 Plug-In Power Supply Kit(PDF, 42 KB)
-
Drawings (dwg)
- HA7-100 or HA7-200 (push, single)(DWG, 397 KB)
- HA7-100 or HA7-200 (pull, single)(DWG, 359 KB)
- HA7 Plug-In Power Supply Kit(DWG, 273 KB)
- HA7-150 or HA7-250 (pull, single)(DWG, 361 KB)
- HA7 Electrical Connections (push)(DWG, 764 KB)
- HA7-150 or HA7-250 (push, single)(DWG, 676 KB)
- HA7 Electrical Connections (pull)(DWG, 776 KB)
-
BIM Objects
- HA7(RFA, 1 MB)
-
Install Manuals
- HA7 Owner's Manual (for HA7-100 or HA7-200 units)(PDF, 1 MB)
- HA7 Installation & Service Manual (for HA7-100 or HA7-200 units)(PDF, 5 MB)
- HA7 Quick Start Guide (for HA7-100 or HA7-200 units)(PDF, 27 MB)
- HA7 Quick Start Guide (for HA7-150 or HA7-250 units)(PDF, 5 MB)
- HA7 Installation & Service Manual (for HA7-150 or HA7-250 units)(PDF, 12 MB)
- HA7 Owner's Manual (for HA7-150 or HA7-250 units)(PDF, 2 MB)
-
Replacement Parts
- HA7 Replacement Parts Exploded View(PDF, 573 KB)
