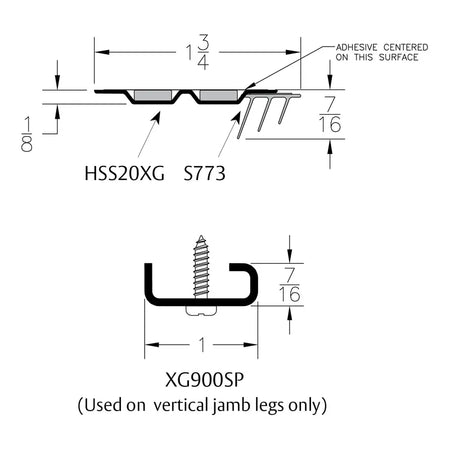

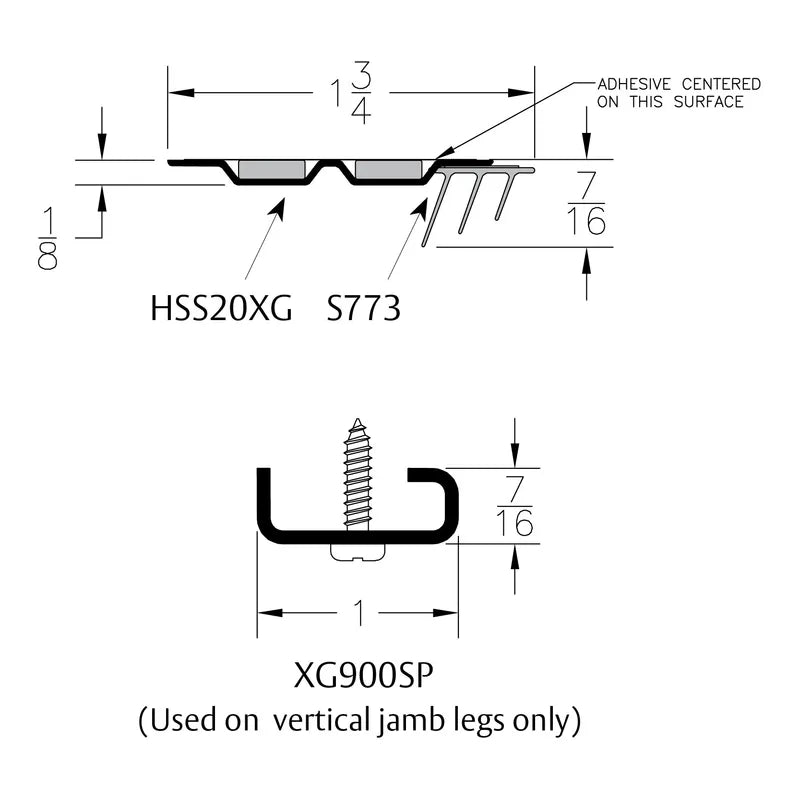

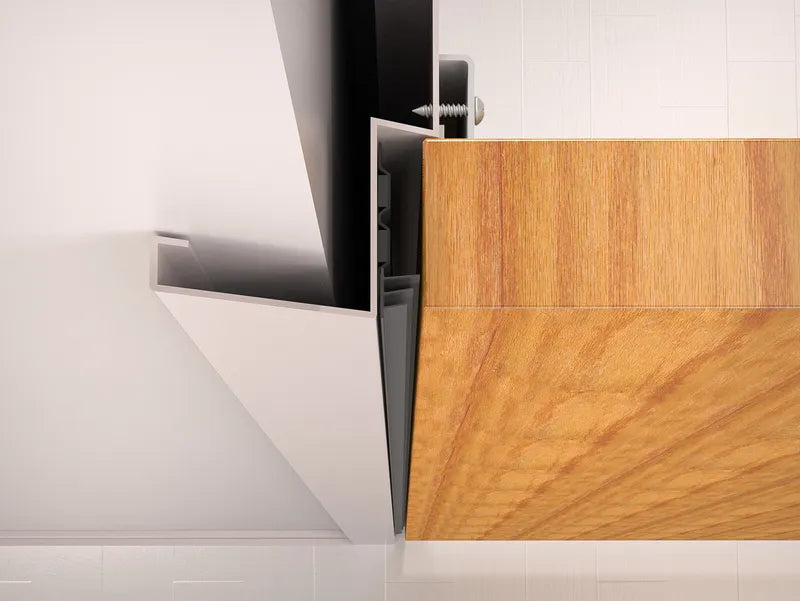

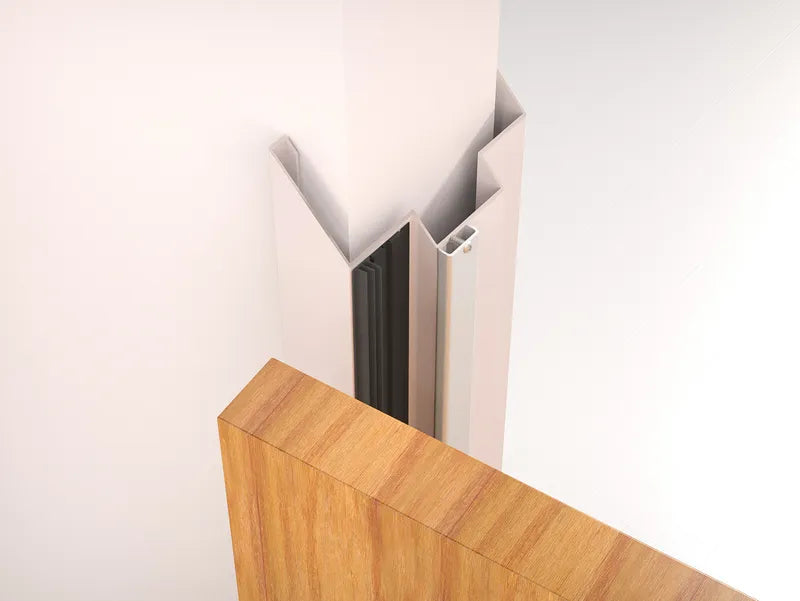

The XG90KIT consists of the HSS20XGxS773 Combination Intumescent and Silicone Gasket and the XG900SP Stop Extender. This kit is UL classified for 90 minutes and brings fire-rated doors with excessive vertical and head gaps back into spec. Please see the Tech Data Sheet section at the bottom of this page for a note about galvannealed finishes.
Features
-
HSS20XG is a PVC-encased, high-performing intumescent with adhesive backing
-
S773 is a triple-fin, high-temperature, silicone fire gasket with adhesive backing
-

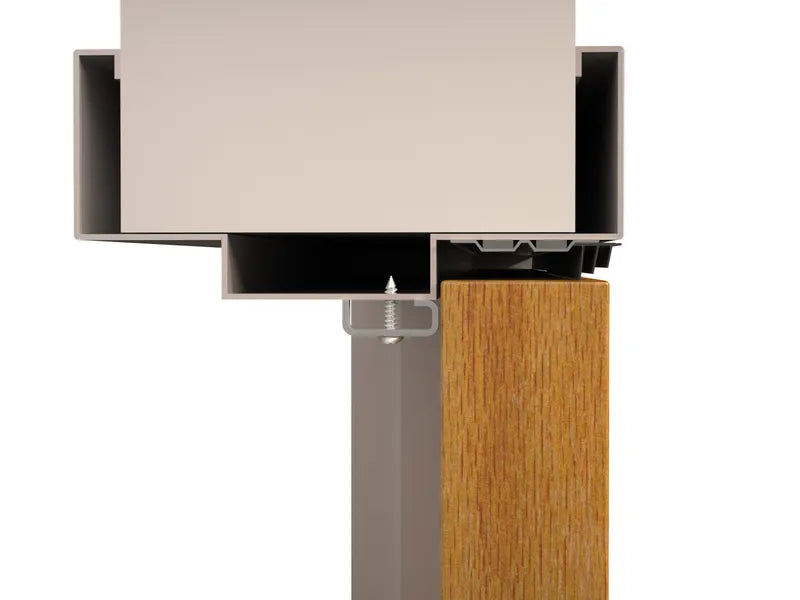

XG900SP Stop Extender is used on vertical jamb legs only. It is only packaged in kits with an 84-inch designation (_84, _3684, _4884)
-
UL Classified for use on openings with gaps in excess of those outlined in NFPA 80
-
Rated up to 90-minutes and suitable for use on steel composite, hollow metal doors, wood, and plastic-covered composite core doors
-
Required to be used on openings with vertical gaps greater than 1/8” and up to 3/8”
Specifications
-
Base Material: Galvannealed steel
-
Fasteners: PHSMS #6 x 5/8"
-
Gasketing Material: Intumescent, Silicone
-
Height: 219/500"
-
Minimum Length: 3'
-
Mounting Location: Side of Frame
-
Mounting Type: Screw applied
-
Overall Height: 219/500"
-
Profile Height: 7/16"
-
Weight: 0.65 lbs
Certifications
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
