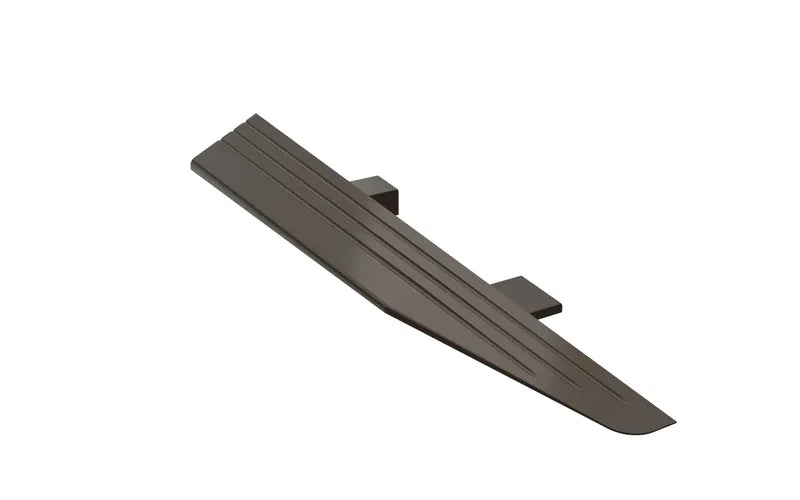

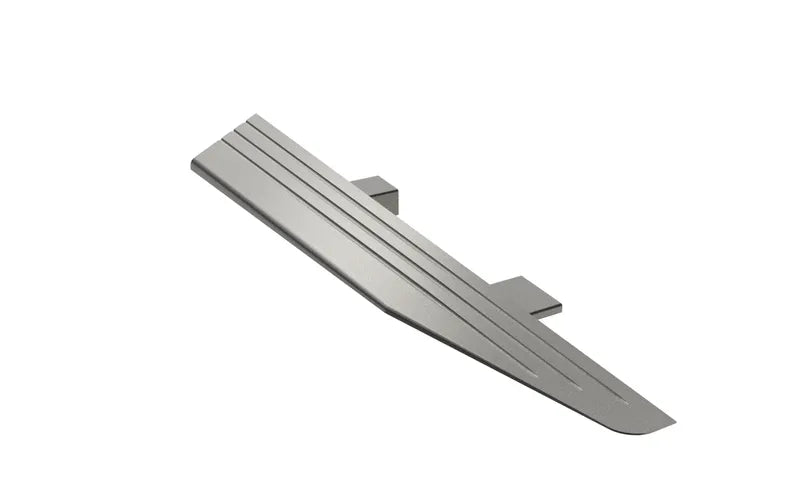

The WING16 Series Miter Returns are 16" wide cast aluminum "wings" designed to fit into the end of a modular ramp threshold assembly. They provide a neat and tight-fitting solution, replacing traditional mitering methods. Please note that these miter returns are not ADA-compliant. They are available in left-hand (WING16LH) and right-hand (WING16RH) options. These miter returns are BHMA certified and fire rated for positive pressure.
Features
-
For modular ramp thresholds
-
Wings fit into each end of modular ramp threshold assembly, and are fastened to ramp mid sections with self-tapping machine screws
-
Optional PemKote available
-
Cast aluminum
-
Match-drilled
-
Not ADA-compliant
-
Handed from the low end and are determined by which side of ramp it fits into
-
Can be trimmed to fit ramp assembly
Benefits
-
Closes off ends of ramps up to 1-1/4"
-
Neat, tight-fitting, and compact design
-
Replaces traditional mitering methods

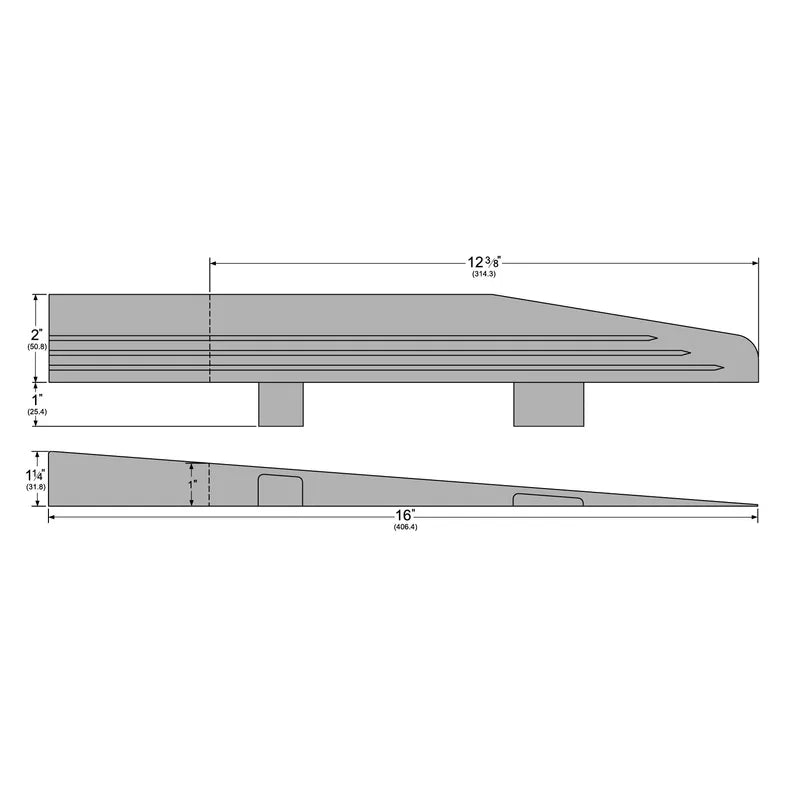

Specifications
-
Base Material: Aluminum
-
Maximum Length: 16"
-
Weight: 1.5 lbs
-
Width: 2"
Certifications
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
ANSI/BHMA A117.1
