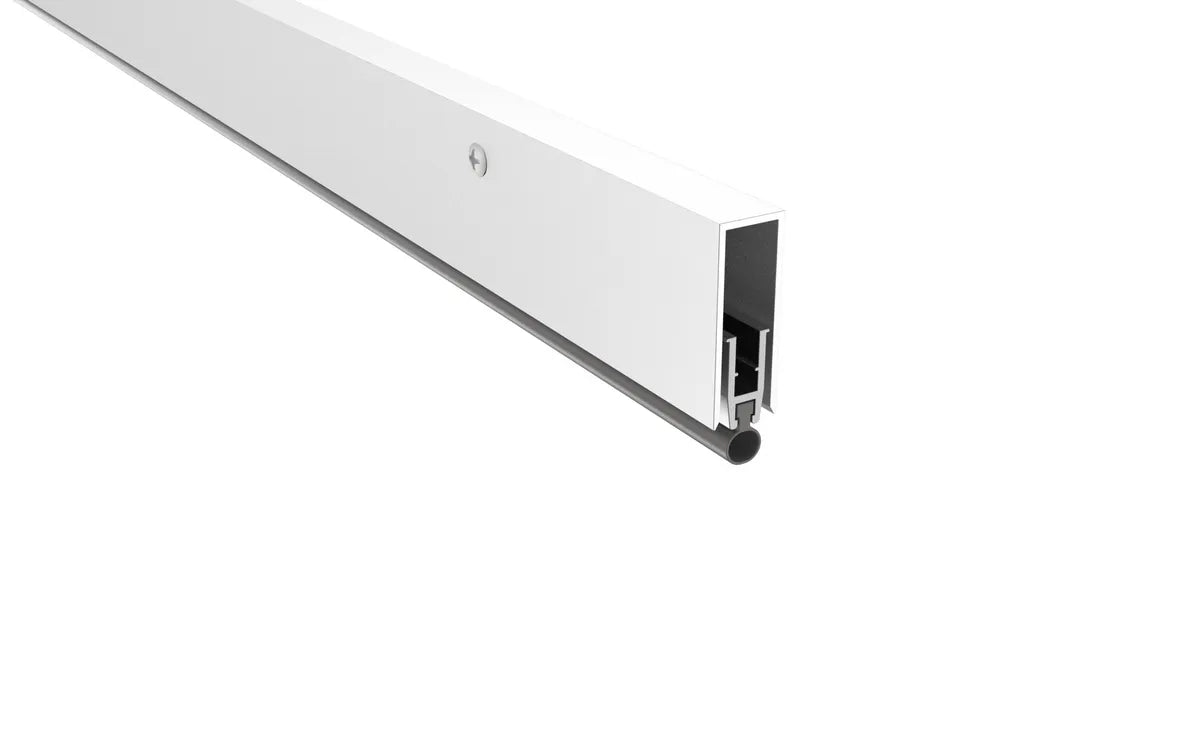

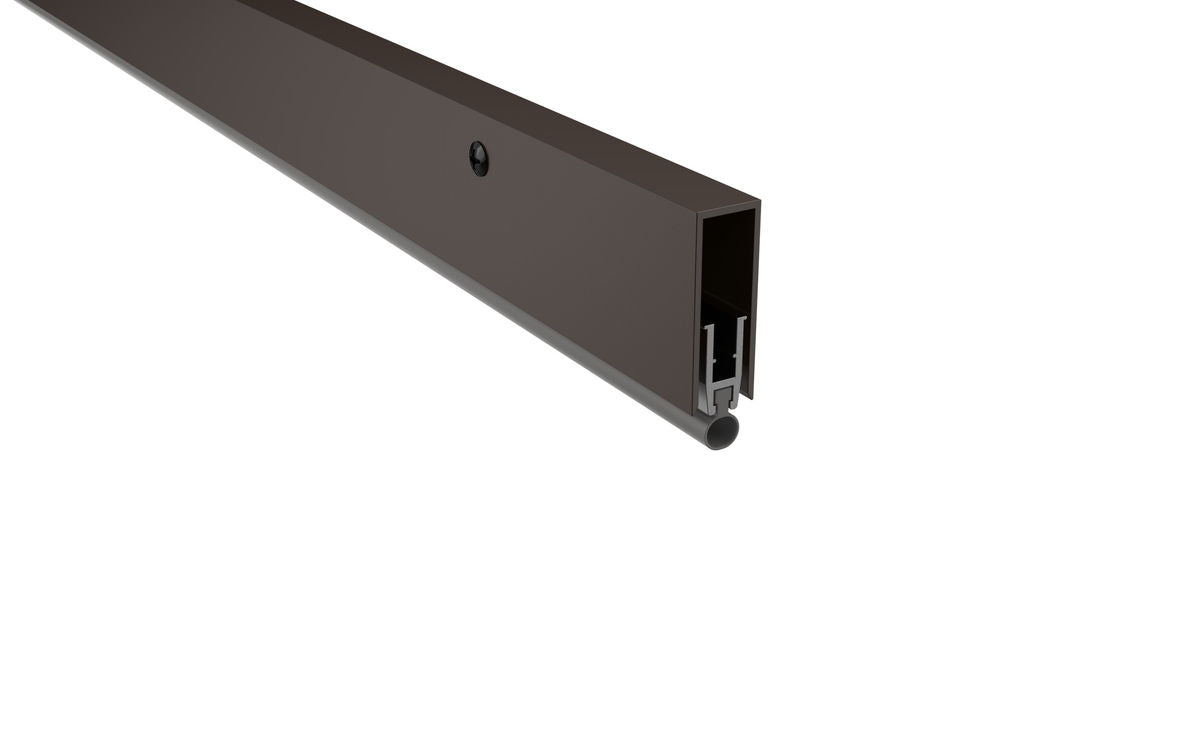

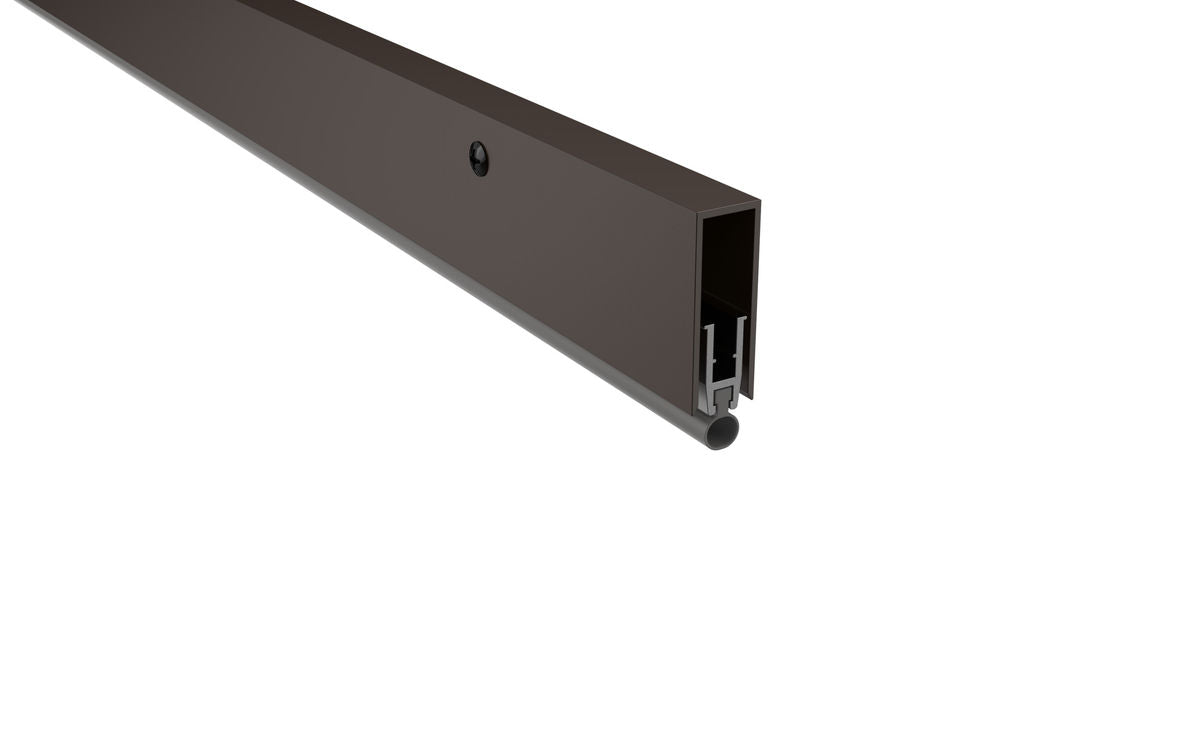

Ideal for residential doors, the SA Series Light Duty Surface or Semi-Mortise Automatic Door Bottom is designed to prevent dust, drafts, light, and water seepage. It features a vinyl bulb seal that lowers up to .5" when the door is closed. This product can be easily trimmed in the field. The Eco-V Vinyl Seal complies with UL Green Guard Gold standards.
Features
-
Residential Automatic door bottom
-
Surface type for wood doors
-
1/2" maximum drop
-
Can be trimmed down as much as 2"
-
Non-handed
-
End plates not provided
-
Available in 28" (SA1), 32" (SA2), 36" (SA3) and 42" (SA4) only
Benefits
-
For lightweight residential use
-
Helps to out draft, dust, moisture, insects, fumes, light, and sound
Specifications
-
Base Material: Aluminum
-
Fasteners: THSMS #8 x 1 1/4"
-
Minimum Length: 12"
-
Overall Height: 1 3/8"
-
Width: 1/2"
