PEMKO S88 Series

SKU: S88BL17
$ 20.49

The S88 Adhesive Perimeter Gasket compresses to seal up to a 1/16" gap and is available with perforations for behavioral health applications.

Features

  • Seal begins compressing at 1/4", compresses to seal up to a 1/16" gap

  • SiliconSeal is extruded from high-temperature silicone; effective between -58°F and 450°F

  • Meets FAR 25.853 Airworthiness Standards for Compartment Interiors

  • Smoke tested in accordance with UBC 7-2 and UL 1784-01; meets the requirements of NFPA 105

  • Air infiltration tested in accordance with ASTM E-283-04. Air infiltration is only .09 CFM / ft of crack.

  • Limited shelf life - product must be used within 6 months of purchase and must be stored between 50 degrees (F) and 100 degrees (F)

  • Category G - Edge-Sealing Systems - systems that are surface applied to frames or doors and required for Category B doors

  • Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes without hose stream

  • Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes

Benefits

  • Self-extinguishing, non-toxic and unaffected by sunlight, ozone and ultraviolet rays.

  • Impervious to fungus and mildew; will not deteriorate under normal exposure

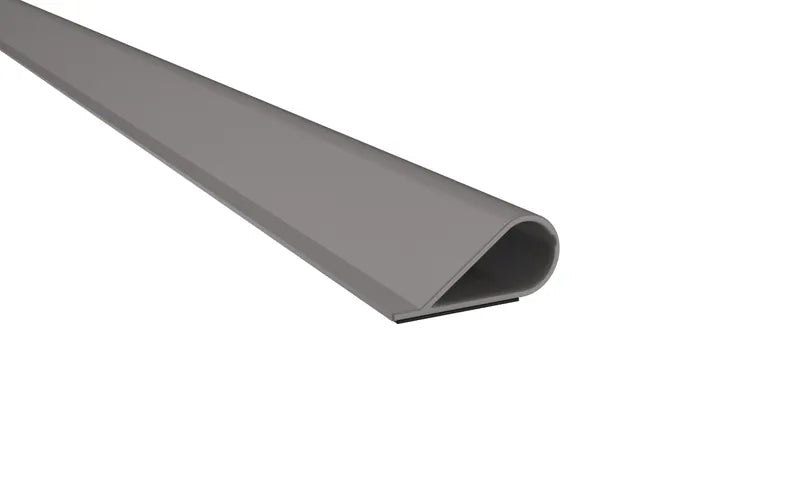

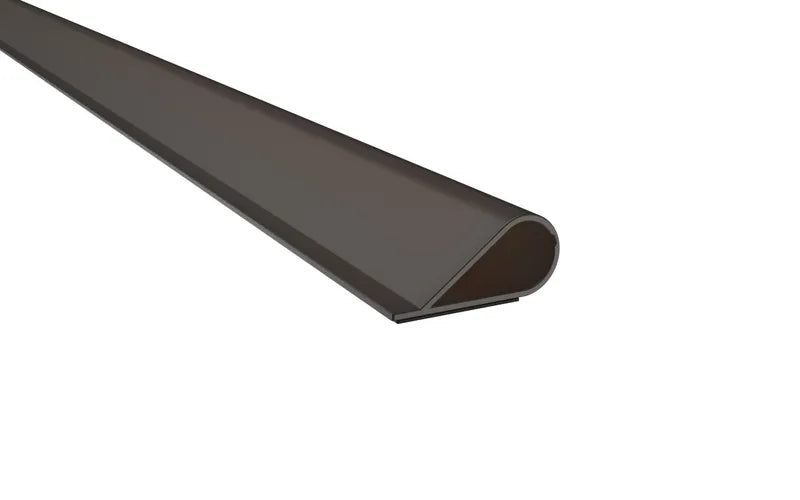

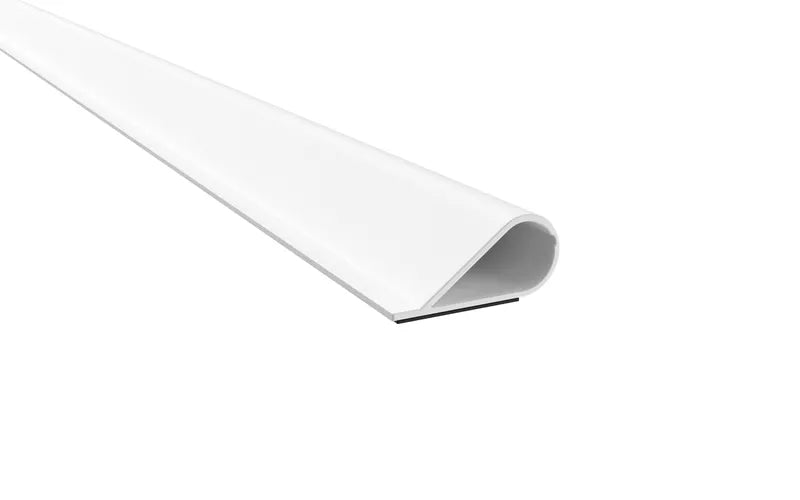

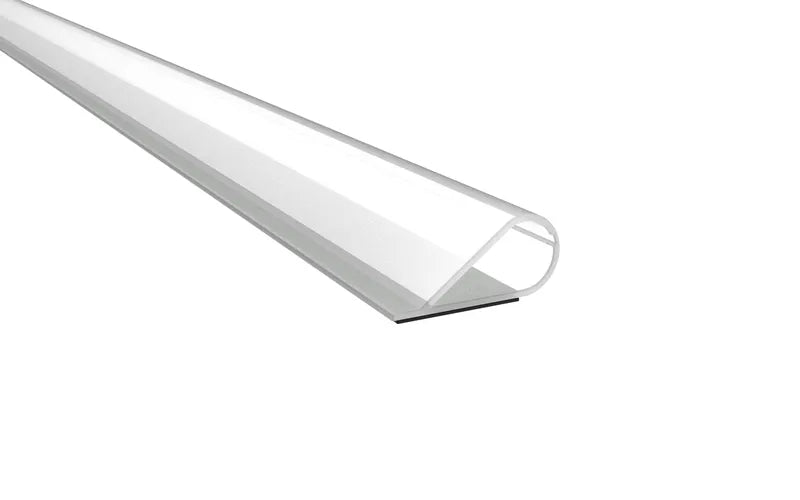

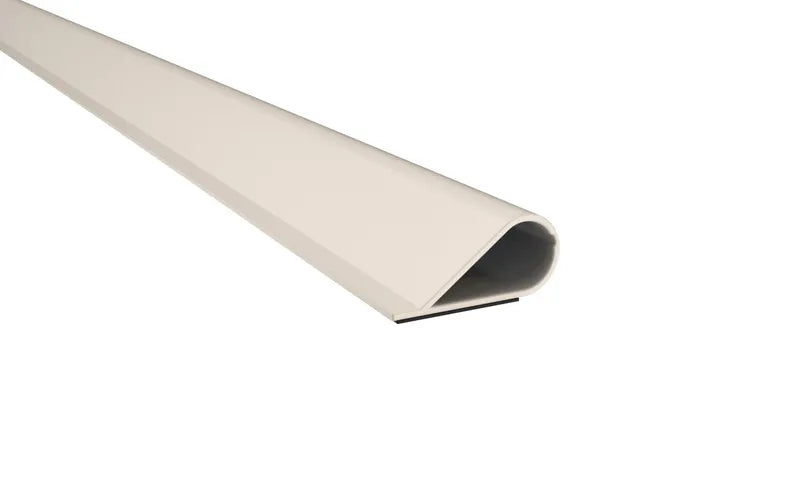

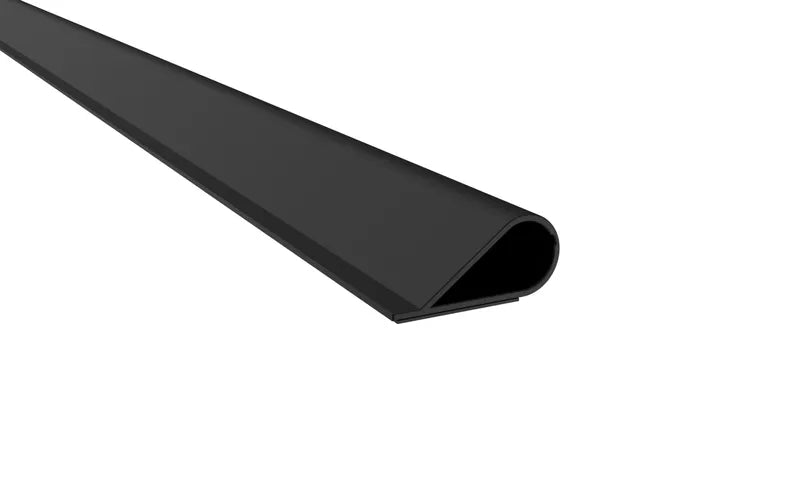

  • Available in six seal material colors: clear, gray, tan, dark brown, black and white

Specifications


  • Gasketing Material: Silicone

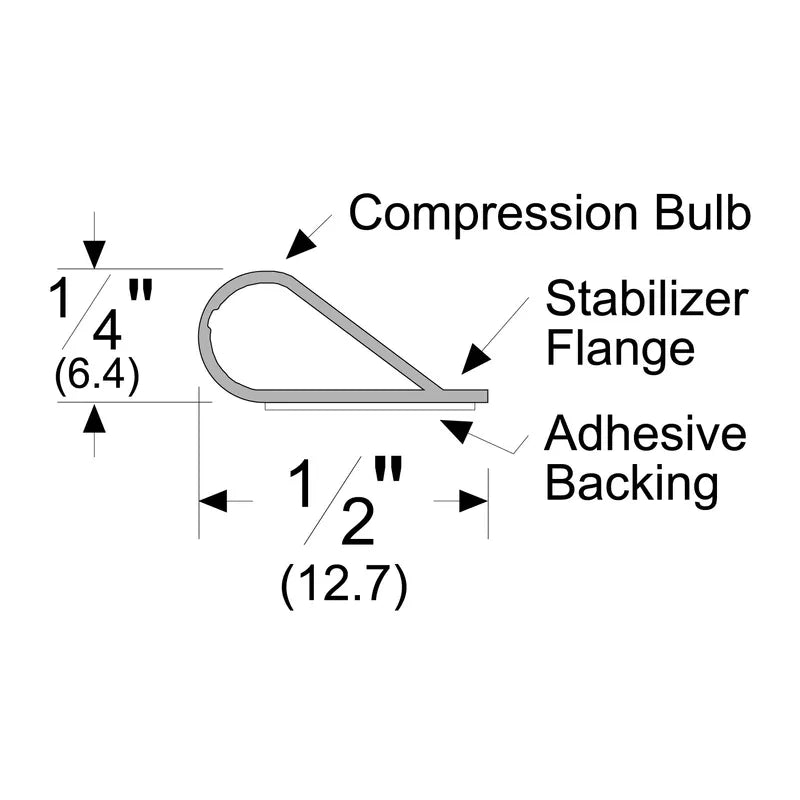

  • Height: 1/4"

  • Maximum Length: 510'

  • Minimum Length: 17'

  • Mounting Location: Side of Frame

  • Mounting Type: Self-adhesive

  • Weight: 0.03 lbs

  • Width: 1/2"

Certifications

  • GREENGUARD Gold Certified

  • UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives

  • Environmental Product Declaration (EPD)

  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies

  • ASTM E-283-04 (2012)

  • ASTM E 90-2009

  • ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems

Options

  • P - Perforated
