The S77 Adhesive Perimeter Gasket is designed for hollow metal and wood meeting stile applications, compressing to seal up to a 1/16" gap.
Features
-
Designed for hollow metal and wood meeting stile applications
-

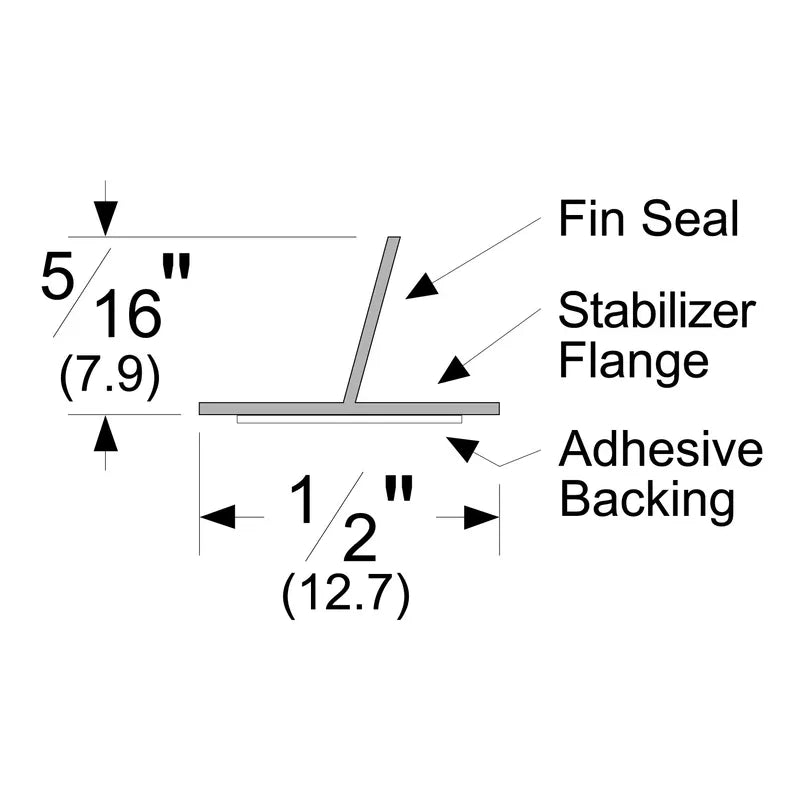

Seal begins compressing at 5/16", compresses to seal up to a 1/16" gap
-
SiliconSeal is extruded from high-temperature silicone; effective between -58°F and 450°F
-
Meets FAR 25.853 Airworthiness Standards for Compartment Interiors
-
Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes without hose stream
-
Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes
Benefits
-
Self-extinguishing, non-toxic, and unaffected by sunlight, ozone and ultraviolet rays
-
Impervious to fungus and mildew, will not deteriorate under normal exposure
-
Smoke tested in accordance with UBC 7-2 and UL 1784-01; meets the requirements of NFPA 105
-
S44, S77 and S88 are air infiltration tested in accordance with ASTM E-283-04. Air infiltration is only .09 CFM / ft of crack.
-

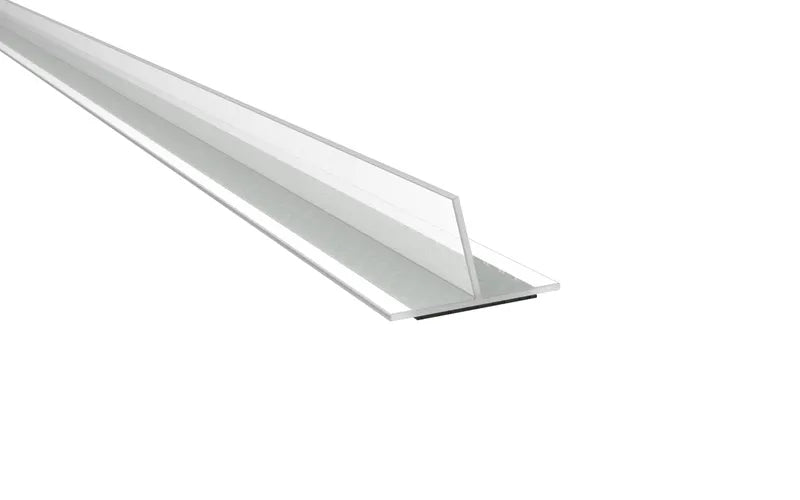

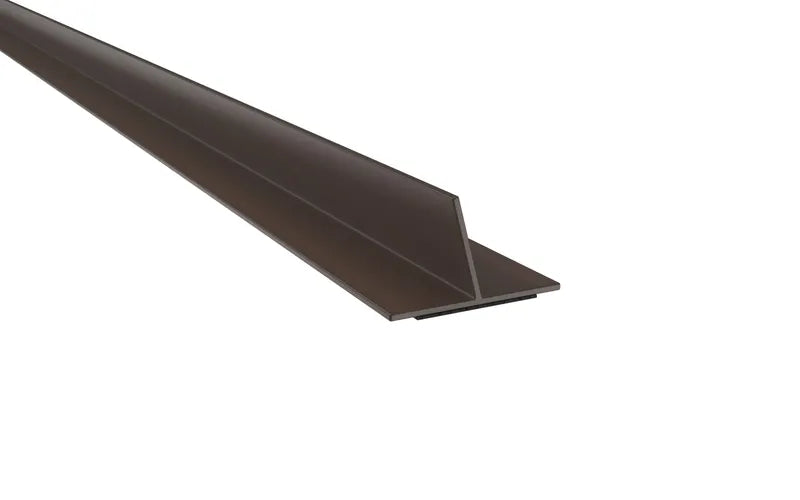

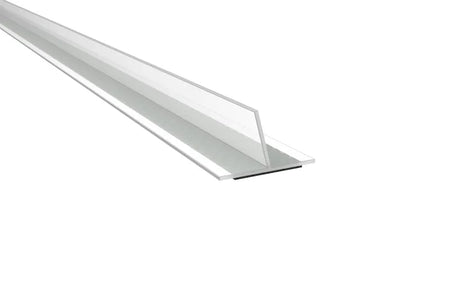

Available in three seal material colors: clear, dark brown and black
Specifications
-
Gasketing Material: Silicone
-
Height: 313/1000"
-
Maximum Length: 500'
-
Minimum Length: 17'
-
Mounting Location: Side of Frame
-
Mounting Type: Self-adhesive
-
Width: 1/2"
Certifications
-
GREENGUARD Gold Certified
-
UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
-
Environmental Product Declaration (EPD)
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
ASTM E-283-04 (2012)
-
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
