The S442 Adhesive Perimeter Gasket fits flush into corner and compresses to seal up to a 1/16" gap.
Features
-
High temperature silicone - seals against smoke, fire, air, sound, and weather
-
Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes
-
Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes without hose stream
-
S442 is available in 17, 18, 20, 21, 25,30 and 510 ft. coils
Benefits
-
Self-extinguishing and non toxic
-
Long-lasting commercial grade door seal
-
Unaffected by sunlight, ozone, and ultraviolet rays
-
Impervious to fungus and mildew
-

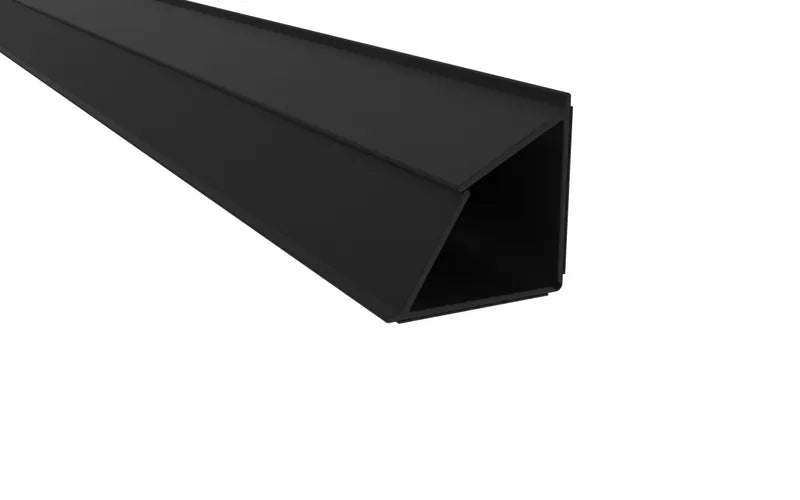

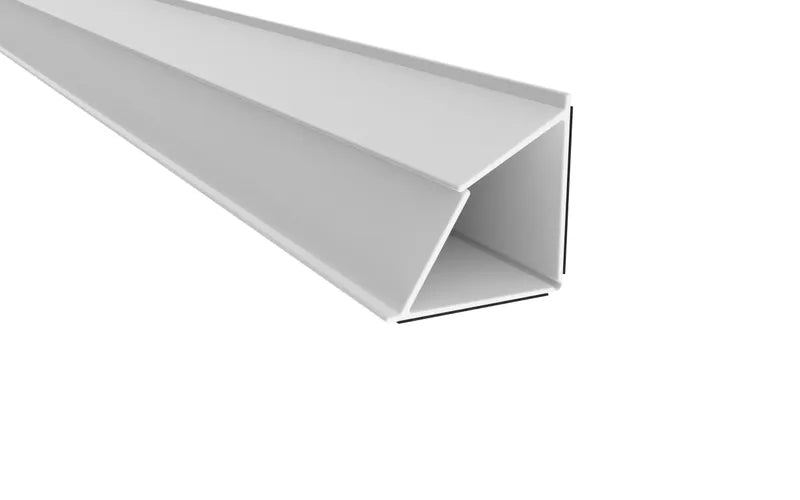

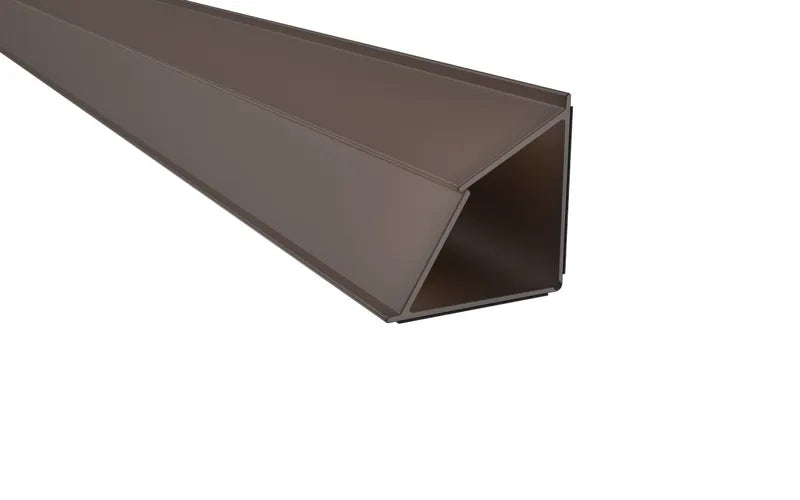

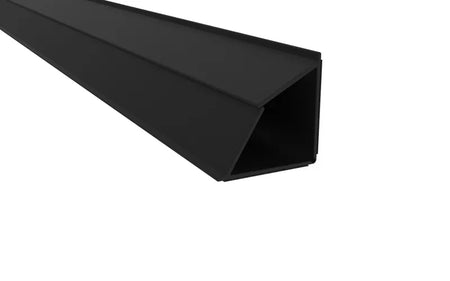

Available in three seal material colors: dark brown, black and white

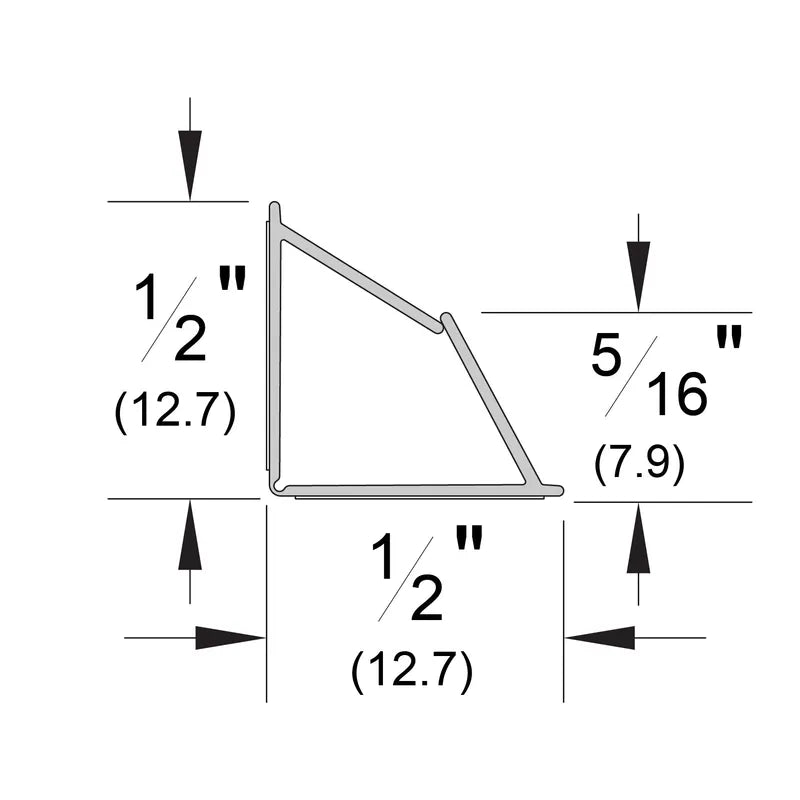

Specifications
-
Gasketing Material: Silicone
-
Height: 1/2"
-
Maximum Length: 510'
-
Minimum Length: 17'
-
Mounting Location: Side of Frame
-
Mounting Type: Self-adhesive
-
Weight: 0.04 lbs
-
Width: 1/2"
Certifications
-
GREENGUARD Gold Certified
-
UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
-
Environmental Product Declaration (EPD)
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
ASTM E-283-04 (2012)
-
ASTM E 90-2009
-
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
