PEMKO S44 Series

SKU: S44BL17
$ 19.73

The S44 Silicone Adhesive Perimeter Gasket is a high-performance sealing solution designed for tighter frames, exhibiting an exceptionally low closing force. Extruded from high-temperature silicone, it compresses to seal gaps as small as 1/16", and with availability in various coil lengths, it meets stringent airworthiness standards, is resistant to extreme temperatures, and complies with fire safety and smoke control regulations, making it an ideal choice for a variety of door applications.

Features

  • Designed for tighter frames

  • Demonstrates extremely low closing force

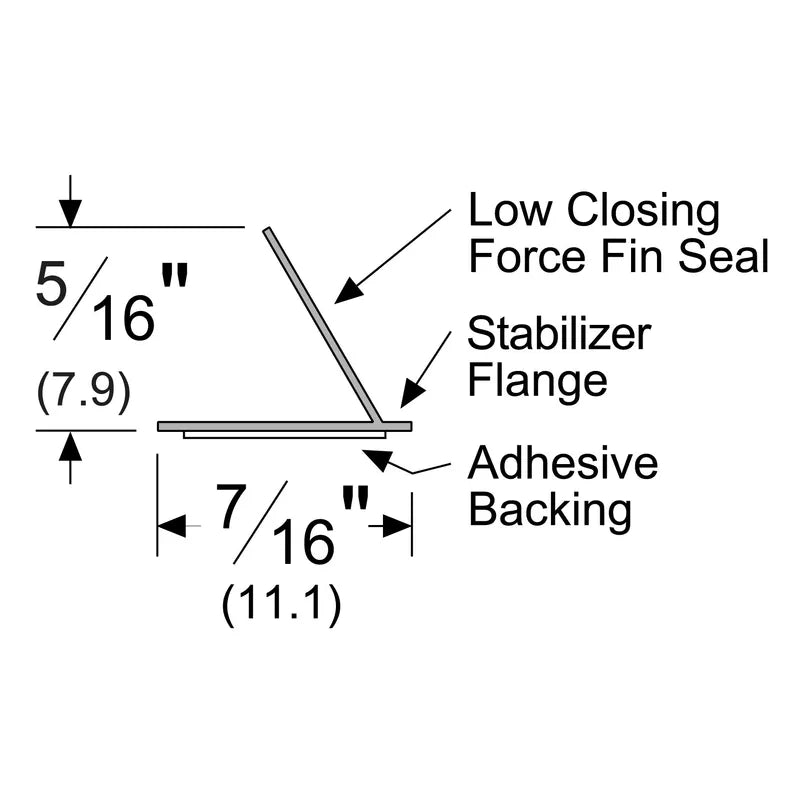

  • Seal begins compressing at 5/16", compresses to seal up to a 1/16" gap

  • Extruded from high-temperature silicone; effective between -58°F and 450°F

  • Available in 17, 18, 20, 21, 25 and 510 ft. coils

  • Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes without hose stream

  • Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes

Benefits

  • Self-extinguishing and non-toxic. Unaffected by sunlight, ozone and ultraviolet rays

  • Impervious to fungus and mildew; will not deteriorate under normal exposure

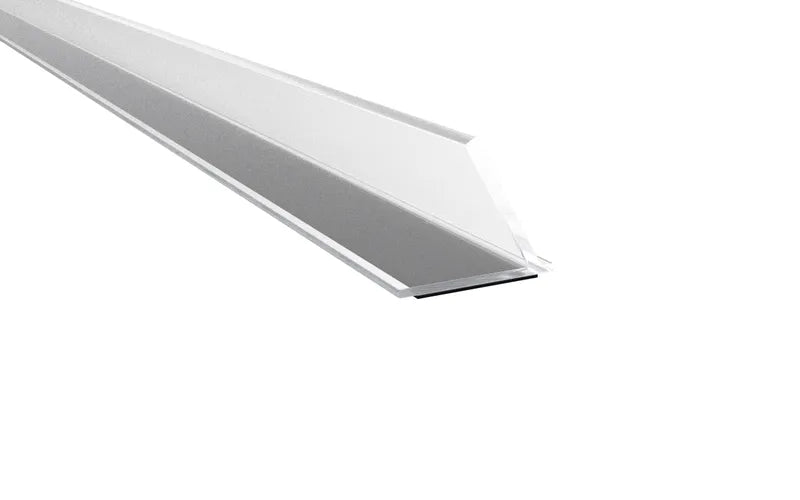

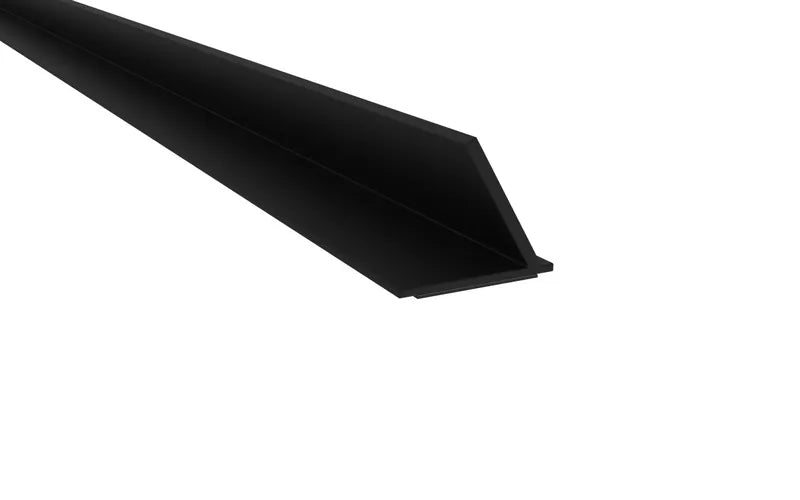

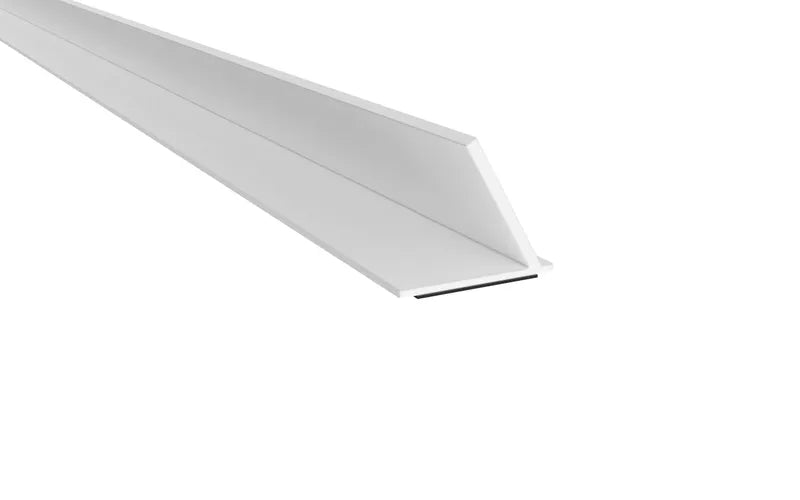

  • Available in five seal material colors: clear, gray, dark brown, black and white

Specifications


  • Gasketing Material: Silicone

  • Height: 313/1000"

  • Maximum Length: 510'

  • Minimum Length: 17'

  • Mounting Location: Side of Frame

  • Mounting Type: Self-adhesive

  • Weight: 0.03 lbs

  • Width: 219/500"

Certifications

  • GREENGUARD Gold Certified

  • UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives

  • Environmental Product Declaration (EPD)

  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies

  • ASTM E-283-04 (2012)

  • ASTM E 90-2009

  • ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
