Pemko PK55 Fire-Rated Adhesive Perimeter Gasketing with UL1784-01 Smoke Seal Compliance

SKU: PK55BL17
$ 22.00

The 1/2" wide PK55 PemkoPrene® Adhesive Perimeter Gasket demonstrates extremely low closing force and is designed for tighter frames.

Features

  • Stays flexible between -40 degrees (F) and 250 degrees (F) with very high resistance to flex fatigue.

  • Outstanding ozone resistance rating.

  • Smoke tested in accordance with UL1784-01; meets the requirements of NFPA 105

  • Designed for tighter frames

  • Demonstrates extremely low closing force

  • Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes without hose stream

  • Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes

Benefits

  • Excellent resistance to compression set, particularly at elevated temperatures and for extended periods of time

  • Available in three seal material colors: dark brown, black and white

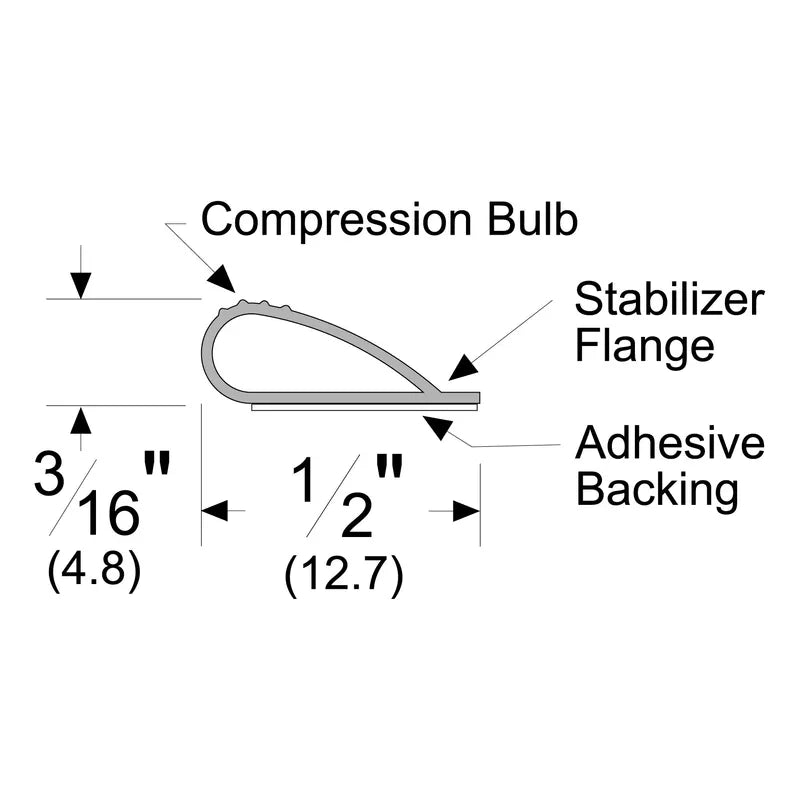

Specifications


  • Base Material: Thermoplastic

  • Gasketing Material: PemkoPrene

  • Height: 47/250"

  • Maximum Length: 510'

  • Minimum Length: 6'

  • Mounting Location: Side of Frame

  • Mounting Type: Self-adhesive

  • Weight: 0.03 lbs

  • Width: 1/2"

Certifications

  • GREENGUARD Gold Certified

  • UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives

  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies

  • ASTM E-283-04 (2012)

  • ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
