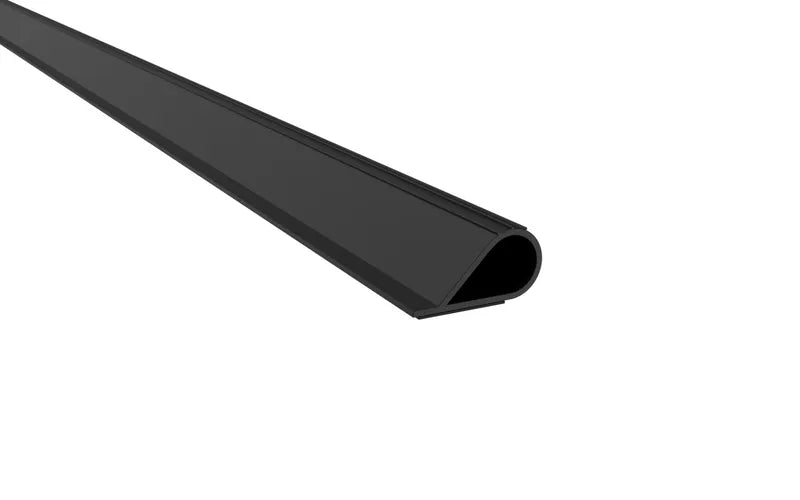

The 3/8" wide PK33 PemkoPrene® Adhesive Perimeter Gasket demonstrates extremely low closing force and is designed for tighter frames.
Features
-
Stays flexible between -40 degrees (F) and 250 degrees (F) with very high resistance to flex fatigue
-
Outstanding ozone resistance rating
-
Smoke tested in accordance with UL1784-01; meets the requirements of NFPA 105
-
Designed for tighter frames
-
Demonstrates extremely low closing force
-

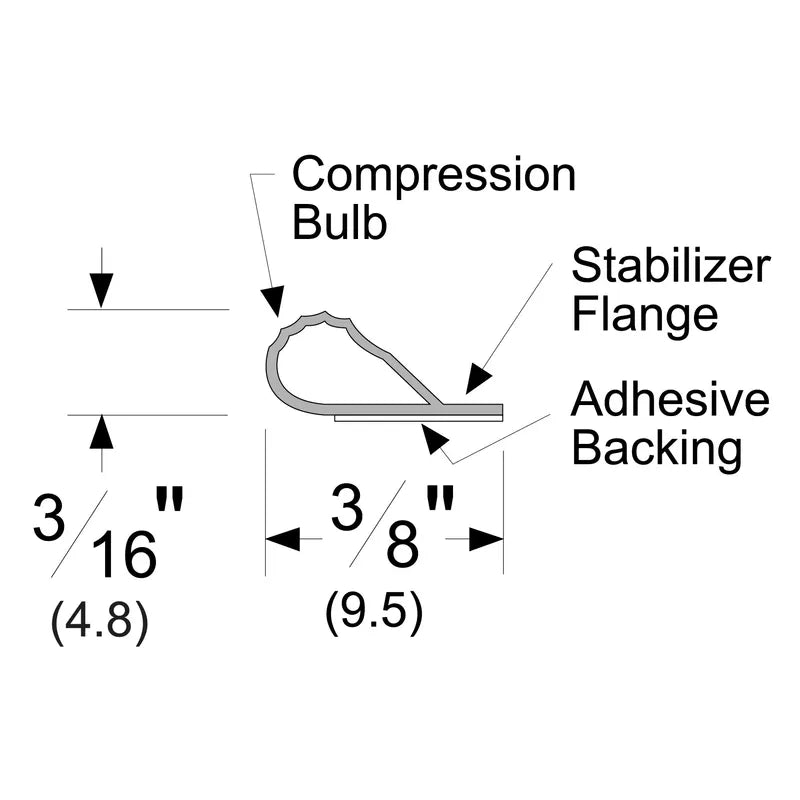

Seal begins compressing at 3/16"; compresses to seal up to a 1/16" gap
-
Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes without hose stream
-
Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes
Benefits
-
Excellent resistance to compression set, particularly at elevated temperatures and for extended periods of time
-

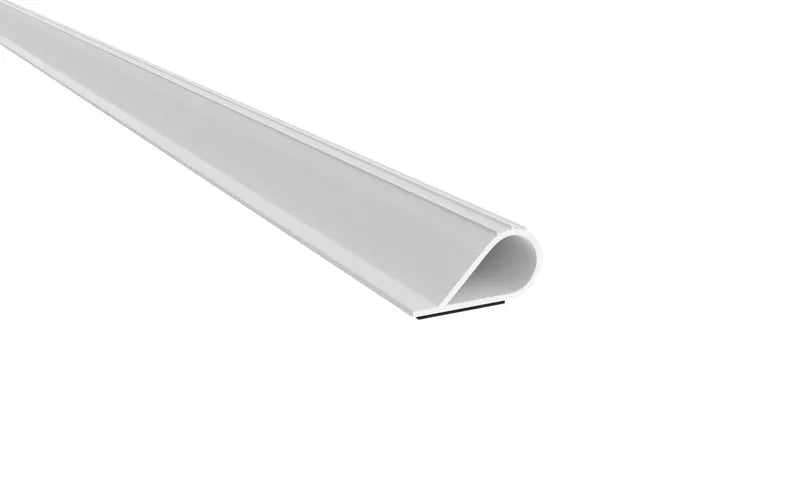

Available in three seal material colors: dark brown, black and white
Specifications
-
Base Material: Thermoplastic
-
Gasketing Material: PemkoPrene
-
Height: 47/250"
-
Maximum Length: 510'
-
Minimum Length: 17'
-
Mounting Location: Side of Frame
-
Mounting Type: Self-adhesive
-
Weight: 0.02 lbs
-
Width: 3/8"
Certifications
-
GREENGUARD Gold Certified
-
UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
ASTM E-283-04 (2012)
-
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
