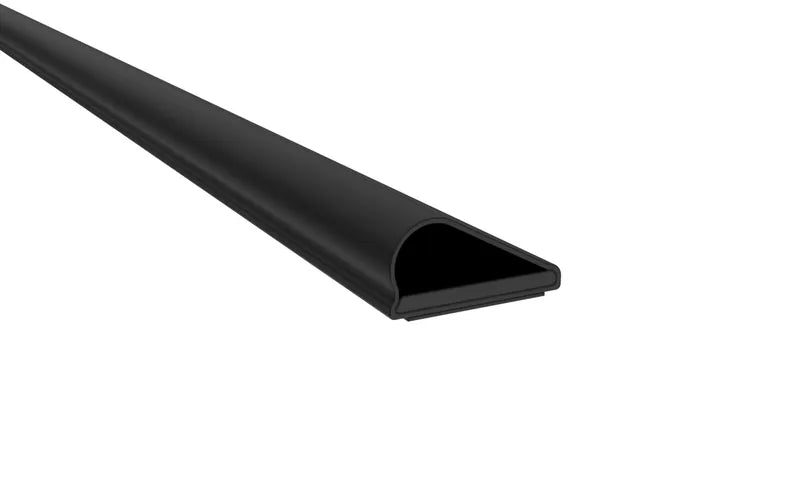

The HSS7750 Intumescent/Bulb Seal Combination Gasket provides an effective fire, smoke and draft seal in the gap around a fire door.
Features
-
Suitable for perimeter applications
-
Chemically inert, highly stable, expandable graphite strip
-
Tested and proven in positive pressure conditions to withstand both hot smoke and hot gasses, resulting in longer integrity of the door assembly
-
More economical to use than specially modified doors in “tested assembly only” classifications
-
Will not degrade from carbon dioxide and ozone like many competitive intumescents from other manufacturers
-
Unaffected by moisture and will not break down like fiber-based or cellulose-based products
-
Seal compresses to 1/16
-
Category G - Edge-Sealing Systems - systems that are surface applied to frames or doors and required for Category B doors
-
Category H gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes without hose stream
-
Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1 1/2 hours; and wood core doors rated for 20 minutes
Benefits
-
Fully integrated, technically advanced co-extrusions for maximum serviceability
-
Complete life safety and property protection solution
-
Hot Smoke Seal can be painted to blend in with the finish of a frame
-
Seal material color is black
Specifications
-
Base Material: Graphite and Flexible Elastomeric
-
Fasteners: N/A
-
Gasketing Material: Flexible Elastomeric
-

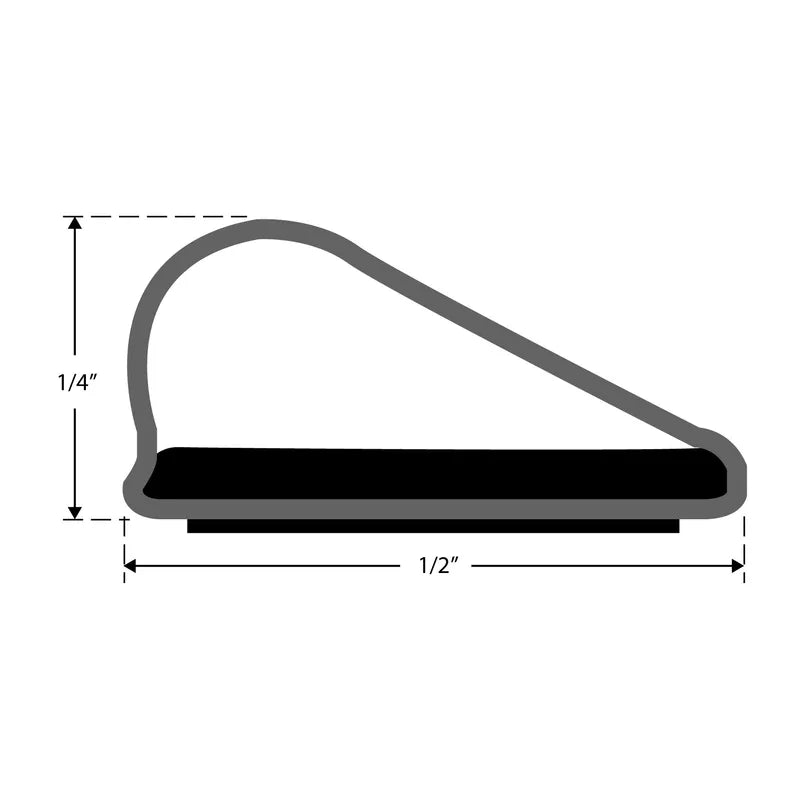

Height: 1/4"
-
Maximum Length: 8'
-
Minimum Length: 3'
-
Mounting Location: Side of Frame
-
Mounting Type: Self-adhesive
-
Weight: 0.01 lbs
-
Width: 1/4"
Certifications
-
UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
