The FG3000S45 Fire Glazing Tape is designed for wood and metal doors with vision lites installed and is fire rated up to 45 minutes. Fire rated glazing tape is a type of double-sided adhesive tape that is specifically engineered to withstand high temperatures and prevent the spread of fire and smoke. It plays a critical role in fire-resistant glazing systems, where it helps to maintain the integrity of fire-rated barriers. It is suitable for a variety of interior or exterior applications.
Features
-
Approved for 45 minute openings on wood and metal doors with vision lites
-

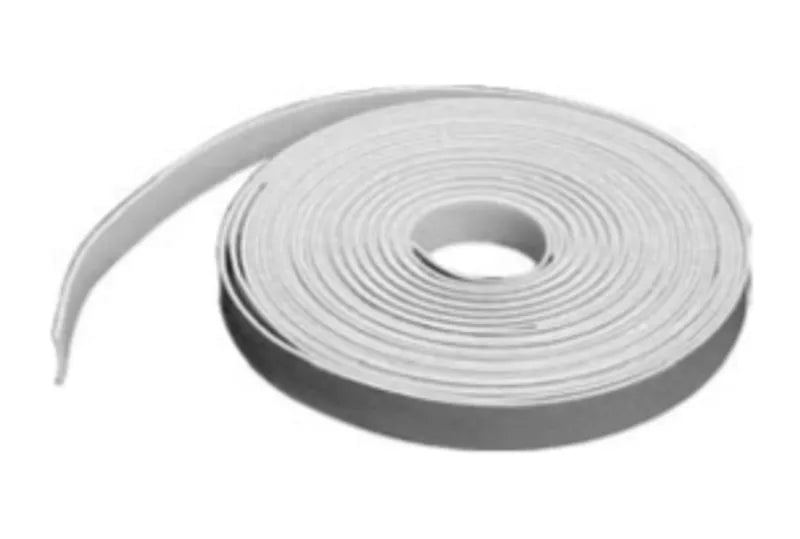

Available in 7, 8, 14 and 16 ft. coils
-

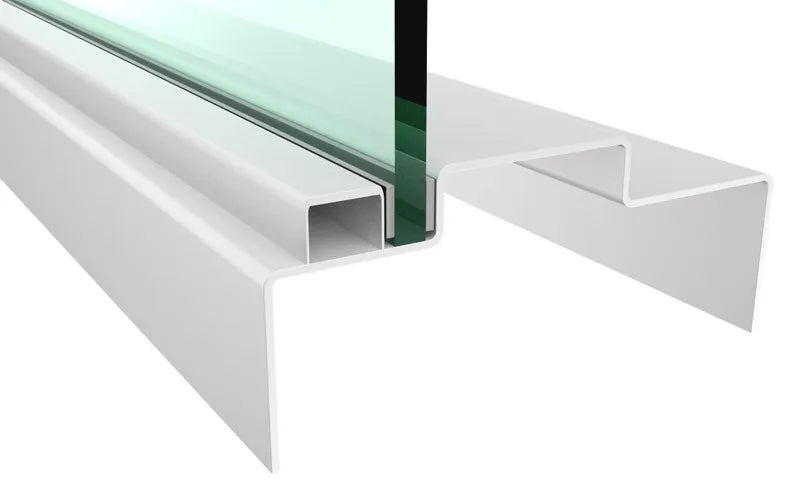

Suitable for hollow metal doors/frames and wood doors
-
For interior and exterior fire-rated applications
-
Adhesive backed
-
Allows for larger vision lites, sidelites, borrowed lites and glass transoms
-
Seals against moisture when used in exterior fire rated applications
-
Use in 20 and 45 minute fire rated doors
-
Verify all applications with your door and/or frame manufacturer
Benefits
-

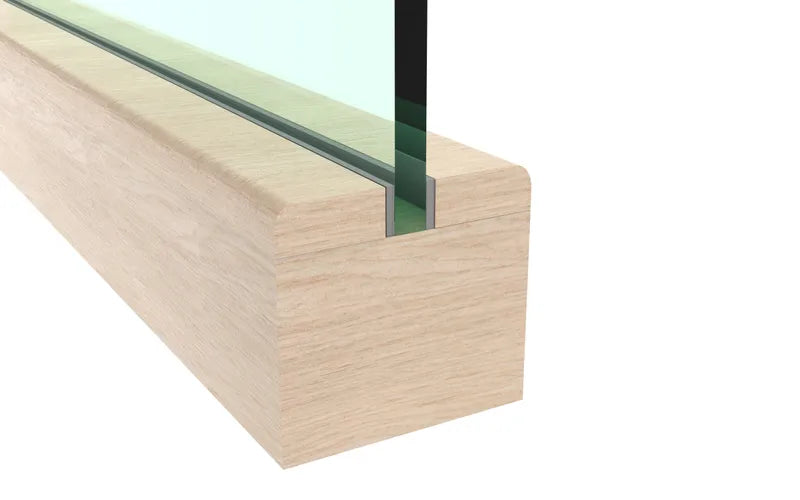

Creates a seal between the glass and the frame, preventing air and water infiltration, and providing structural support
-
Durable, weather-resistant, and flexible
-
Accommodates the expansion and contraction of materials due to weather and temperature changes
-
Prevents rapid spread of fire for enhanced safety
-
Ensures an effective seal between the door and window
-
Easy to apply and install
Specifications
-
Adjustability: No
-
Gasketing Material: Intumescent
-
Pack Quantity: 50
-
Profile Height: 47/100"
-
Weight: 0.01lbs. per foot
-
Width: 219/500"
Certifications
-
UL 10C positive pressure
