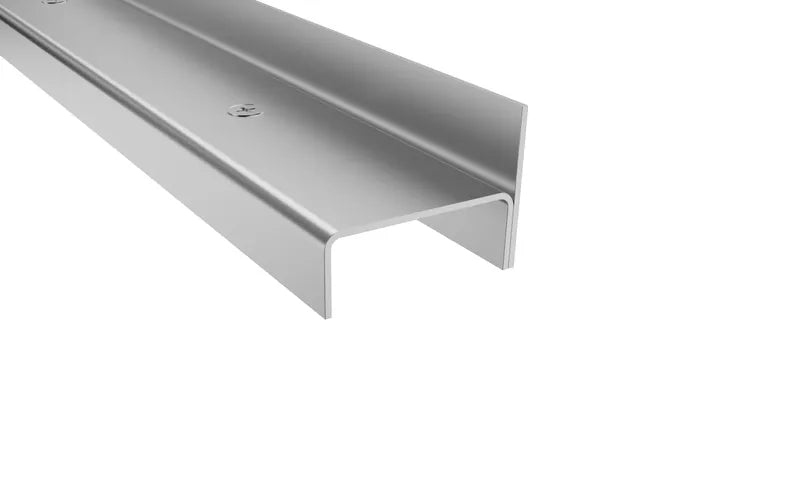

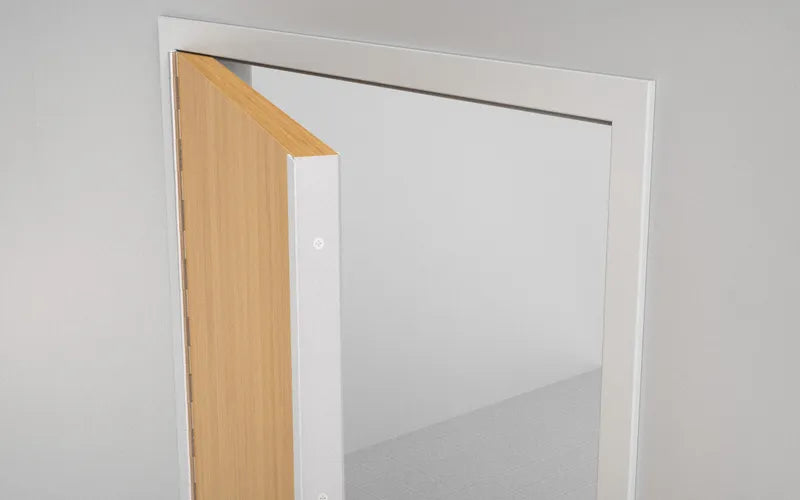

The Markar EGT308 Edge Guard with overlapping astragal protects your leading-edge door from dings and gouges from carts and gurneys, while providing additional security by protecting the latch protector. All Edge guard products also have fire ratings up to and including 3 hours.
Features
-
Made of 16-gauge stainless steel
-
US 32D Satin Stainless Steel
-
Edge Guard with overlapping astragal
Benefits
-
The integral overlapping astragal of the Markar EGT308 Edge Guard provides additional security by protecting the latch protector.
-
It is ideal for exterior pairs of doors or doors that require added protection from vandalism.
-
Fasteners are concealed when the door is closed
Specifications
-
Grade: Grade 1
-
Hinge Material: 304 stainless steel
-
Handing: Non-handed
-
Fastener: TEKS Custom 12-24 x 11/16" FHUC, PBS Custom 12-24 x 1 1/2"
-
Fastener Type: TEKS, Wood
-
Maximum Door Thickness: 1 3/4"
-
Minimum Door Thickness: 1 3/4"
-
Maximum Hinge Length: 120"
-
Minimum Hinge Length: 12"
-
Minimum Hinge Clearance: 0.60250"
-
Weight: 1.14lbs. per foot
Certifications
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
Warnock Hersey listing
-
UL 10B Liste
