The Markar EGC308 Edge Guard protects your leading-edge door from dings and gouges from carts and gurneys, while maintaining aesthetic appearance in the closed position. All Edge guard products also have fire ratings up to and including 3 hours.
Features
-
The fire-labeled Markar EGC308 single return edge guard works with the HG315 Hinge/Guard.
-
Made of 16-gauge stainless steel
-
US 32D Satin Stainless Steel
Benefits
-

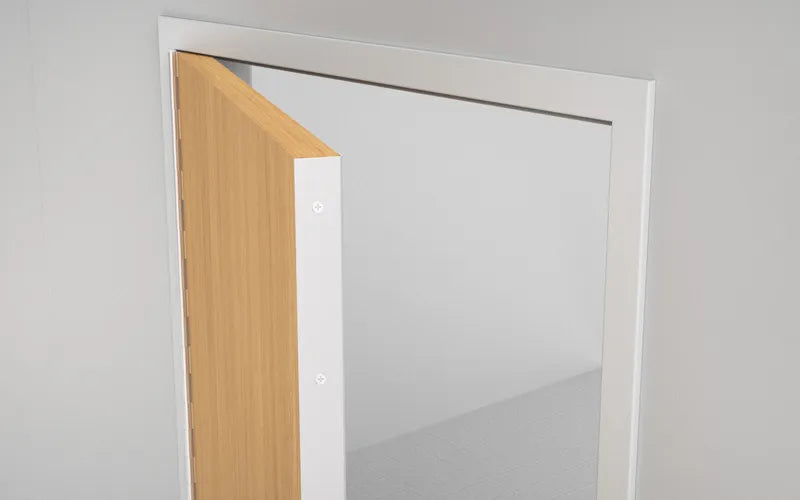

It provides protection to the leading edge of the door, while maintaining the door's aesthetic appearance in the closed position.
-
Fasteners are concealed when the door is closed
Specifications
-
Grade: Grade 1
-
Hinge Material: 304 stainless steel
-
Handing: Non-handed
-
Fastener: TEKS Custom 12-24 x 11/16" FHUC, PBS Custom 12-24 x 1 1/2"
-
Fastener Type: TEKS, Wood
-
Maximum Door Thickness: 1 3/4"
-
Minimum Door Thickness: 1 3/4"
-
Maximum Hinge Length: 120"
-
Minimum Hinge Length: 12"
-
Minimum Hinge Clearance: 0.60250"
-
Weight: 0.7lbs. per foot
Certifications
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
Warnock Hersey listing
-
UL 10B Listed
Options
| Option Code | Description |
|---|---|
|
N/A
|
Staggered Hole pattern for LeadLined Doors
|
