The EGA305XGSS Door Top Weatherstrip effectively covers gaps up to 1/2" by being installed onto the door, incorporating an S88 adhesive-backed silicone bulb and HSS2000 intumescent for high performance. UL Certified for 90-minute fire doors and meeting NFPA 80 requirements, it offers a cost-effective solution to bring various door types, including steel, composite, hollow metal, wood, and plastic-covered composite core doors, into compliance with fire codes, saving on the expenses of door replacement and providing a quick resolution to fire door inspection issues.
Features
-
UL Classified for use on openings with gaps in excess of those outlined in NFPA 80
-
Suitable for use on gaps at the head of an opening up to 1/2”
-
Rated up to 90-minutes and suitable for use on steel composite, hollow metal doors, wood and plastic-covered composite core doors
-

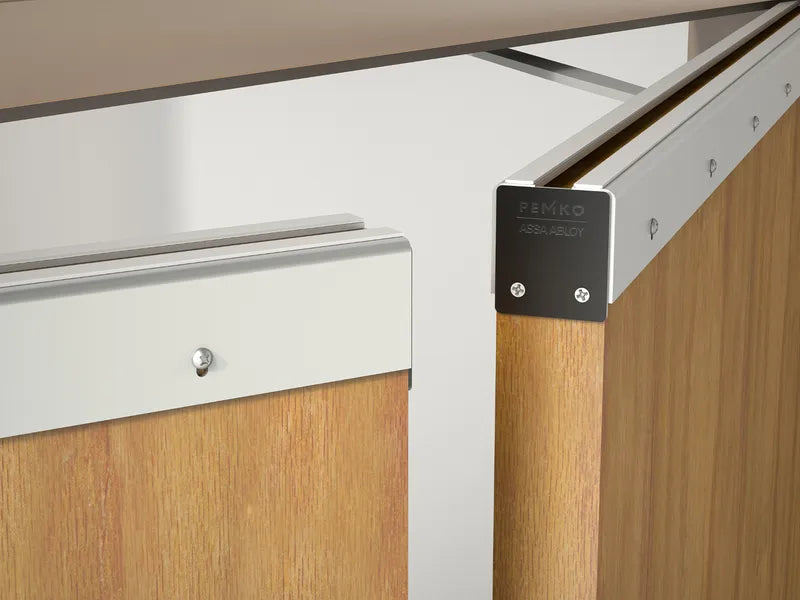

End plate kit provided to finish off door edge
-
Replacement end plate kit is K450XG
-
Incorporated S88 adhesive-backed silicone bulb and HSS2000 high-performing intumescent
Benefits
-
Brings fire doors back to compliance with code
-
Easy to trim in the field
-
Eliminates costly expense of replacing doors
-
Quick and easy resolution to fire door inspection issues
-
Meets fire code requirements
-
Saves on installation time
Specifications
-
Base Material: Stainless steel
-
Maximum Length: 48"
-
Minimum Length: 36"
-
Overall Height: 1 3/4"
Certifications
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
Seal Material Colors
-
C - Clear
-
GR - Gray
-
TAN - Tan
-
D - Dark Brown
-
BL - Black
-
W - White
