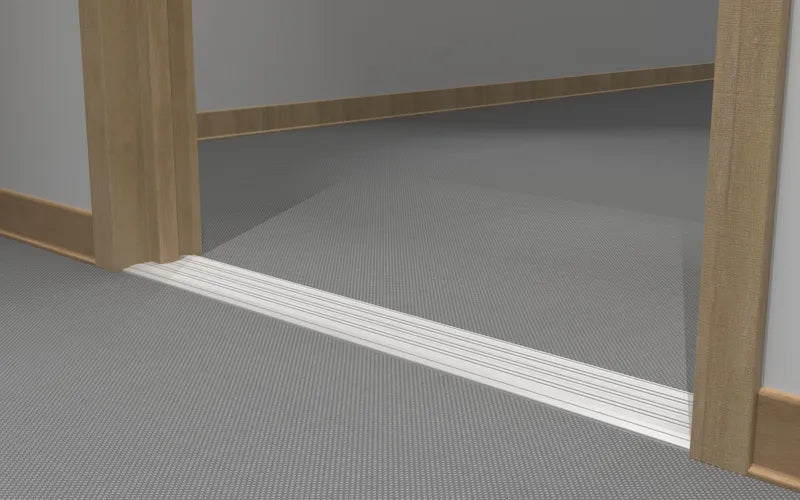

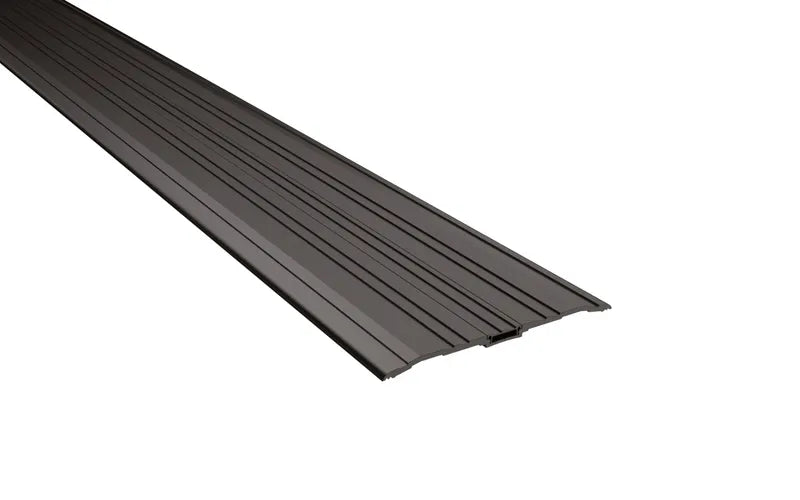

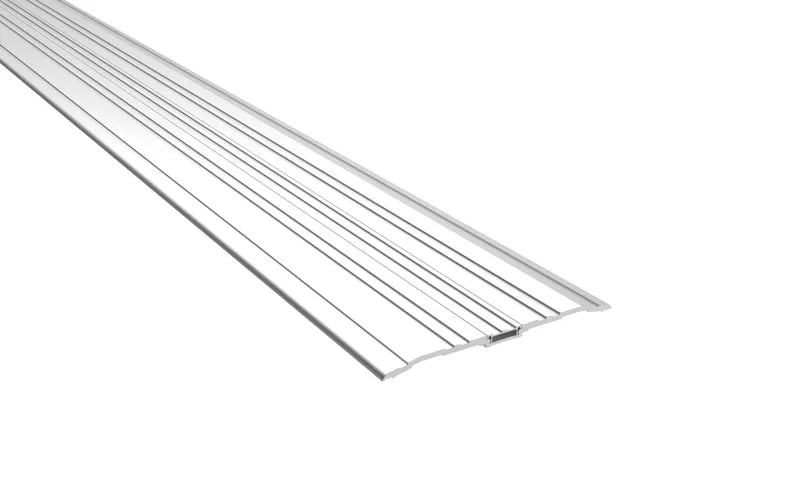

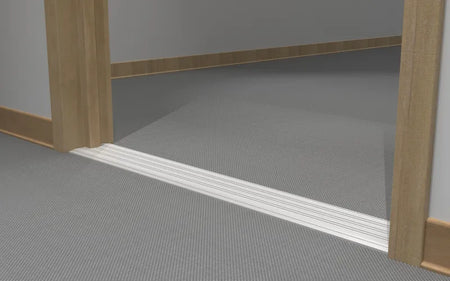

The 1/4" high x 5" wide innovative 671 Series Concealed Fastener Flat Saddle Threshold features a snap-on cover that conceals all fasteners in the opening, allowing for a smoother, more consistent threshold surface. These ADA compliant, retrofittable models provide a flat area for a door bottom sweep or shoe to seal against.
Features
-
Snap cover conceals fasteners in the opening
-
Suitable for retrofit applications
-
Provides a flat surface for door bottom sweep or shoe to seal against
-
Standard #10 zinc-plated steel fasteners; optional threshold fastener types available
-
Provided with standard hole pattern in the recessed channel
-
Replacement snap cover available (_6900SC)
Benefits
-
Aesthetically pleasing. Threshold surface is smooth and consistent
-
Discourages tampering
-
Acts as a non-combustible sill in the opening
-
All models can be L- or U-notched to fit around the frame
Specifications
-
Base Material: Aluminum
-
Fasteners: SMS #10 X 1"
-
Maximum Length: 185"
-
Minimum Length: 6"
-
Overall Height: 1/4"
-
Weight: 0.86 lbs
-
Width: 5"
Certifications
-
UL 10C positive pressure
-
Americans with Disabilities Act (ADA) Compliant
-
UL 10B Listed
-
ANSI/BHMA A156.21 Thresholds
