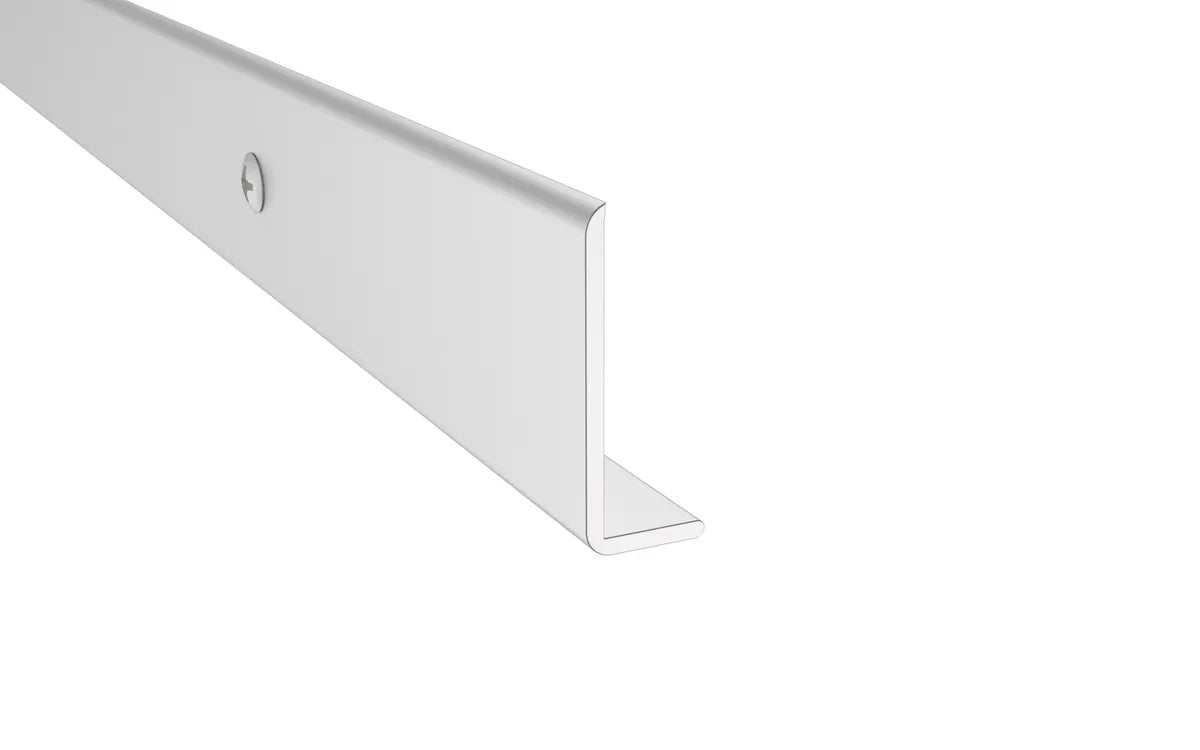

The 66 Series aluminum Interlocking Angle is designed for use with our Interlocking Thresholds and for some Weather-stripping Applications. It creates a barrier against wind, air, insects, and water infiltration, making it ideal for exterior doors. Crafted from heavy-duty, non-corrosive metals, it is available in various finishes and can be custom cut to size. Installation screws are provided. This accessory is certified for UL 10C positive pressure and BHMA 156.22.
Features
-
For use with interlocking threshold or weatherstripping
-
Includes installation screws
-
Fire rated
Benefits
-
When installed properly, hooks will interlock with threshold for a superior seal
-
Protects against air, wind, water, and more
-
Made from heavy-duty, non-corrosive metals
-
Can be custom cut to size
Specifications
-
Base Material: Aluminum
-
Maximum Length: 185"
-
Minimum Length: 24"
-

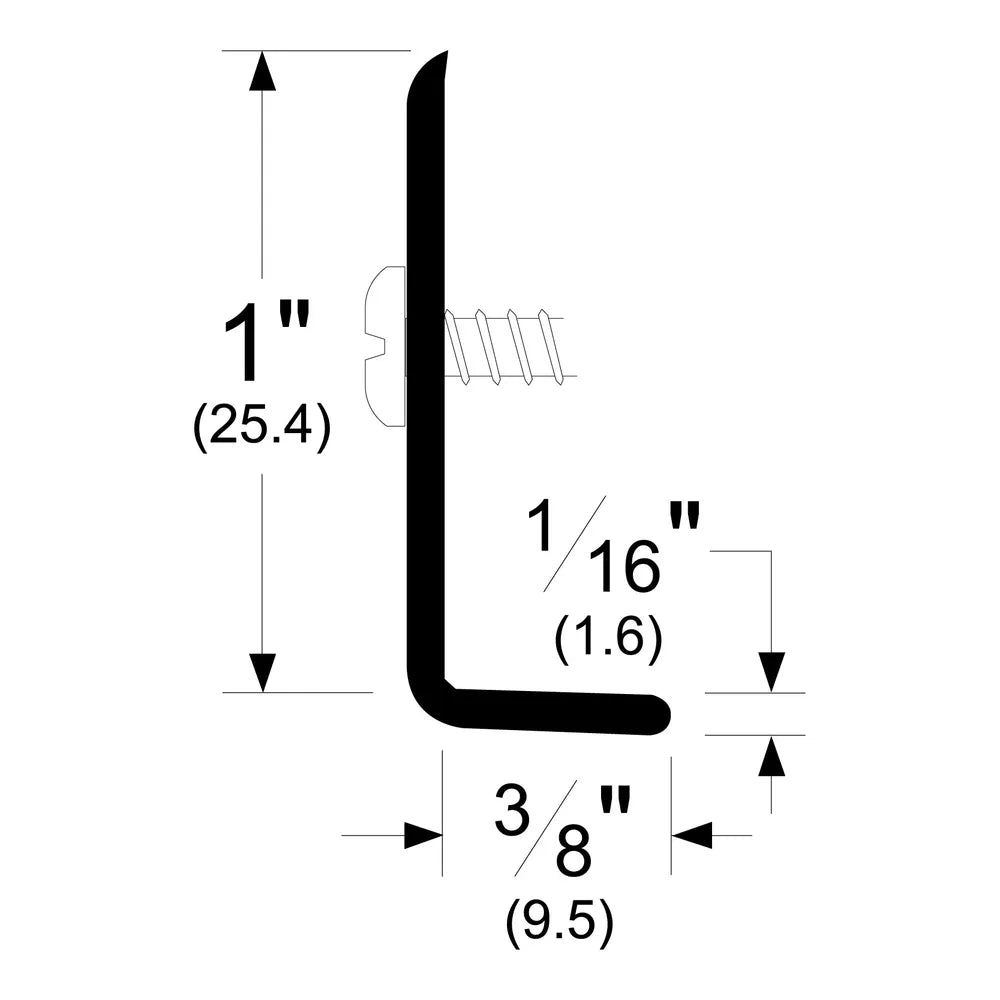

Overall Height: 1"
-
Weight: 0.01 lbs
-
Width: 469/500"
Certifications
-
UL 10C positive pressure
-
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
