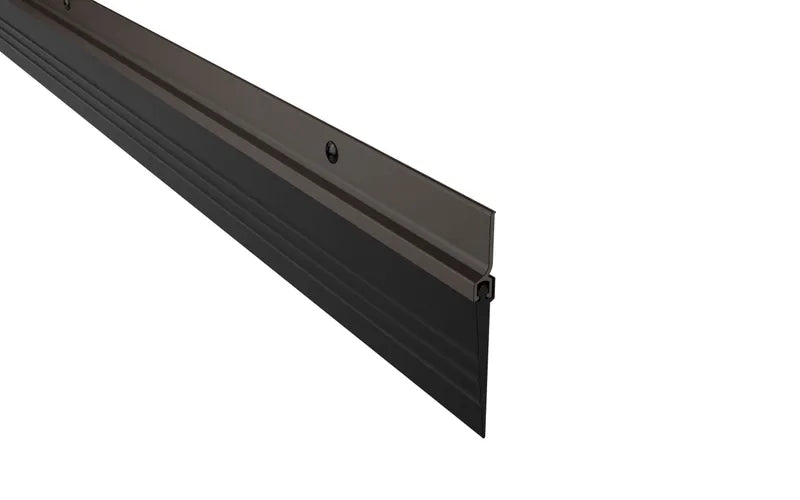

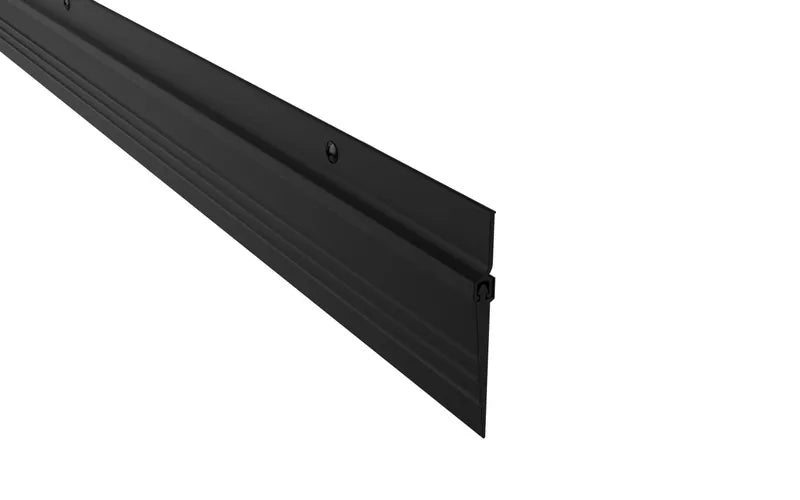

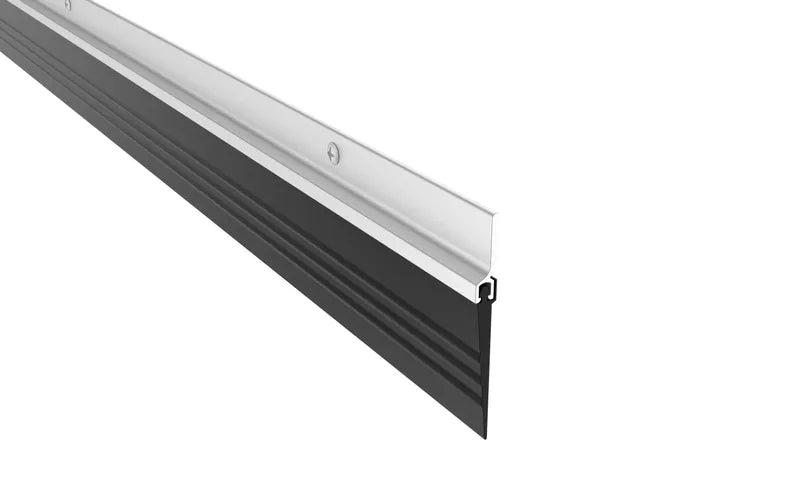

This 56_V Series Surface Plate Door Sweep with Eco-V (Vinyl) seal is designed to seal gaps up to 1.53 inches between the door and threshold or floor surface. It is made with high-quality materials for durability and is available in various aluminum finishes. It can be custom cut to size and is priced per foot.
Features
-
Slotted holes for easy adjustment
-
Recommended compression of gasket is 1/16"
-
Eco-V™ (V) insert
-
Seal up to a 1-9/16" the gap between the door and threshold or to the floor surface
Benefits
-
Eco-friendly material
-
Economical bio-based material, contains no phthalates or heavy metals
-
Assists building and design teams with emissions criteria in green building rating programs
-
Highly versatile, easily deployable for a variety of building applications
-
Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
-
Meets standards for compression and tensile strength, which provides exceptional energy-saving performance
-
Prevents air leakage
-
Heavy metal free
-
Plasticizers from renewable carbon sources, stabilizers are organic-based and zinc free
-
Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild cleaning solutions

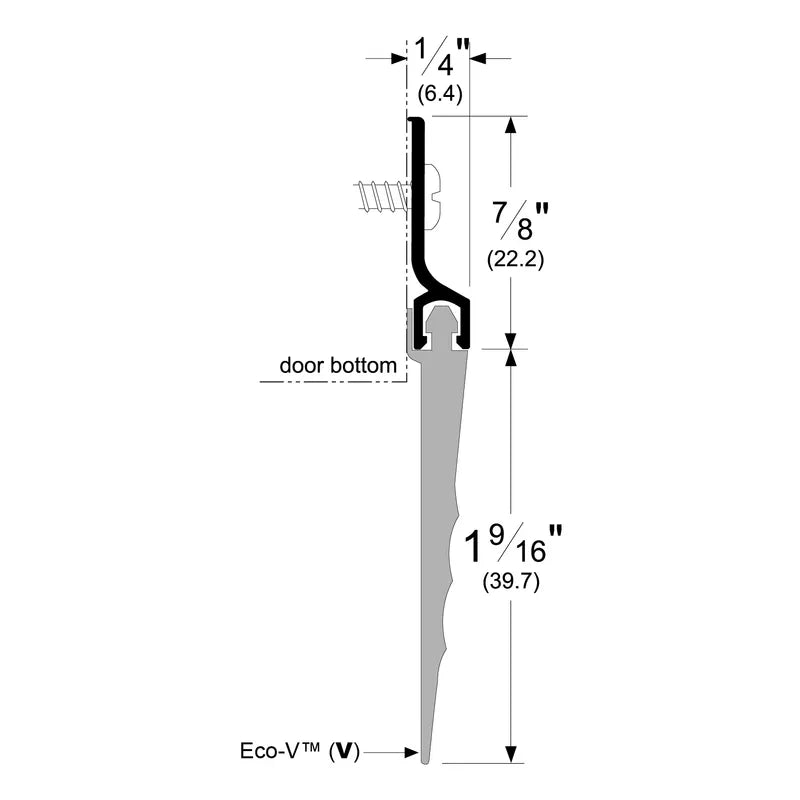

Specifications
-
Base Material: Aluminum
-
Fasteners: PHSMS #6 x 5/8"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 2 7/16"
-
Width: 1/4"
Certifications
-
GREENGUARD Gold Certified
