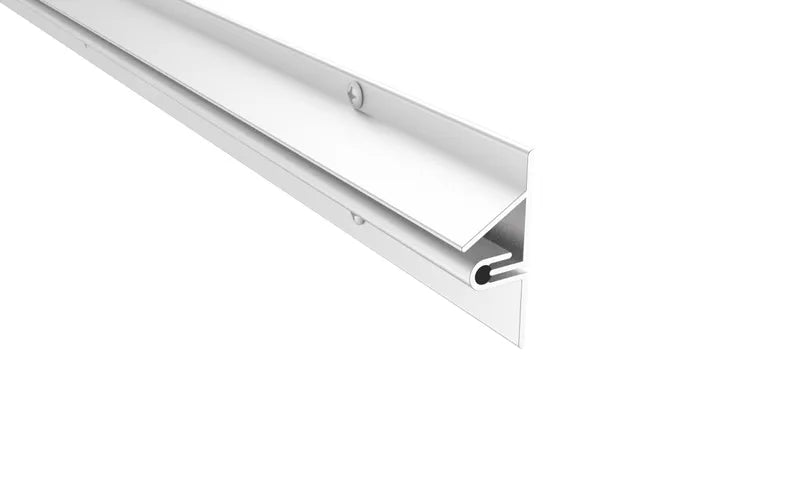

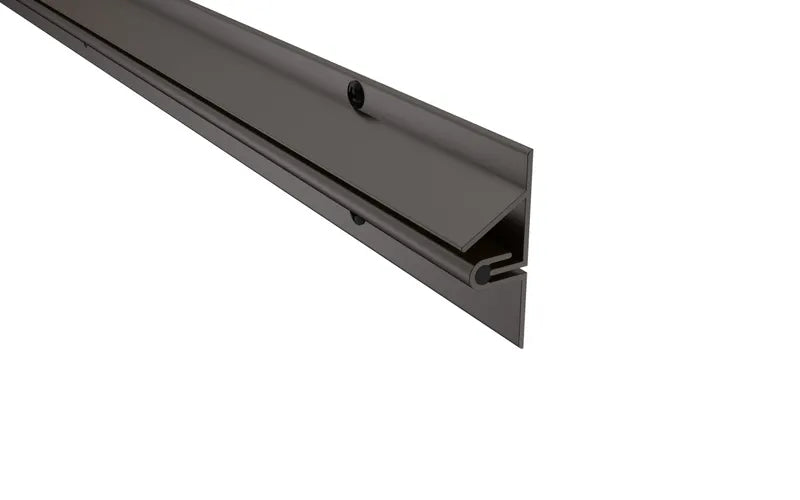

The 347 Series Door Top Interlocking Weatherstripping is used with the 68 Series and is designed to seal the gap and prevent water seepage along the top of the door. Its rain drip design deflects water for added protection. The aluminum casing with silicone interior ensures superior performance. Available in three aluminum finishes and custom cut to size.
Features
-
Overhead interlocking rain drip used with the 68 aluminum silicone housing
-
Fitted with a silicone interior for superior performance
-
Should be ordered a minimum of 4" longer than the door width
-
For outswing doors only
Benefits
-
Directs water away from the door and seals the top of the door edge.

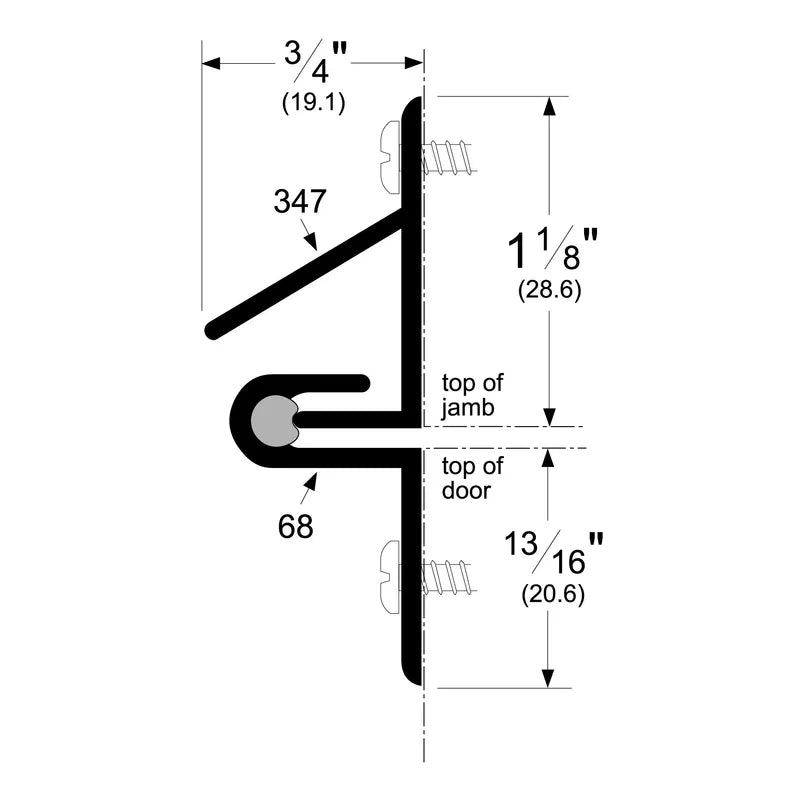

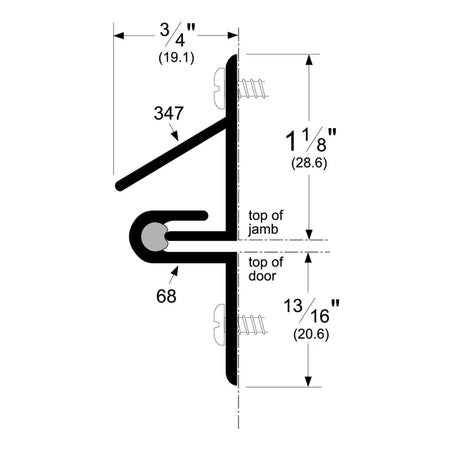

Specifications
-
Base Material: Aluminum
-
Fasteners: SMS #6 X 5/8"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1 1/8"
-
Weight: 0.17 lbs
-
Width: 3/4"
Certifications
-
UL 4L10 listed
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
