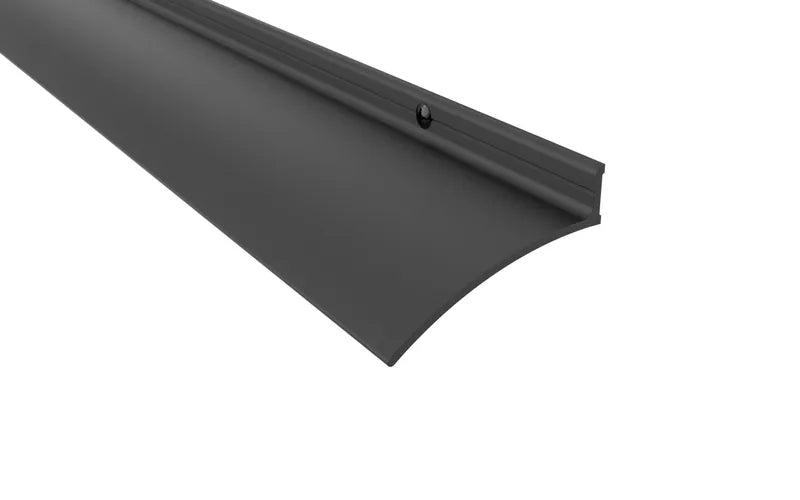

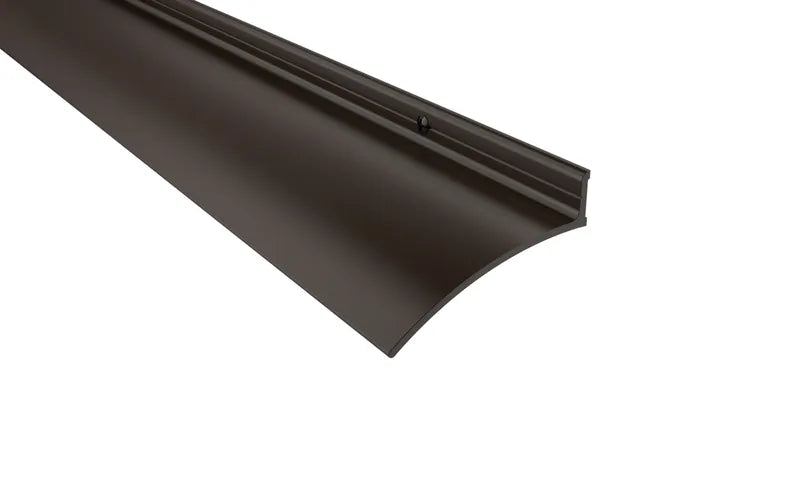

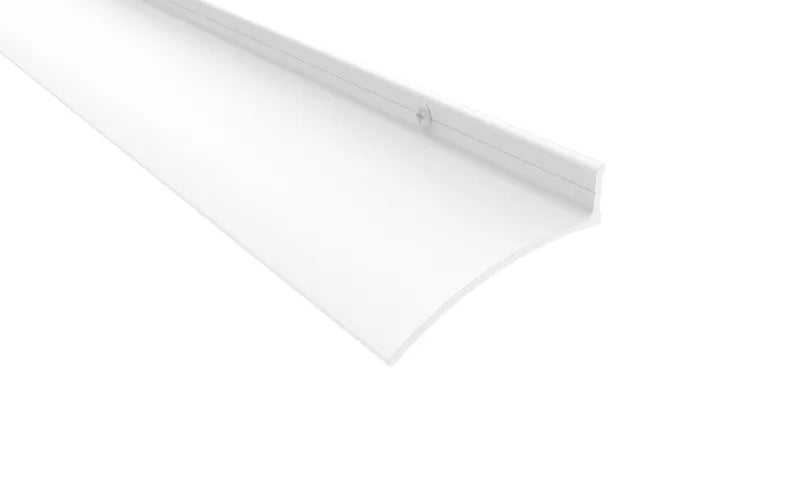

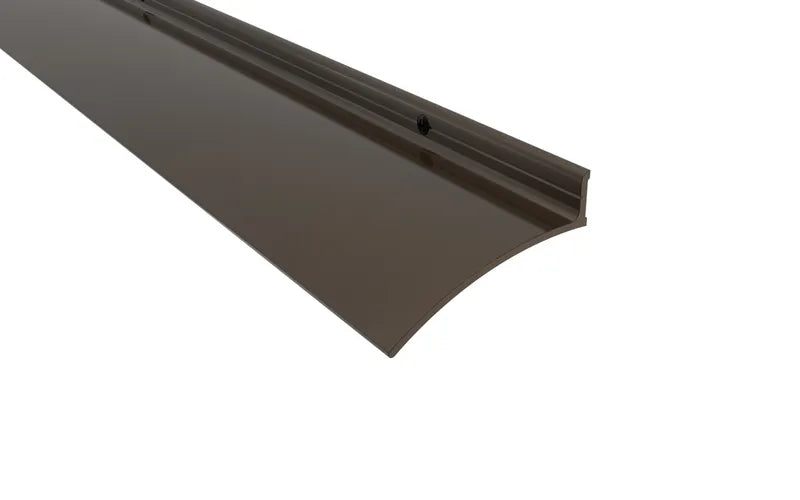

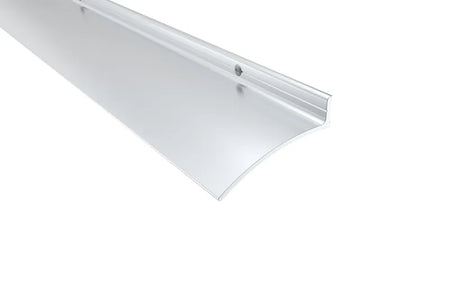

The 346 Series Rain Drip Projection Strip is a fire-rated weatherstrip made of high-quality aluminum. It effectively deflects water from the gaps at the top or bottom of doors, preventing seepage. It is available in various finishes and is custom cut to size.
Features
-
Overhead rain drip with slotted holes
-
Should be ordered a minimum of 4" longer than the door width
Benefits
-
Directs water away from the door edges
Specifications
-
Base Material: Aluminum
-
Fasteners: SMS #6 X 5/8"
-
Maximum Length: 185"
-
Minimum Length: 24"
-

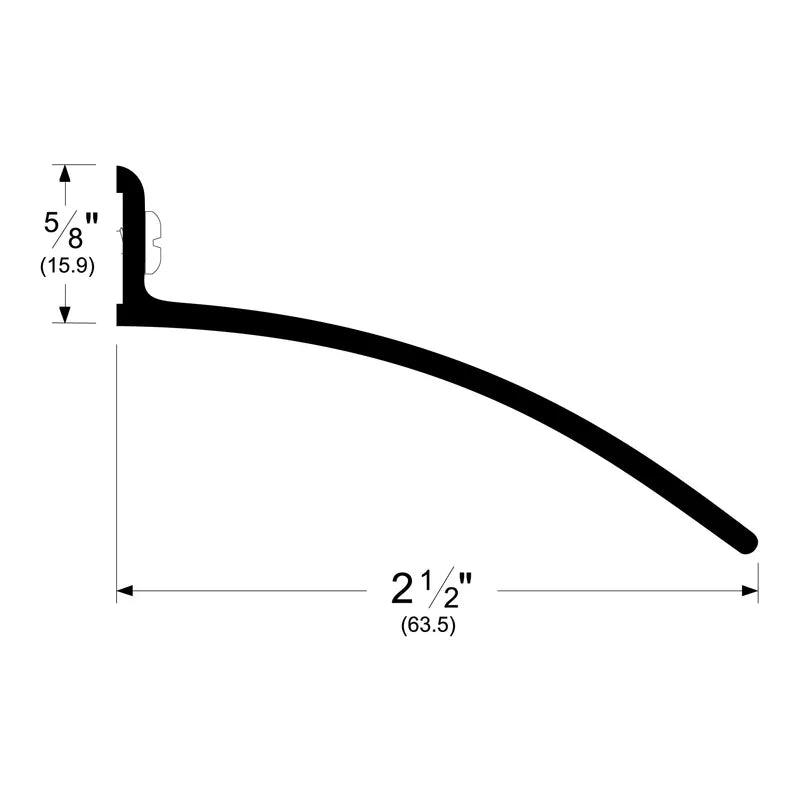

Overall Height: 5/8"
-
Weight: 0.35 lbs
-
Width: 2 1/2"
Certifications
-
UL 4L10 listed
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
