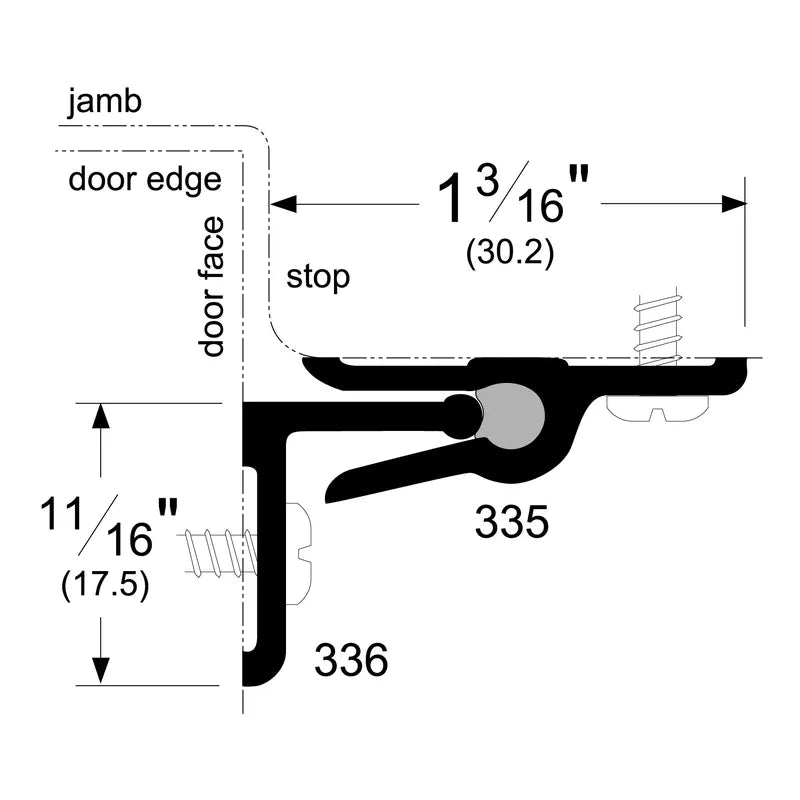

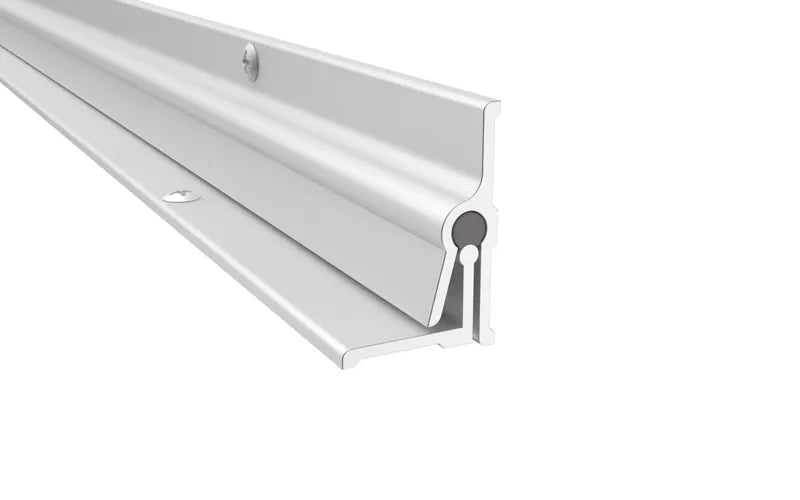

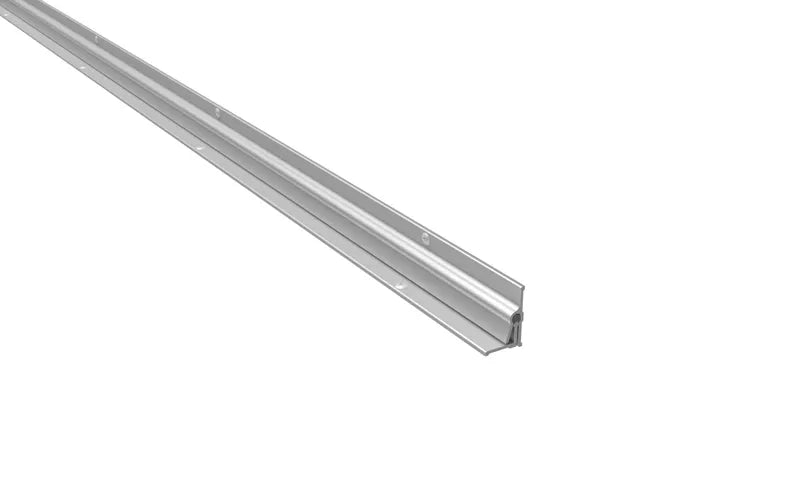

The 335_R Heavy Duty Interlock Perimeter Gasket features sponge neoprene and works in conjunction with our 336 component
Features
-
Applied to the jamb
-
Furnished with sponge neoprene
Specifications
-
Base Material: Aluminum
-
Fasteners: PHSMS #6 x 5/8"
-
Gasketing Material: Sponge EPDM
-
Height: 17/50"
-
Maximum Length: 185"
-
Minimum Length: 2'
-
Mounting Location: Side of Frame
-
Mounting Type: Screw applied
-
Overall Height: 86/125"
-
Profile Height: 86/125"
-
Weight: 0.16 lbs
Certifications
-
UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
-
ASTM E-283-04 (2012)
-
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
