The 330_V Standard Perimeter Gasket features an Eco-V insert that is highly versatile and easily deployable for a variety of building applications. This eco-friendly, bio-based insert prevents air leakage, has limited resistance to ultraviolet and weather, and good resistance to adhesives and most mild cleaning solutions.
Features
-
Weatherstrip can seal gaps up to the depth of its seal
-

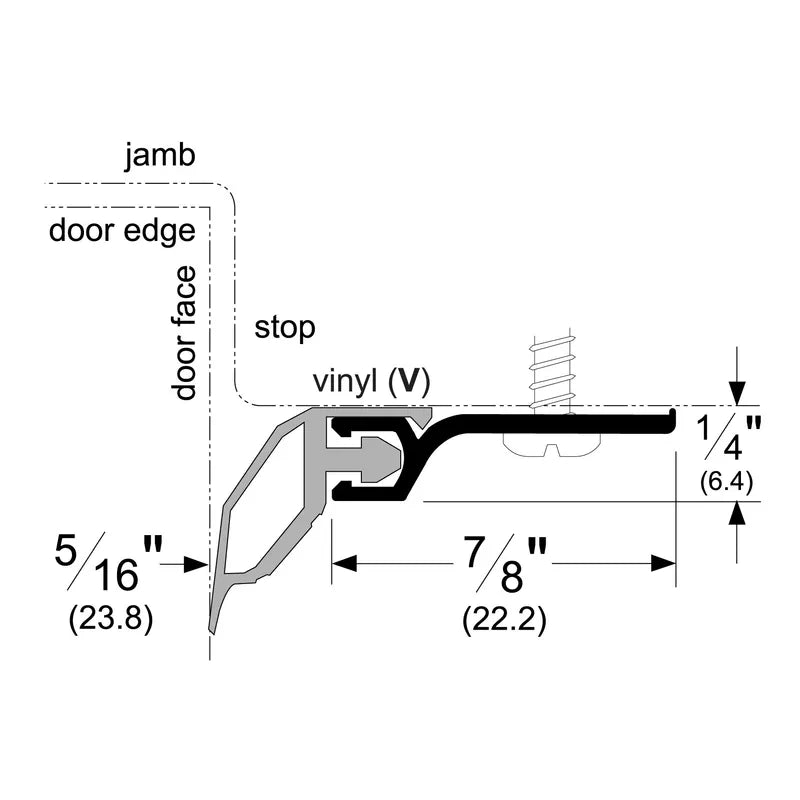

Seal depth is provided on line drawing
Specifications
-
Base Material: Aluminum
-
Fasteners: PHSMS #6 x 5/8"
-
Gasketing Material: Eco-V™
-
Height: 1/4"
-
Maximum Length: 185"
-
Minimum Length: 2'
-
Mounting Location: Side of Frame
-
Mounting Type: Screw applied
-
Overall Height: 1/4"
-
Profile Height: 7/8"
-
Weight: 0.07 lbs
Seal Material Colors
- V - Eco-V
- GR - Gray
- BL - Black
Certifications
-
GREENGUARD Gold Certified
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
