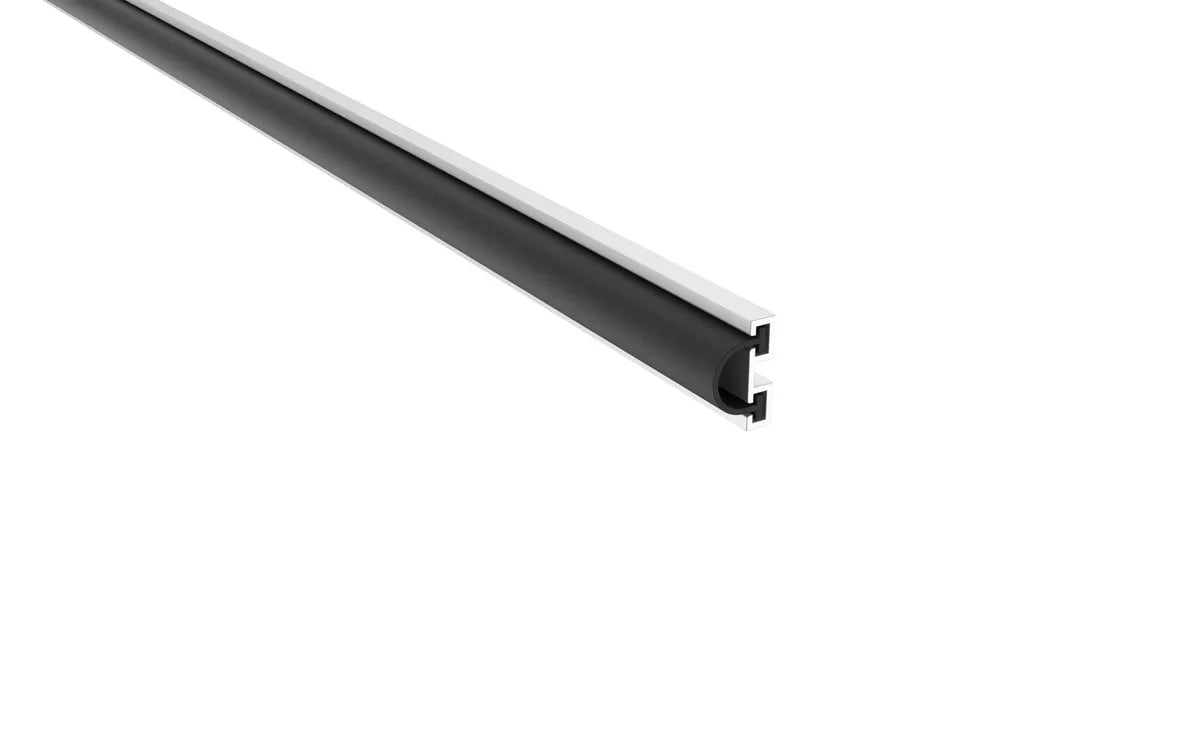

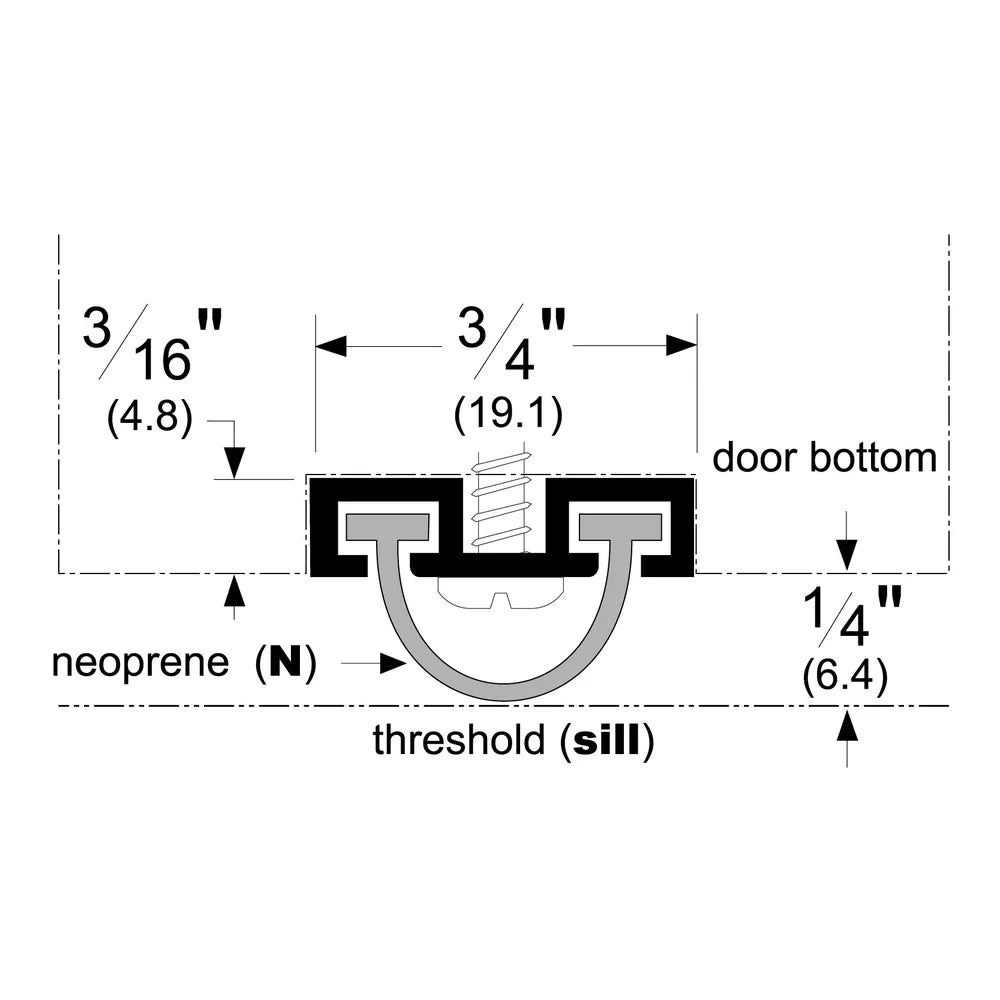

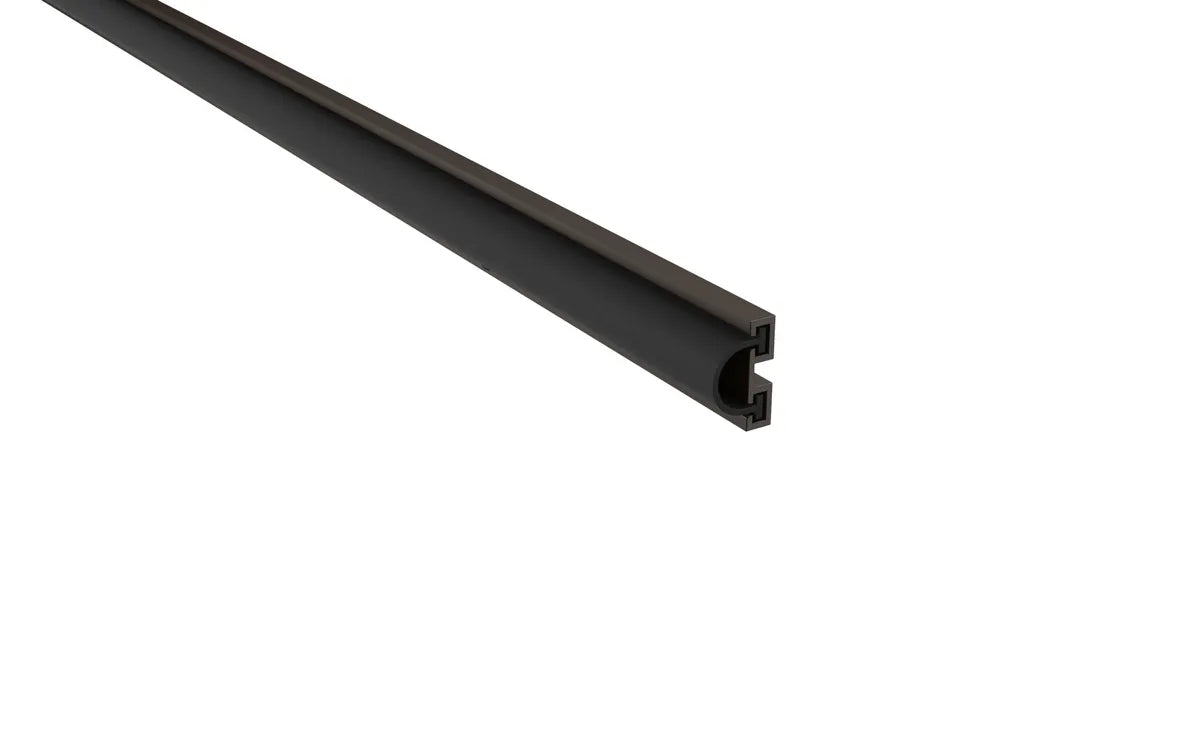

The 313_N Series is a versatile surface or mortised specialty door bottom equipped with an EPDM bulb, supplied in NET length as ordered and suitable for both surface and mortised applications. Ideal for preventing the infiltration of drafts, dust, water, and light, it may also serve as a meeting stile gasket, although it's not recommended for use on beveled edge pairs of doors.
Features
-
Surface or mortised applications
-
Supplied NET length (as ordered)
-
May also be used as a meeting stile gasket
-
Does not work well on beveled edge pairs of doors
Benefits
-
Helps prevent the infiltration of drafts, dust, water, and light
Specifications
-
Base Material: Aluminum
-
Fasteners: PHSMS #6 x 5/8"
-
Maximum Length: 197"
-
Minimum Length: 24"
-
Overall Height: 1 3/4"
-
Width: 5/8"
Certifications
-
GREENGUARD Gold Certified
-
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
