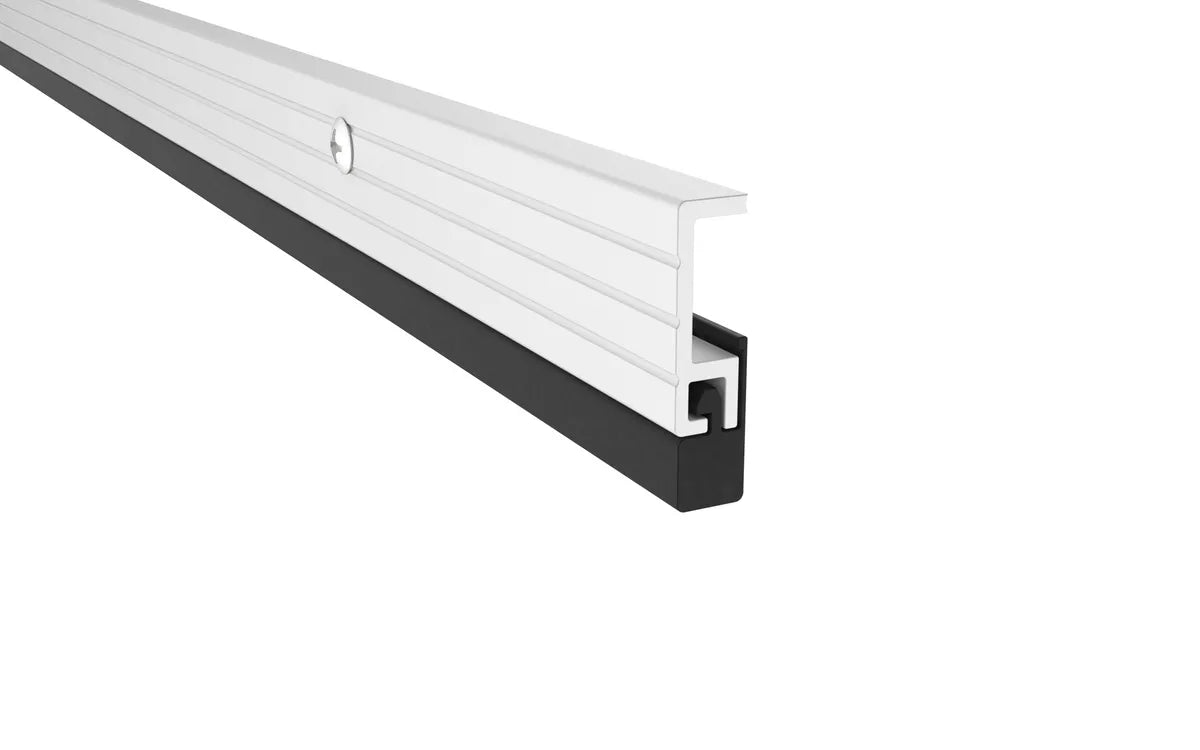

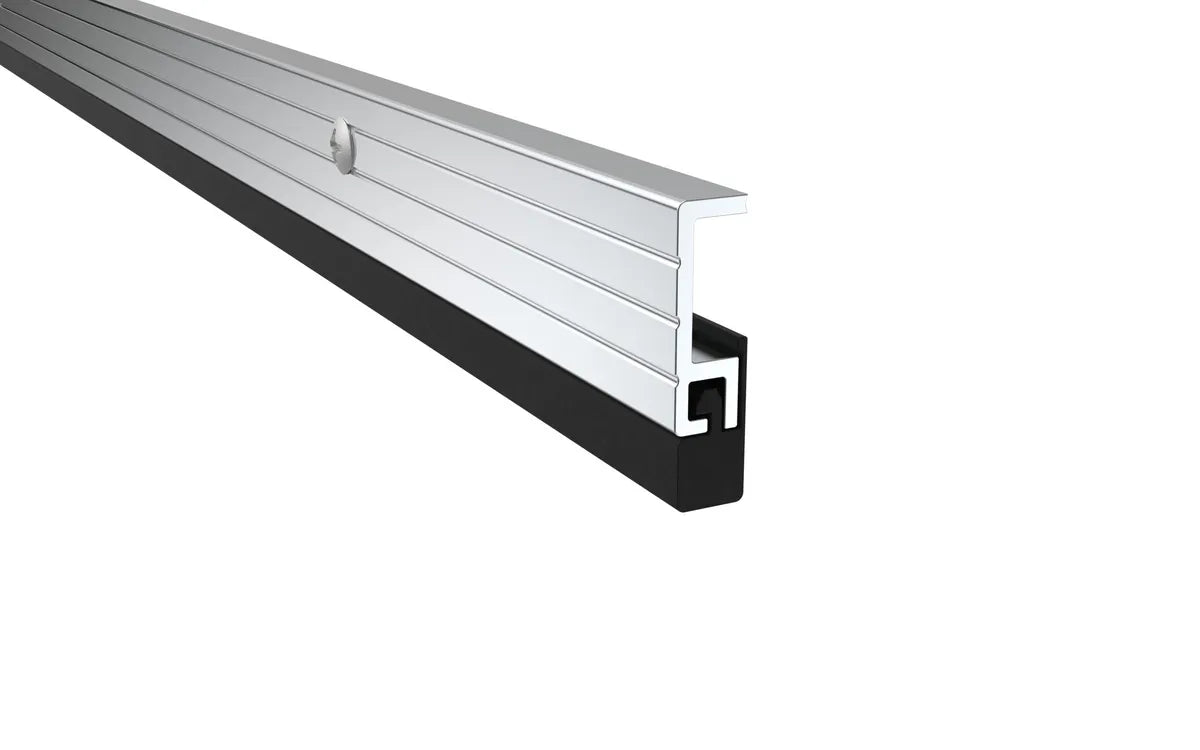

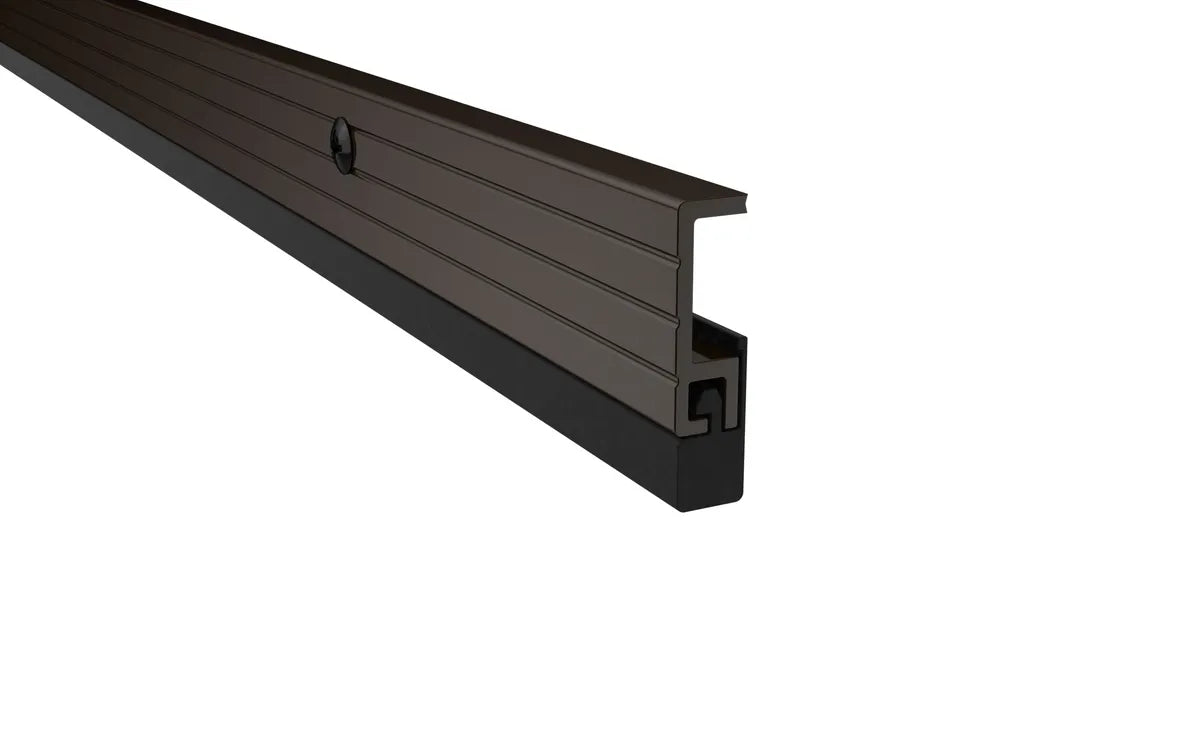

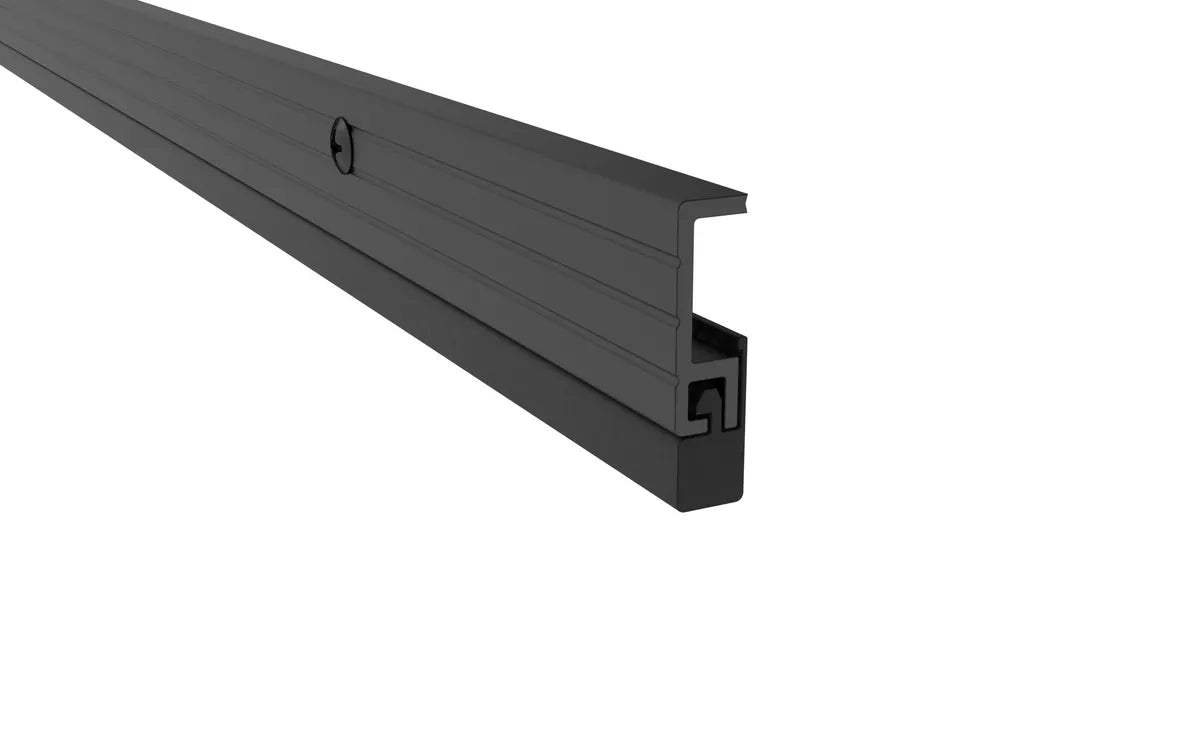

The 312_R Standard Perimeter Gasket has a sponge neoprene insert that is flexible at high and low temperatures, and resists deterioration from oily substances.
Features
-
Weatherstrip can seal gaps up to the depth of its seal
-

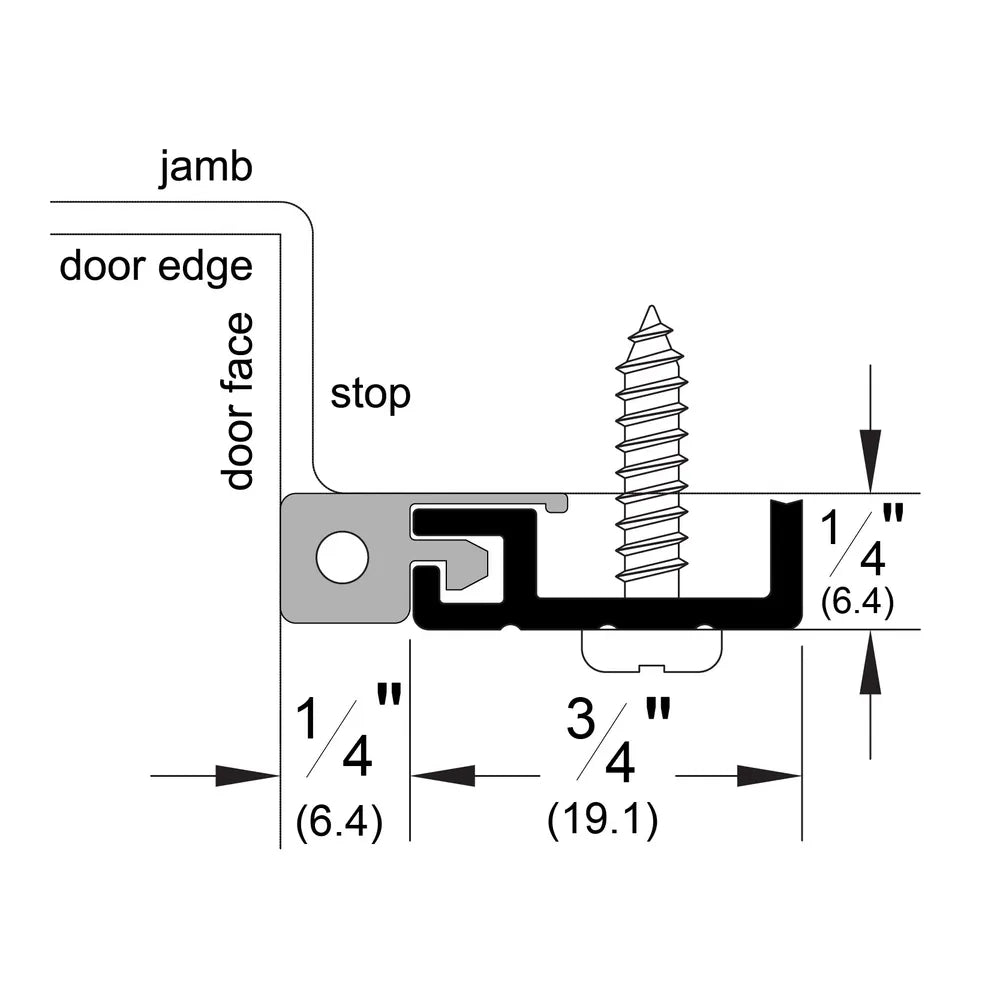

Seal depth is provided on line drawing
Specifications
-
Base Material: Aluminum
-
Fasteners: PHSMS #6 x 5/8"
-
Gasketing Material: EPDM
-
Height: 1/4"
-
Maximum Length: 185"
-
Minimum Length: 2'
-
Mounting Location: Side of Frame
-
Mounting Type: Screw applied
-
Overall Height: 1/4"
-
Profile Height: 3/4"
-
Weight: 0.09 lbs
Certifications
-
GREENGUARD Gold Certified
-
UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
ASTM E-283-04 (2012)
-
ASTM E 90-2009
-
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
