Home » PEMKO 285 Series
Pemko

PEMKO 285 Series

SKU: 285BSP PK 24”
$ 34.22

The 285 Series Standard Perimeter Gasket features either a PemkoPrene® (285_PK) or sponge neoprene (285_R) insert. They are for wood, metal, and glass doors, and can seal gaps up to the depth of its seal.

Product Overview

Features

  • Perimeter gasketing featuring a flexible insert

  • Capable of sealing gaps up to the full depth of its seal

  • Punched on 6" centers with slotted holes for adjustment

  • Made of aluminum

  • Offered in five finishes

  • Suitable for various door types, including wood, metal, and glass doors

  • Height of 21/32" (16.7mm)

  • Zinc sheet metal screws are standard and other fasteners are available

  • BHMA certified, Greenguard certified and fire tested

Benefits

  • Seals gaps around doors for improved energy efficiency

  • Can significantly reduce sound transmission between rooms

  • Provide smoke and fire resistance

  • Easy to install and can be retrofitted onto exisiting doors

Specifications


  • Base Material: Aluminum

  • Fasteners: PHSMS #6 x 5/8"

  • Height: 82/125"

  • Maximum Length: 185"

  • Minimum Length: 2'

  • Mounting Location: Side of Frame

  • Mounting Type: Screw applied

  • Profile Height: 1.000000"

  • Weight: 0.15 lbs

Models & Inserts

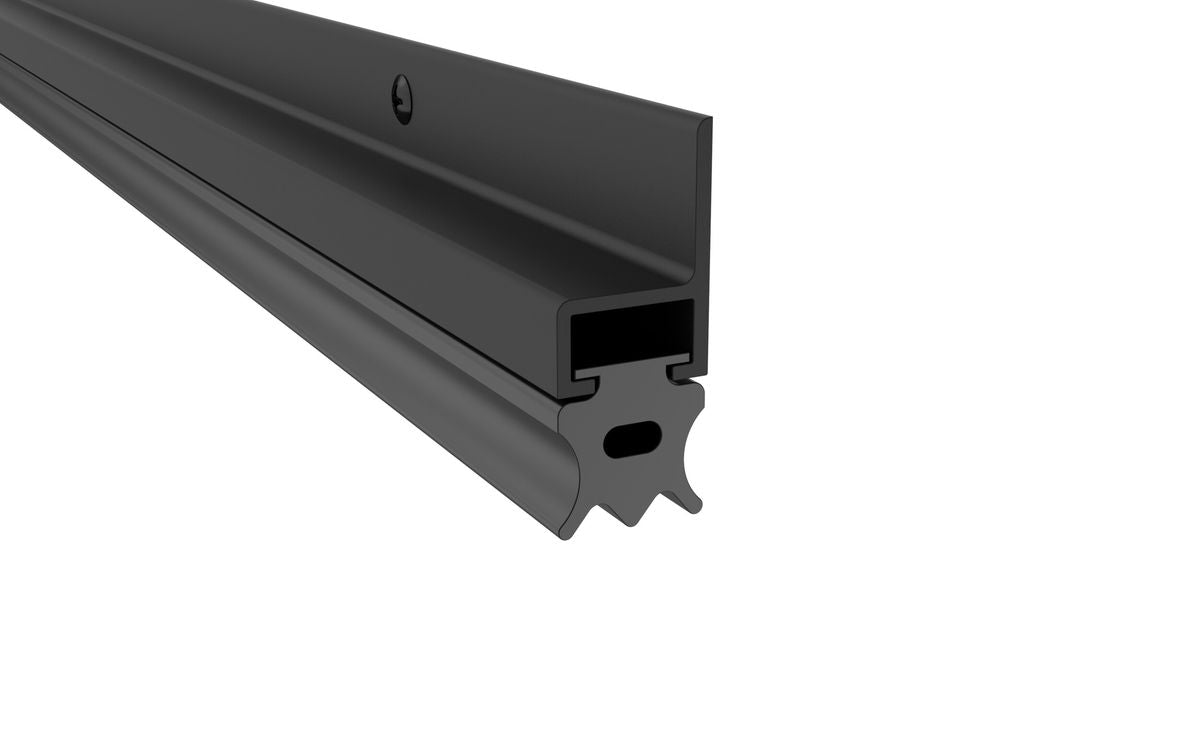

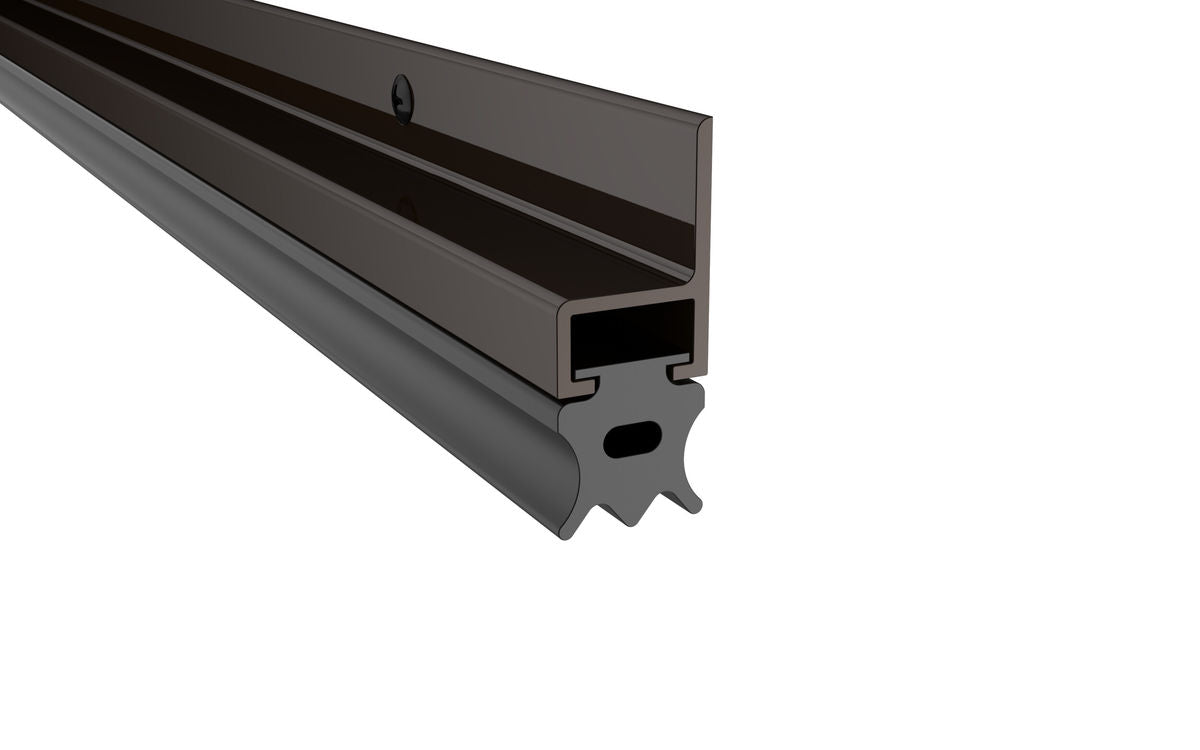

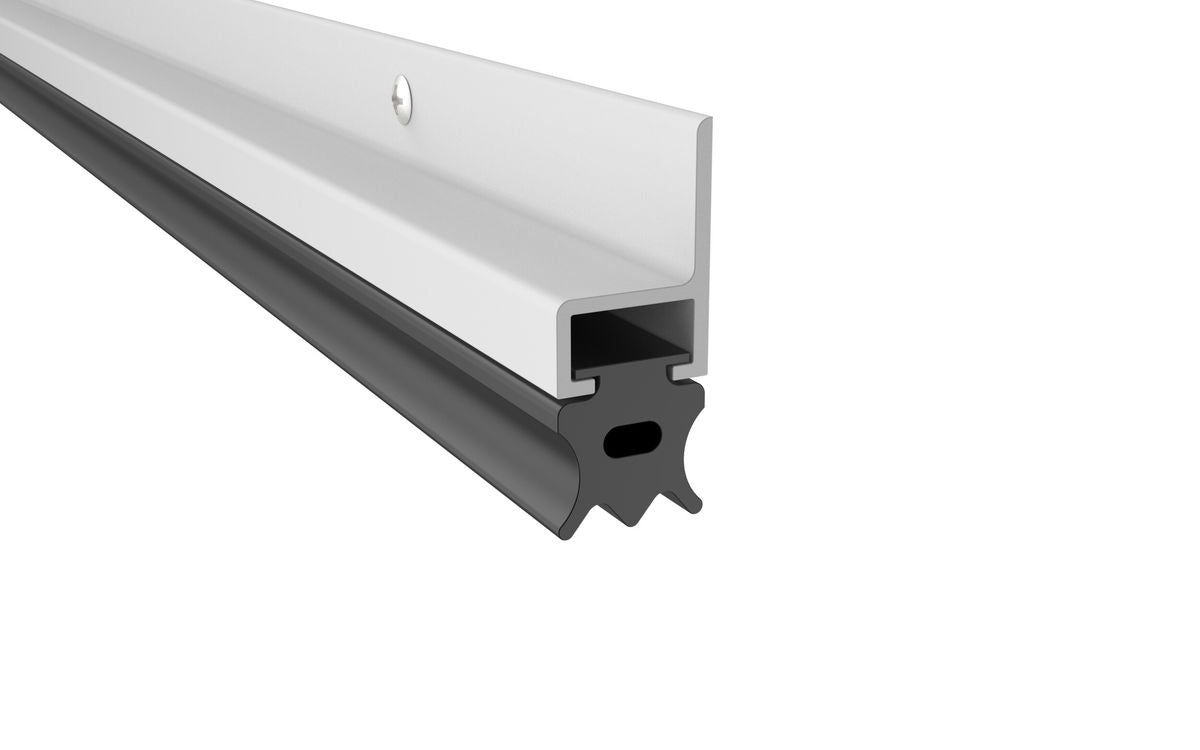

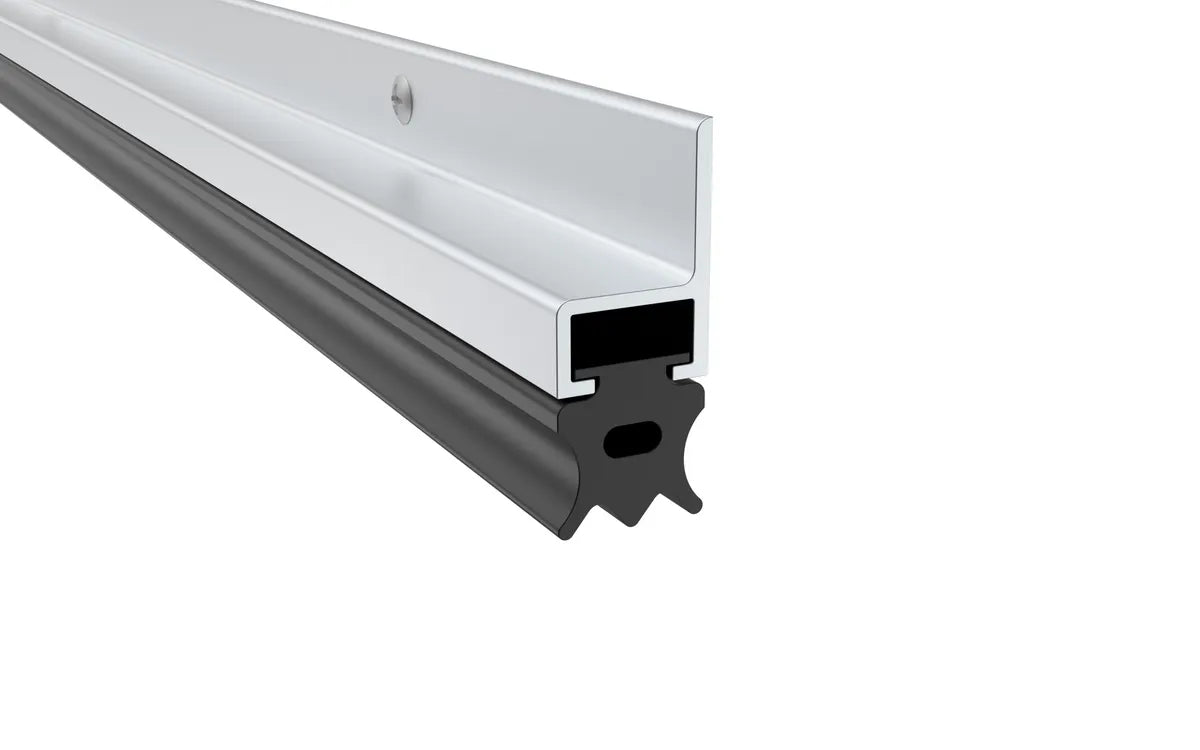

Standard Perimeter Gasketing with Sponge Neoprene Insert

Features

  • Flexible at high and low temperatures
  • Resists deterioration from oily substances
  • Slightly compressible

Options

  • R - Sponge Neoprene or EPDM

Certifications

  • GREENGUARD Gold Certified
  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
  • ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems

Seal Material Color

  • BL - Black

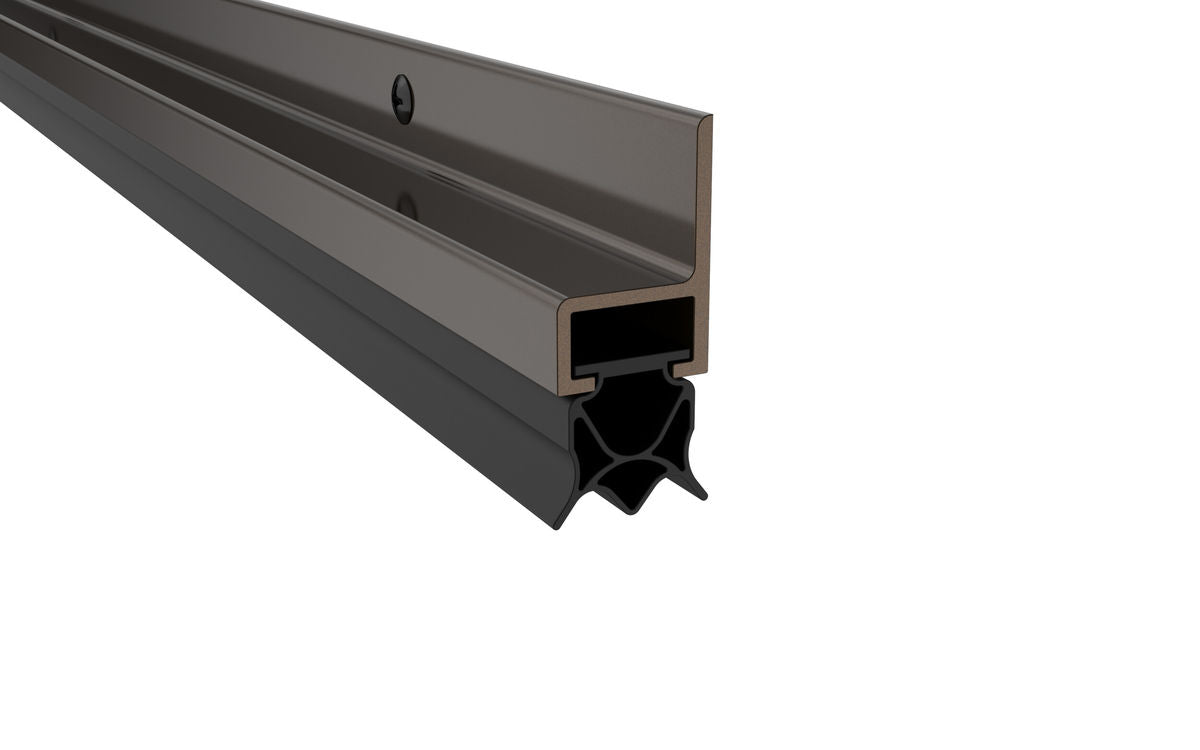

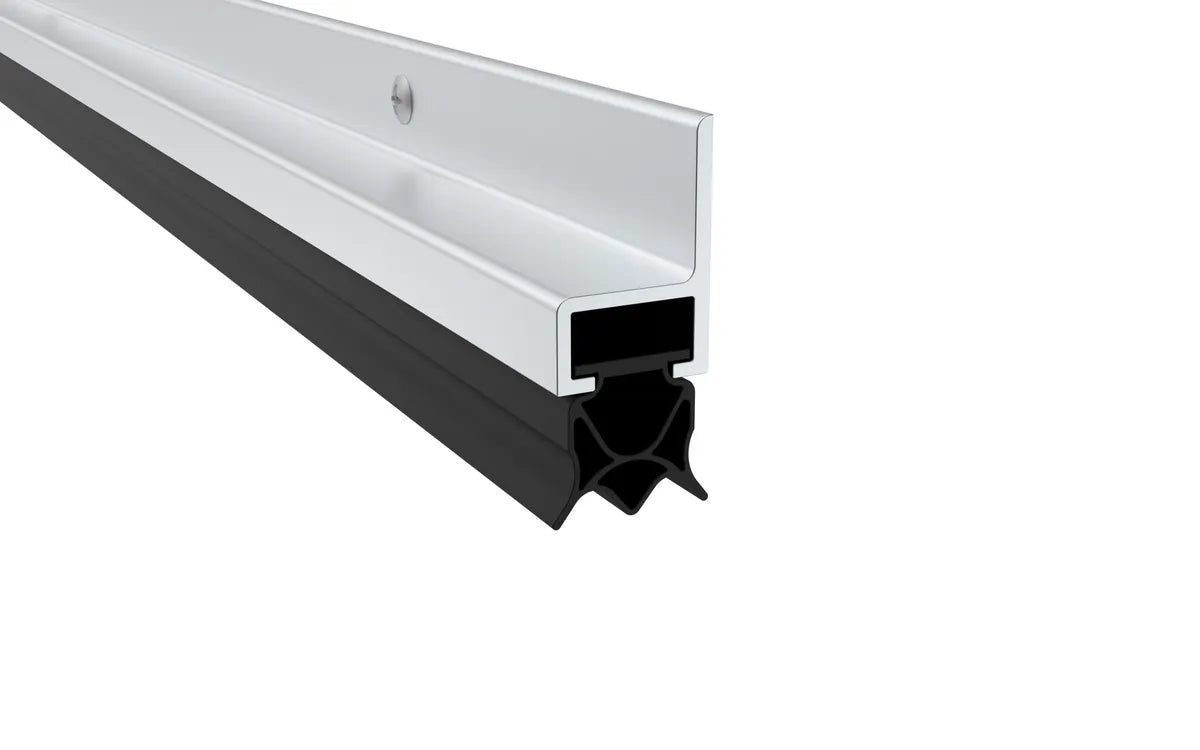

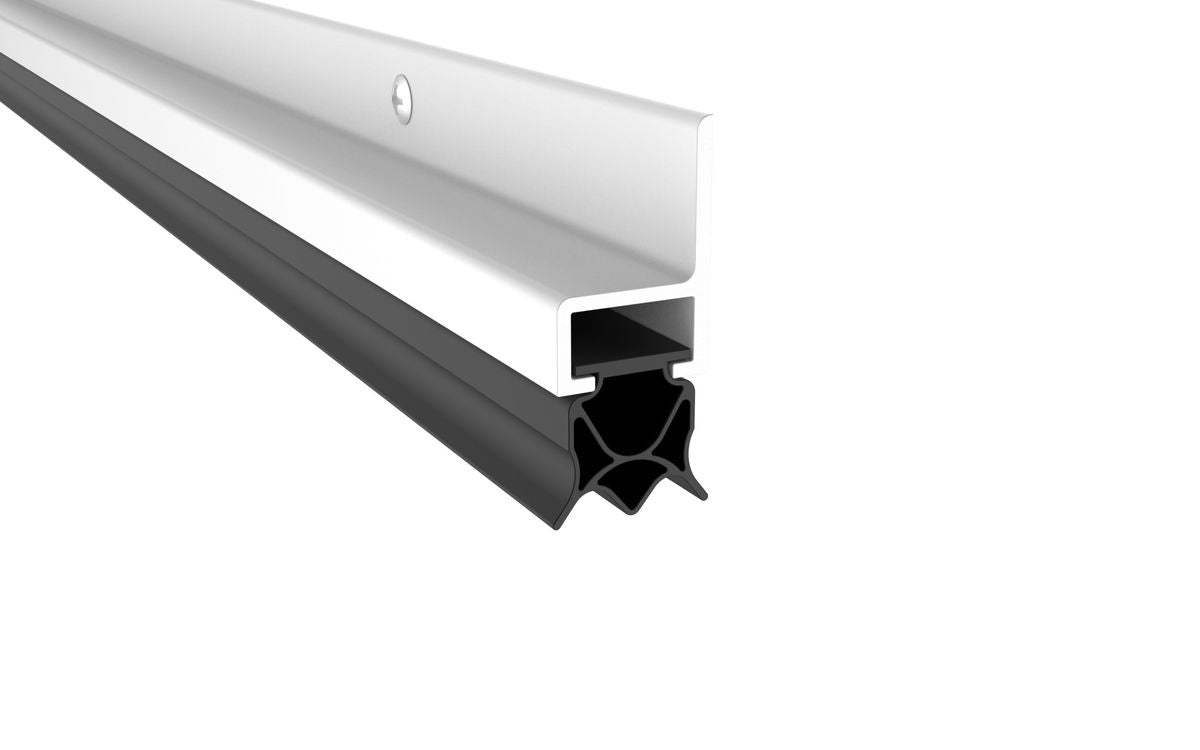

Standard Perimeter Gasketing with PemkoPrene® Insert

Features

  • Rubber-like materials that can be processed like conventional thermoplastics
  • Possesses the same flexibility and durability common to natural rubber compounds
  • Offers excellent design freedom in the field of architectural door seals
  • Outstanding resistance to cleaning fluids and disinfectants
  • Everyday resilience and low impedance to opening or closing requirements on door assemblies
  • Used for general purpose gaskets, weatherstripping for windows and doors, and commercial glazing seal

Certifications

  • GREENGUARD Gold Certified
  • UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
  • UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
  • ASTM E-283-04 (2012)
  • ASTM E 90-2009ANSI/BHMA A156.22 Door
  • Gasketing and Edge Seal Systems

Seal Material Color

  • BL - Black
