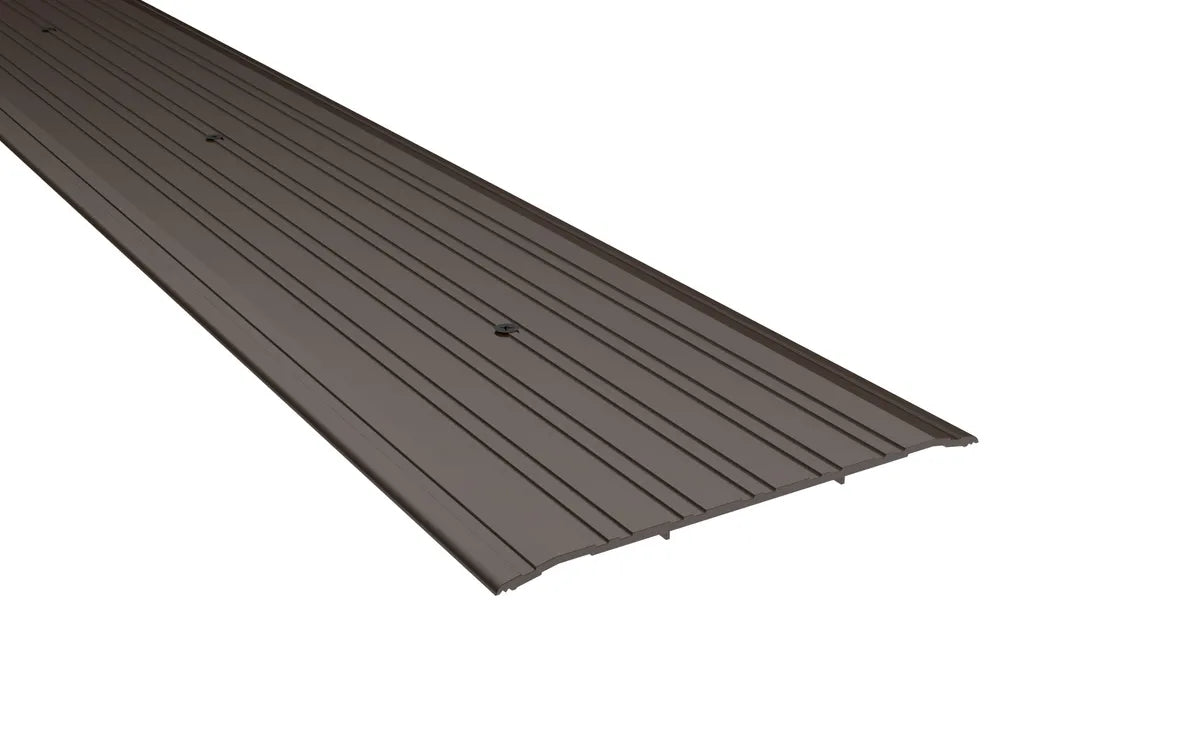

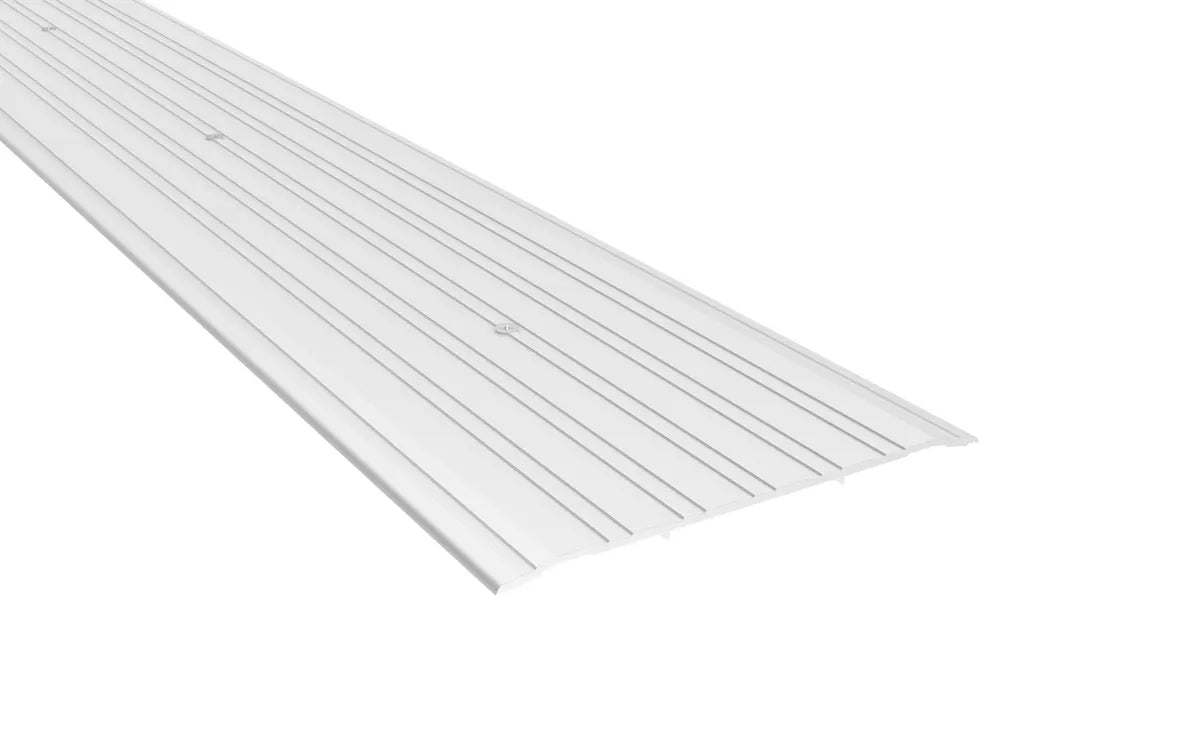

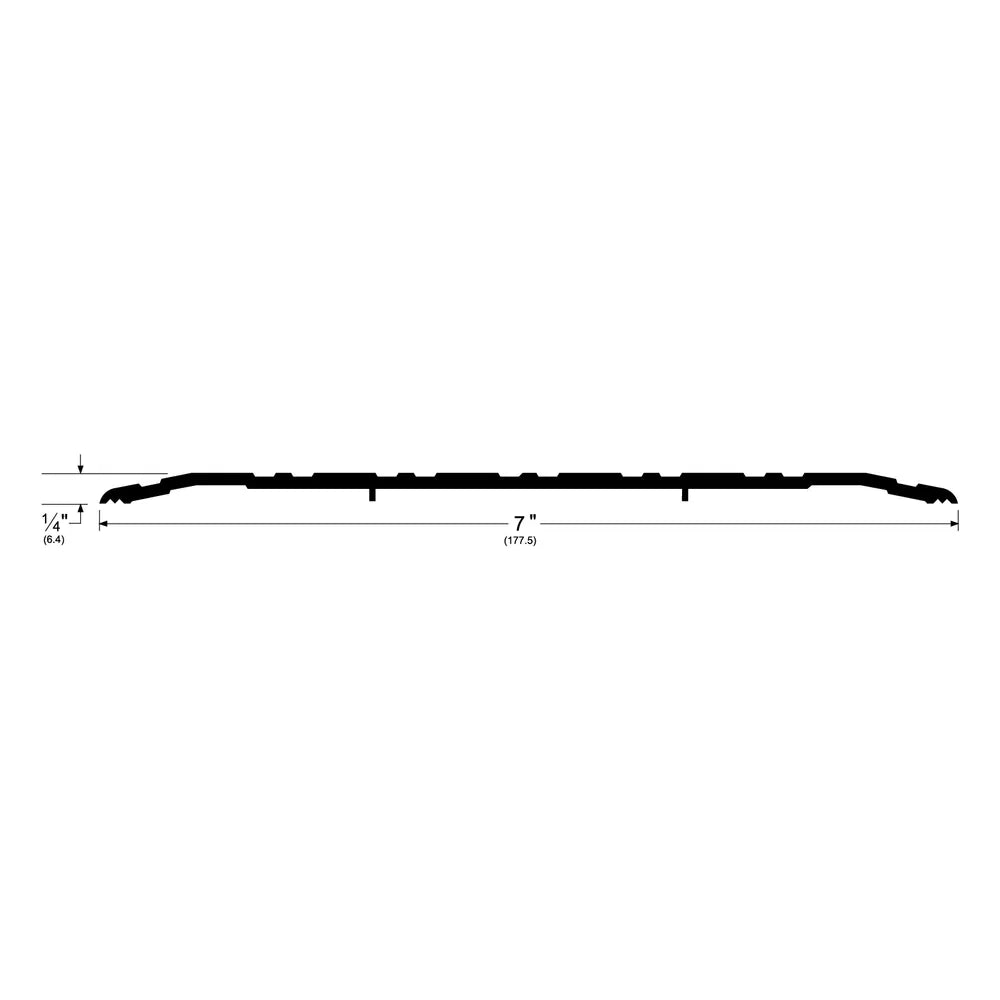

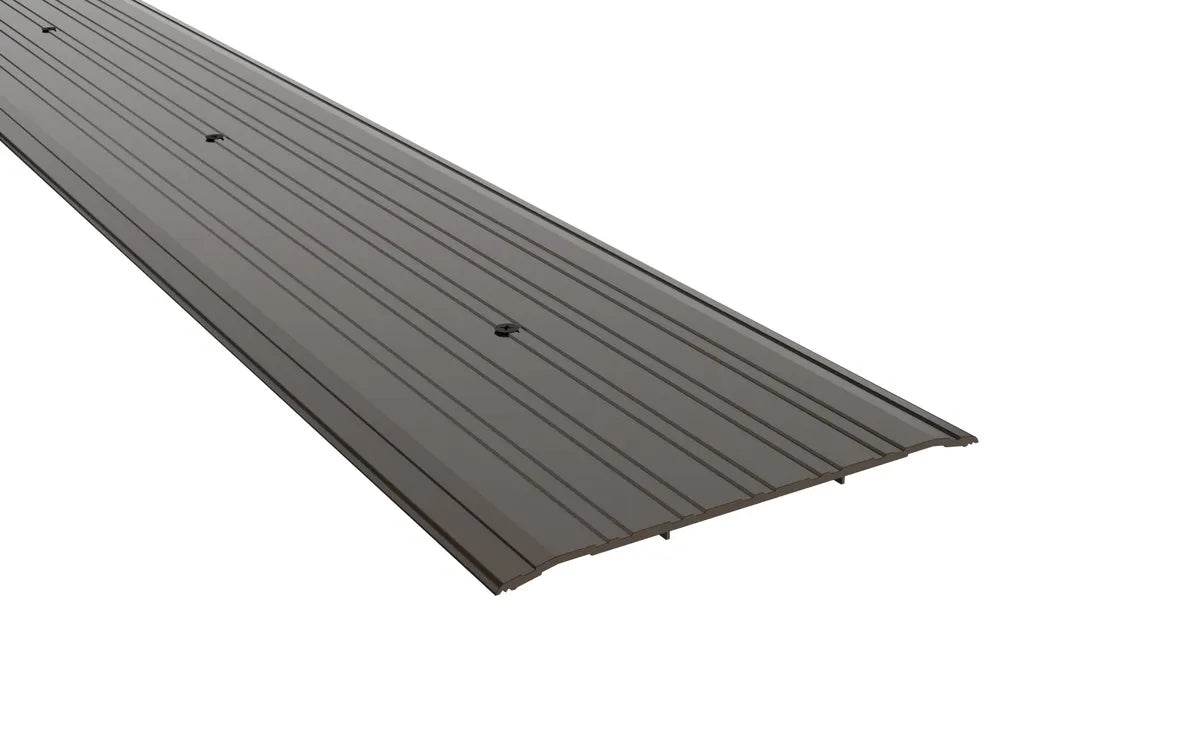

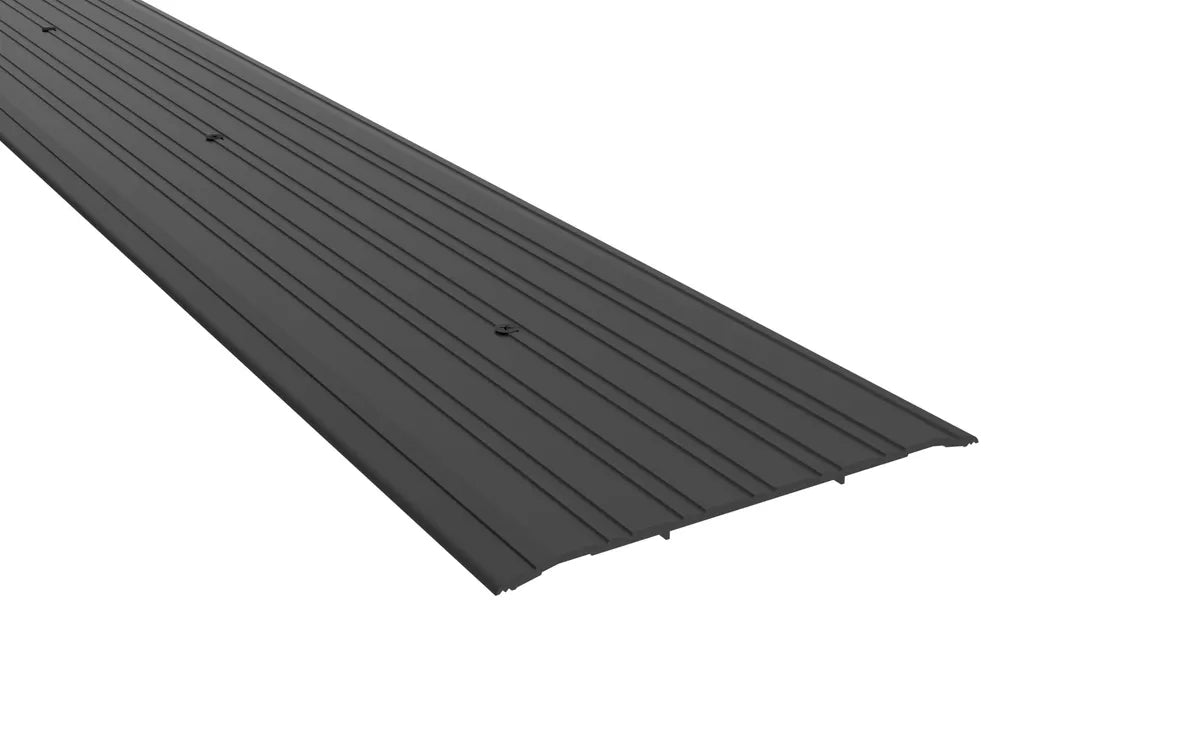

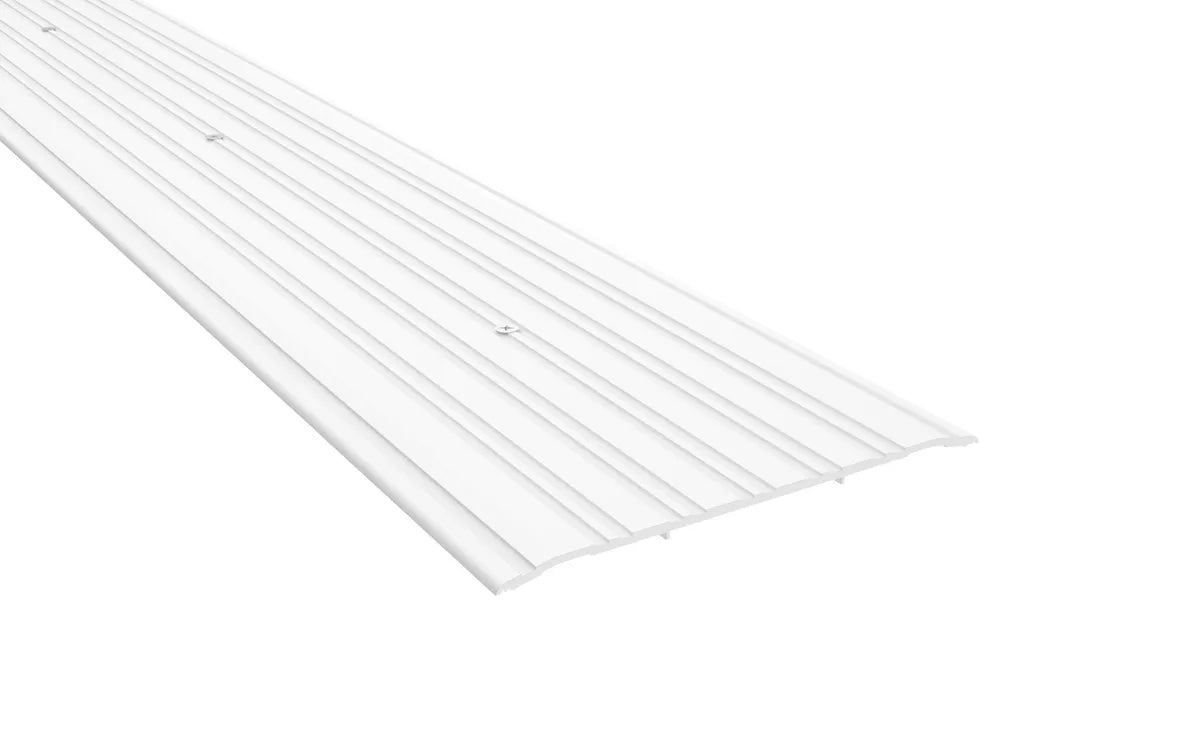

The 276 Series Commercial Flat Saddle Threshold measures at 1/4" high x 7" wide is a symmetrical shape designed to span areas under doors. This threshold is barrier-free, BHMA certified, and fire rated. It can be used in offset conditions with the use of an elevator.
Features
-
Wood screw standard, other fasteners available
-
Symmetrical design
-
Used under doors
-
Barrier-free and fire rated
Benefits
-
ADA accessible
-
Can be used in offset conditions with use of elevator
Specifications
-
Base Material: Aluminum, Brass
-
Fasteners: SMS #10 X 1"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1/4"
-
Weight: 1.12 lbs
-
Width: 7"
Certifications
-
UL 10C positive pressure
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
Options
-
L-Notch
-
U-Notch
