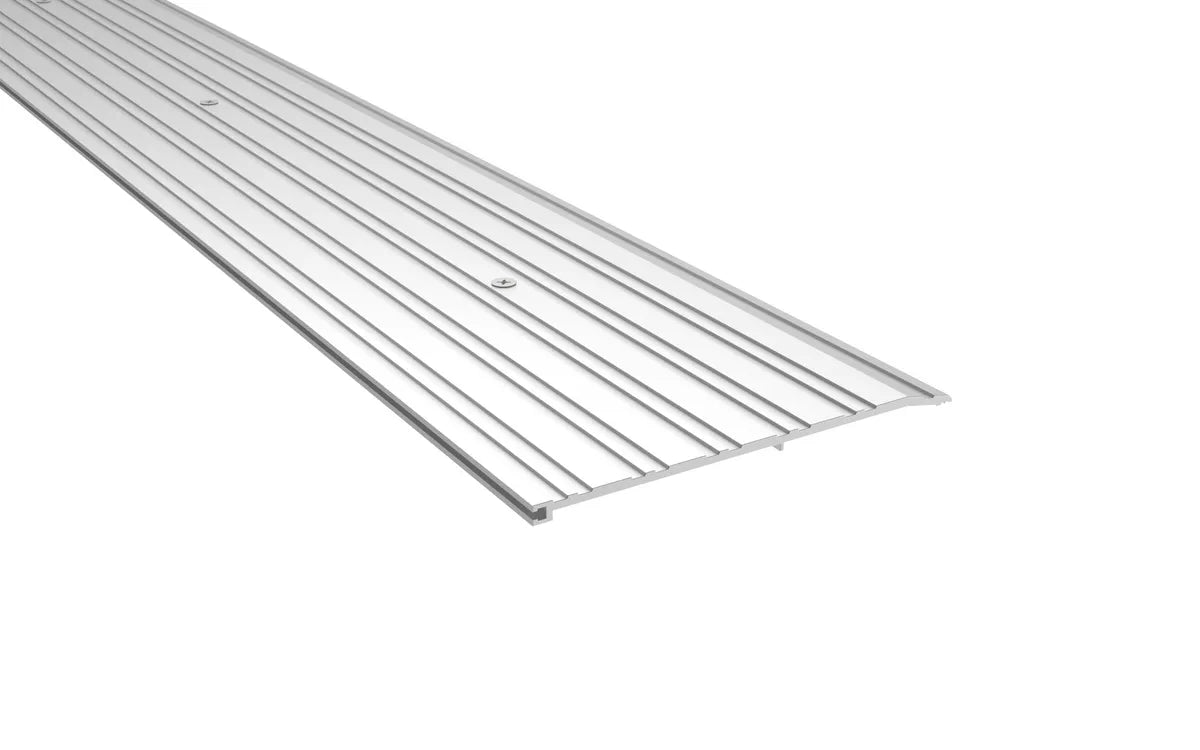

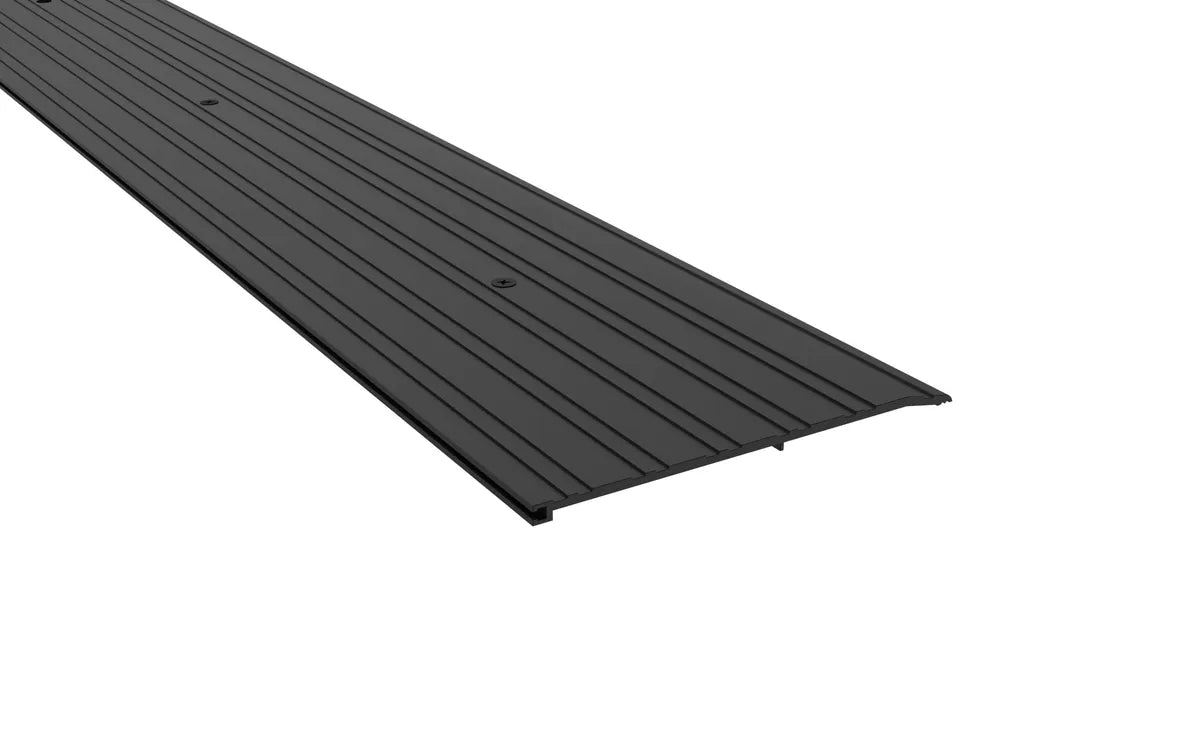

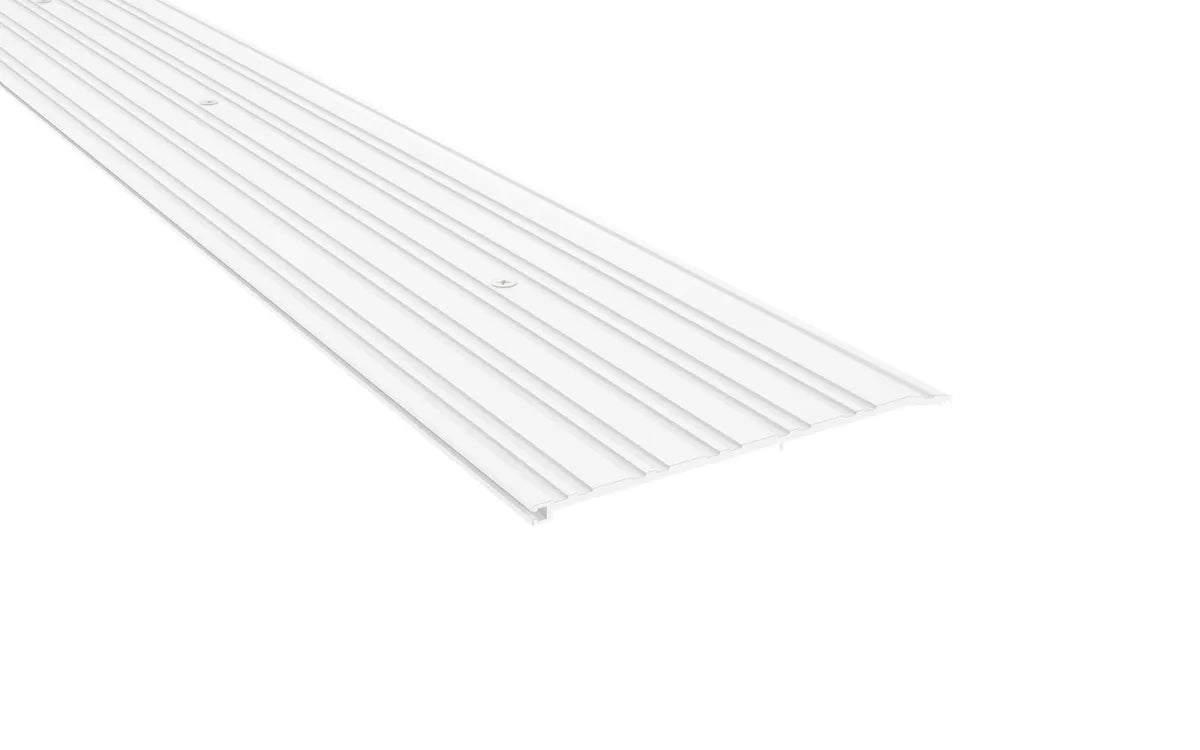

The 2755 Series Half Saddle Joiner Threshold, with a 1/4-inch profile and 5" width, is designed to facilitate a seamless transition and accommodate custom configurations in flooring. For ADA compliance, it can be combined with other half saddles on one or both sides; if combined on only one side, the opposite side should be mounted flush with an existing offset, ensuring adherence to the specified application requirements.
Features
-
Integrated channel to connecting thermal keys
-
Wood screw standard, other fasteners available
Benefits
-
ADA accessible if butted to a 1/4" offset on both sides
-
Can be used with other half saddles to make custom size and configuration saddles
-
Creates a seamless transition between different floor surfaces
Specifications
-
Base Material: Aluminum
-
Fasteners: SMS #10 X 1"
-
Maximum Length: 185"
-
Minimum Length: 24"
-

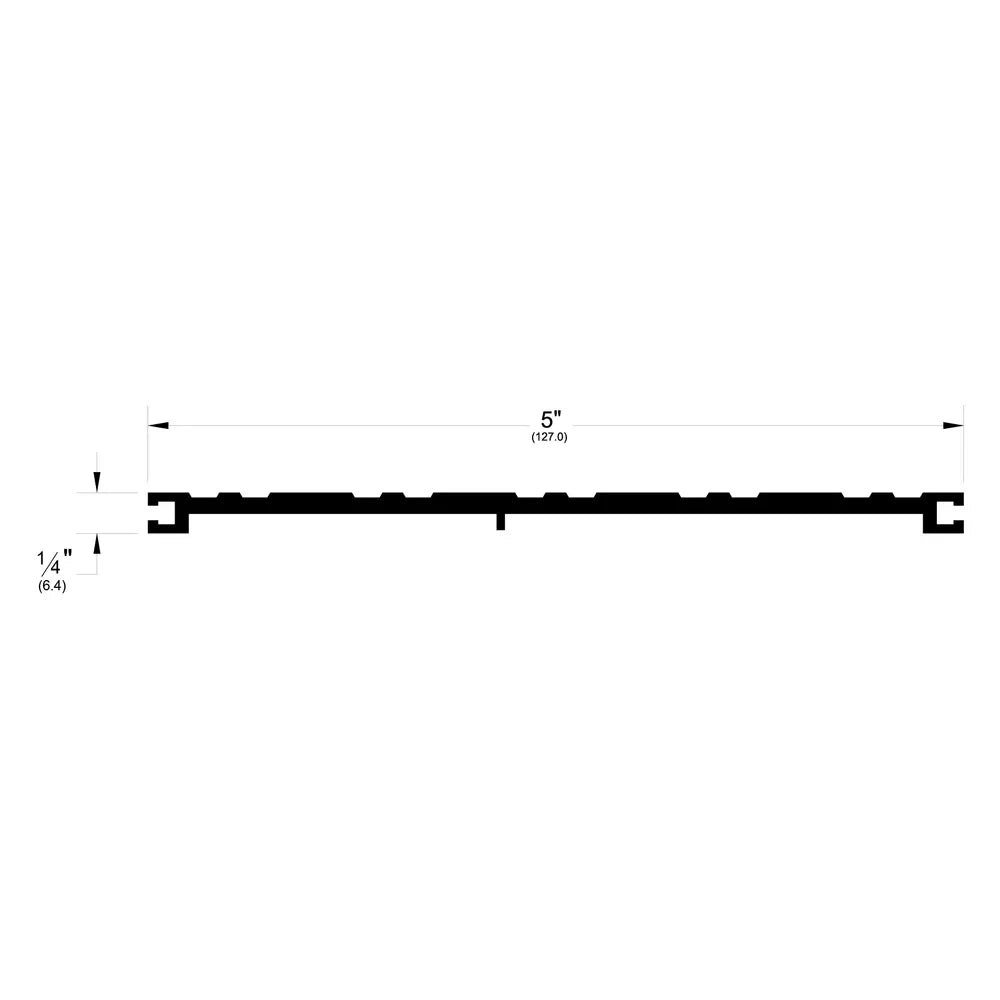

Overall Height: 1/4"
-
Width: 5"
Certifications
-
UL 10C positive pressure
-
UL 4L10 listed
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
Options
-
L-Notch
-
U-Notch
