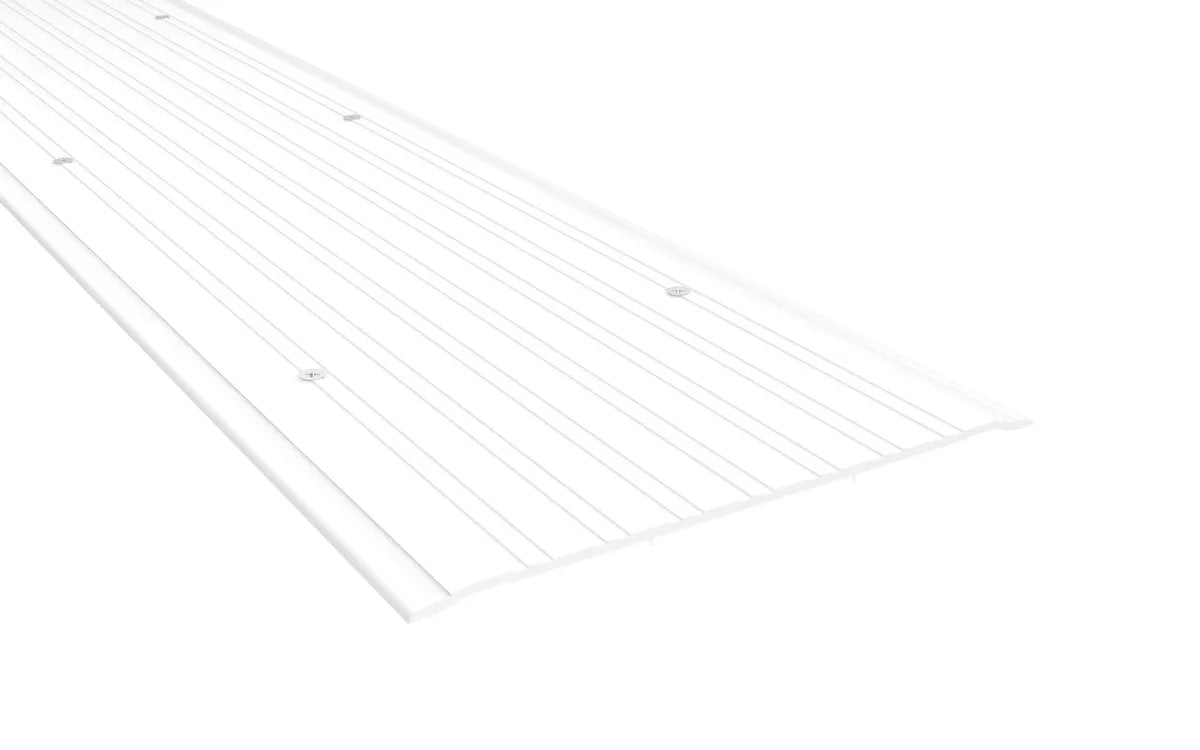

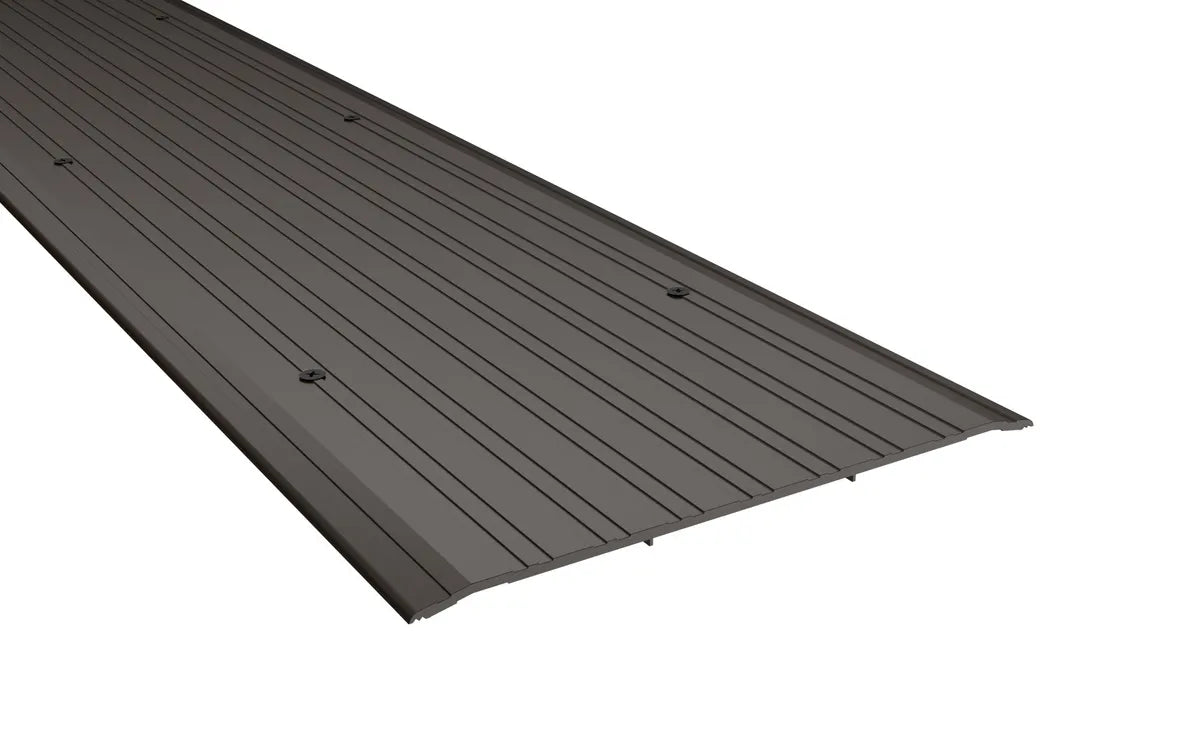

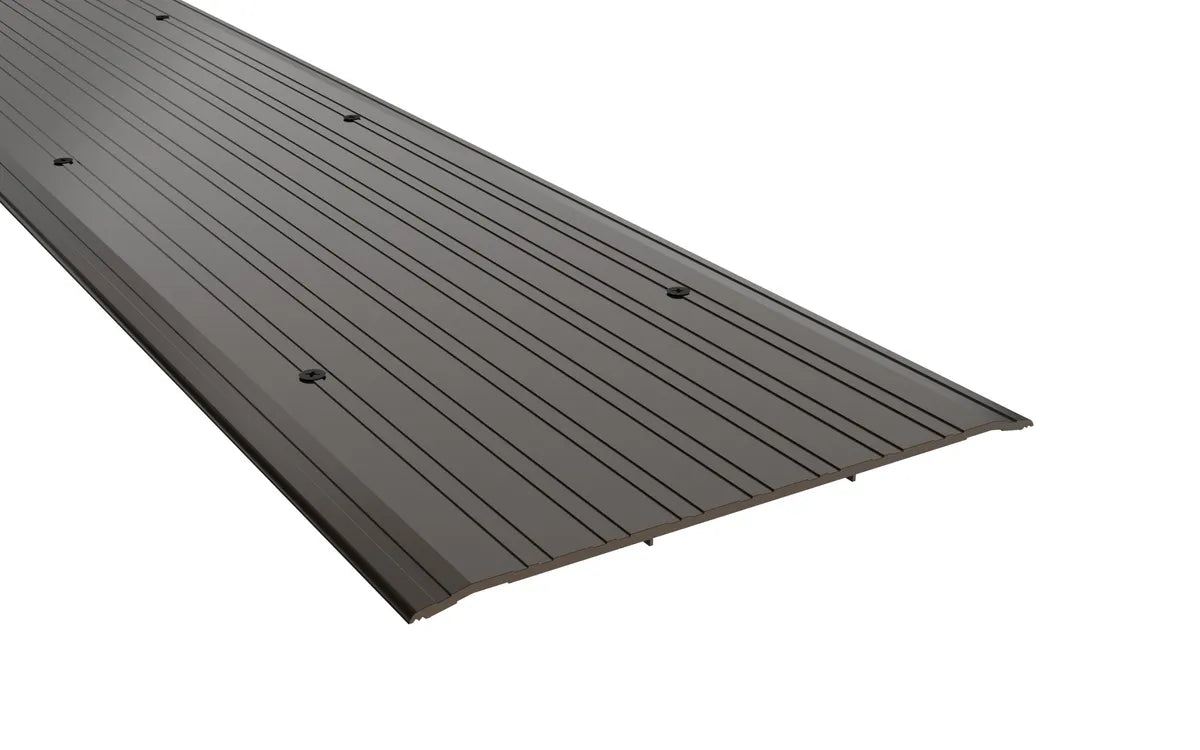

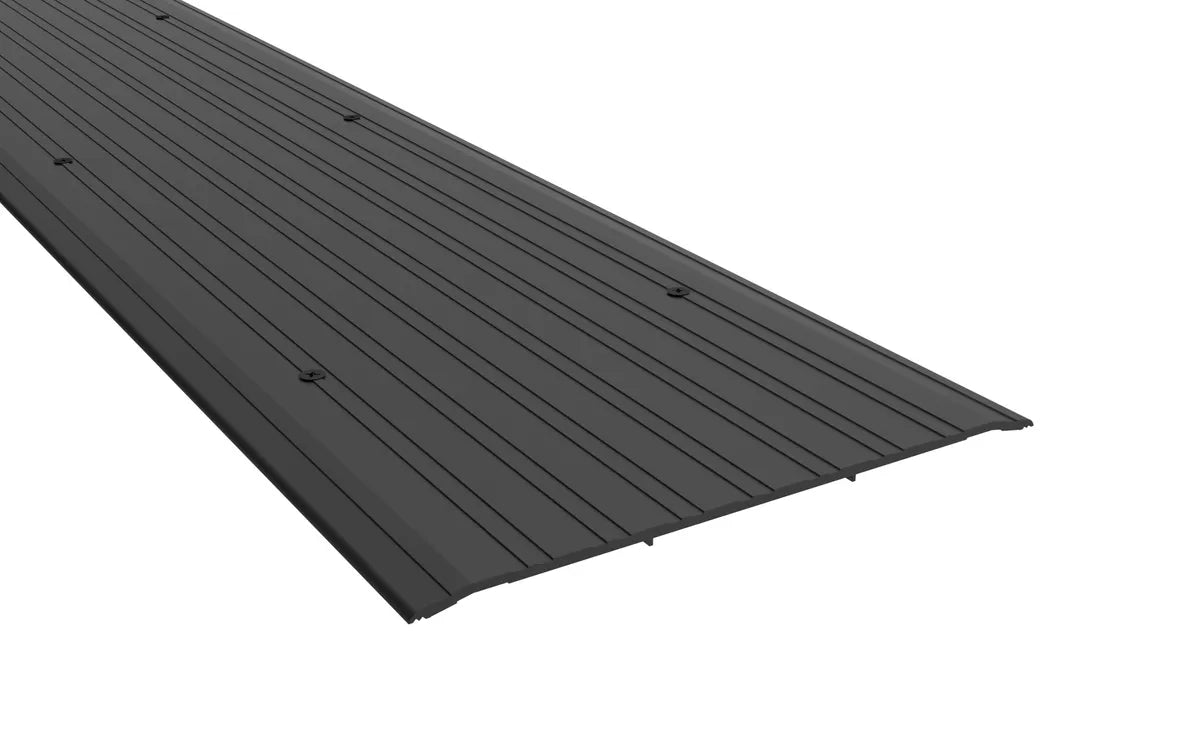

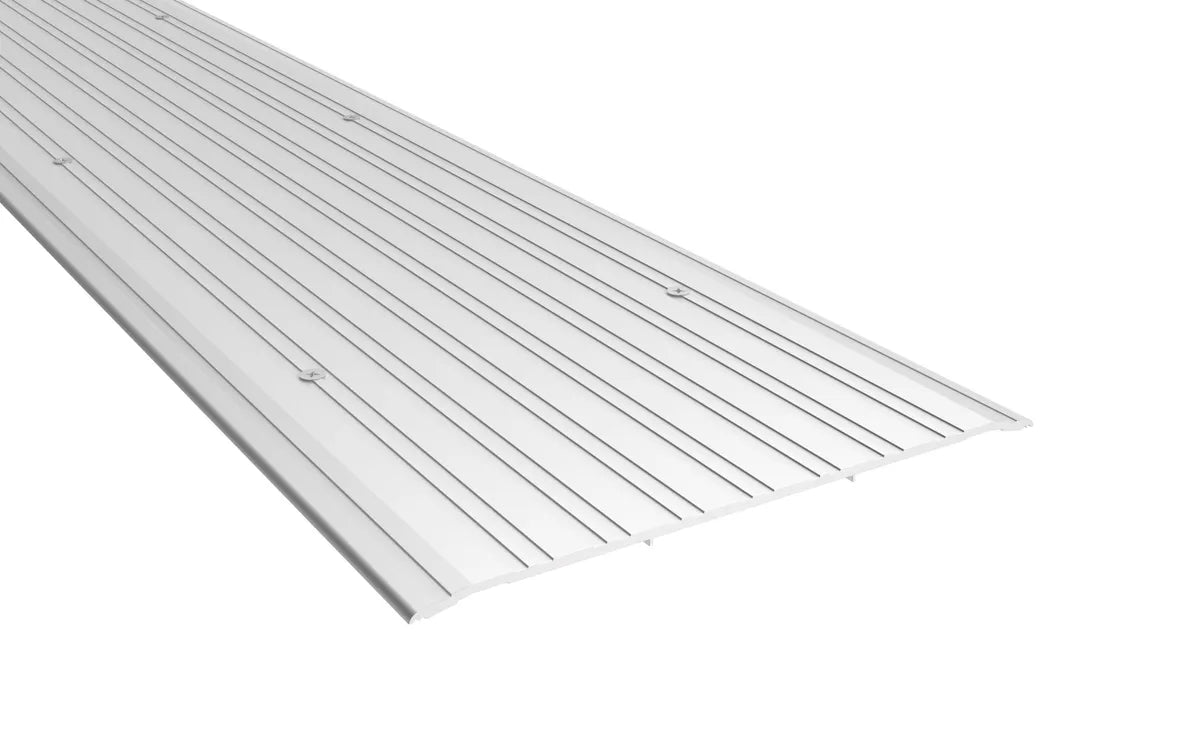

The 2749 Series Commercial Full Saddle Threshold is a 9" wide extruded aluminum threshold that is ADA compliant and fire rated. It has a 1/4" height clearance, creating a smooth transition between two floor surfaces. The threshold is available in various finishes and can be custom cut to size.
Features
-
Wood screw standard, other fasteners available
-
Barrier-free and fire rated
-
Length custom cut to size
Benefits
-
ADA accessible
-
Creates a smooth transition between two floor surfaces

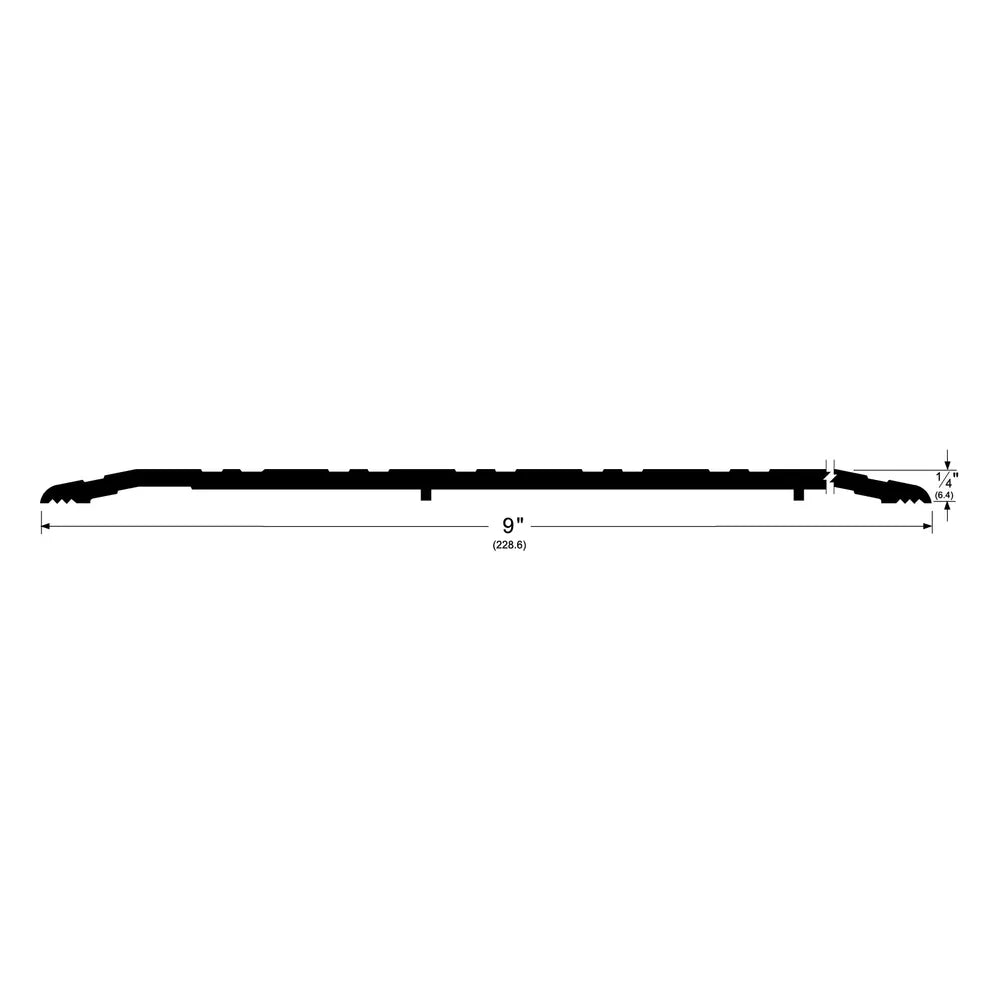

Specifications
-
Base Material: Aluminum
-
Fasteners: SMS #10 X 1"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1/4"
-
Weight: 1.47 lbs
-
Width: 9"
Certifications
-
UL 10C positive pressure
-
UL 4L10 listed
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
Options
-
L-Notch
-
U-Notch
