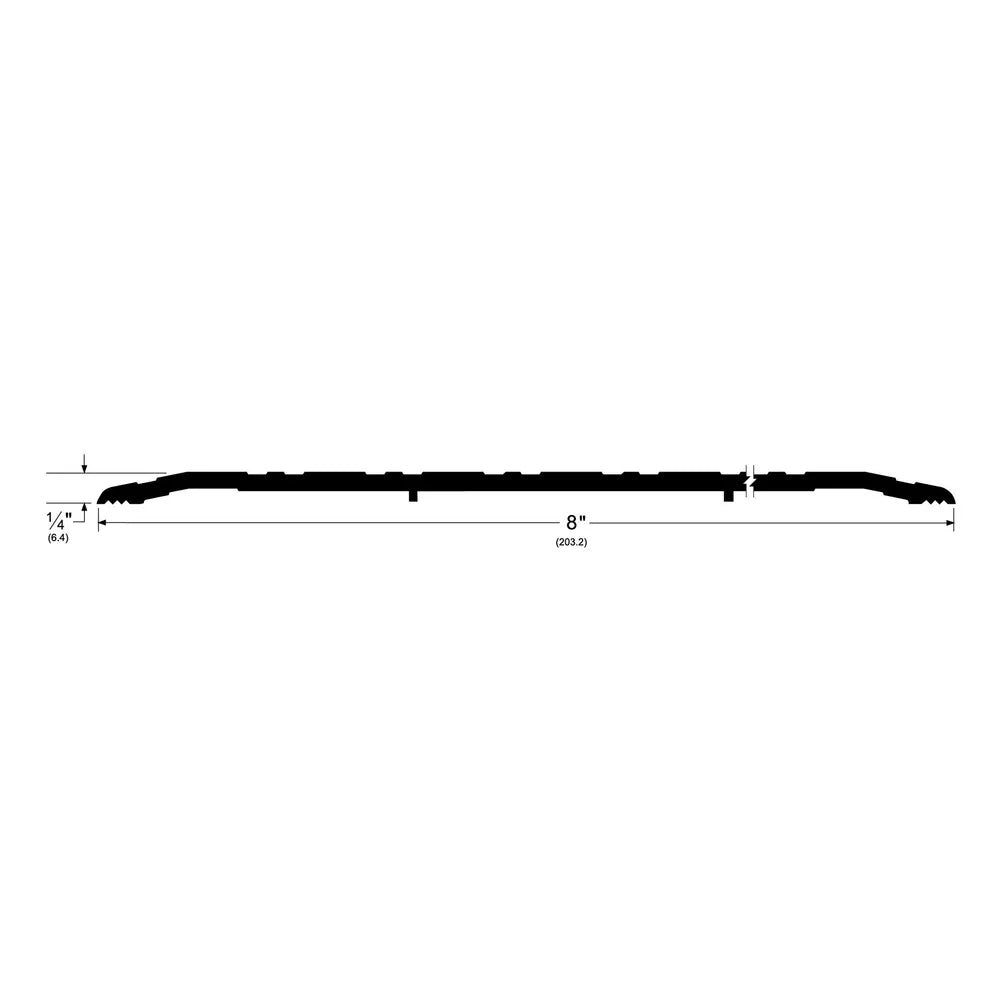

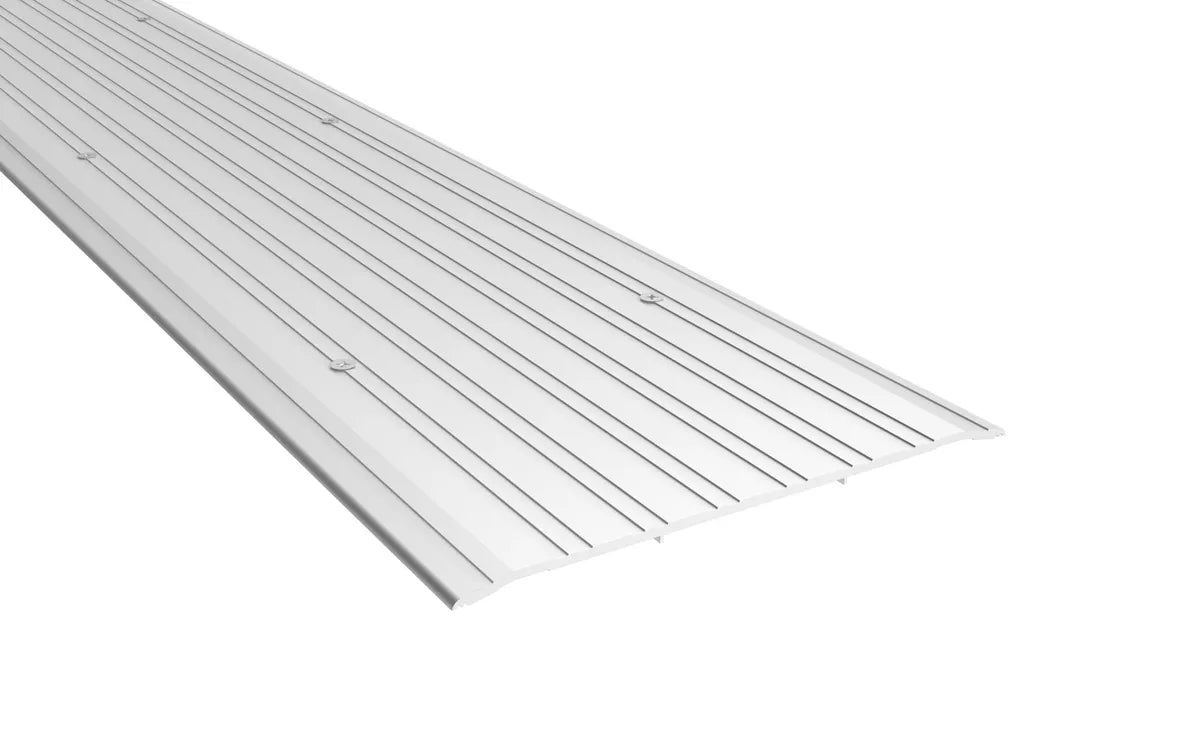

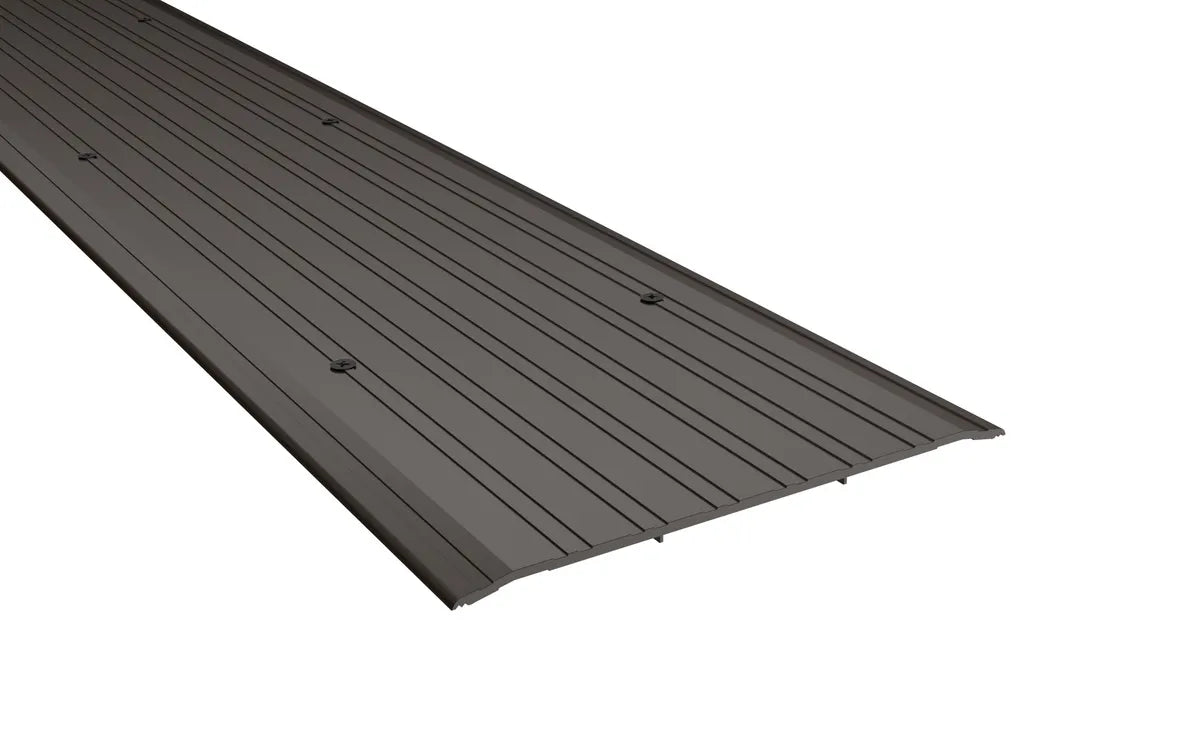

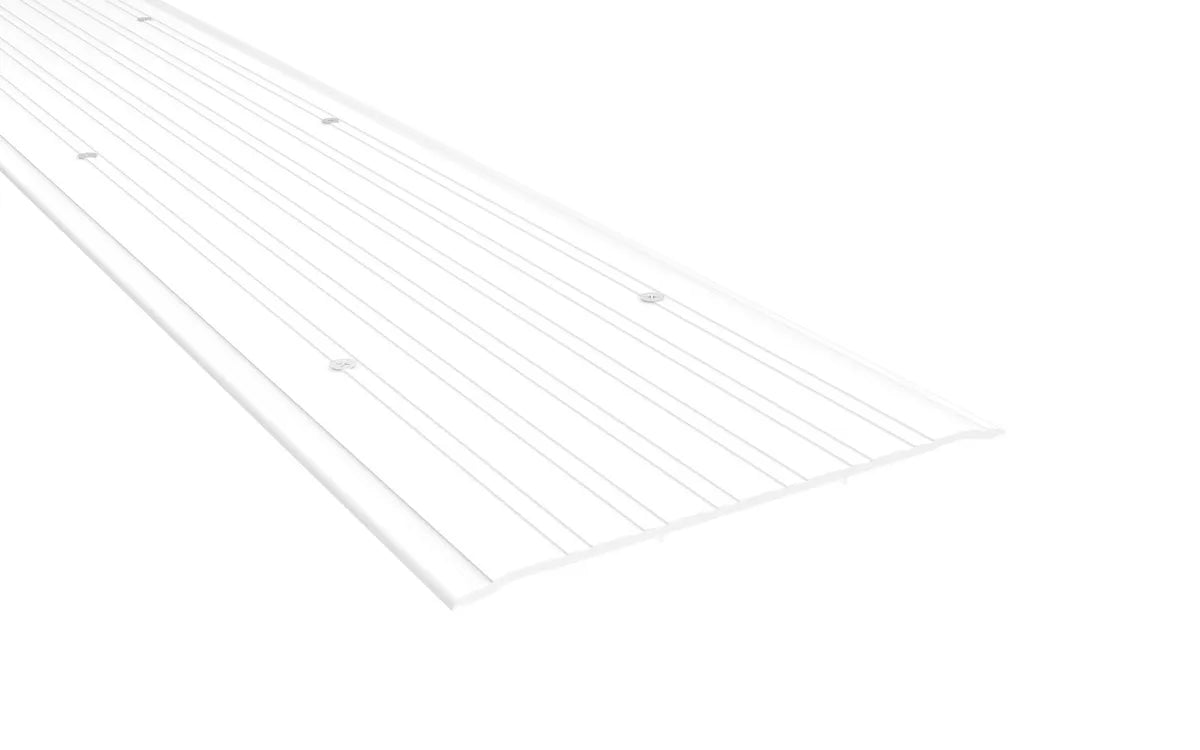

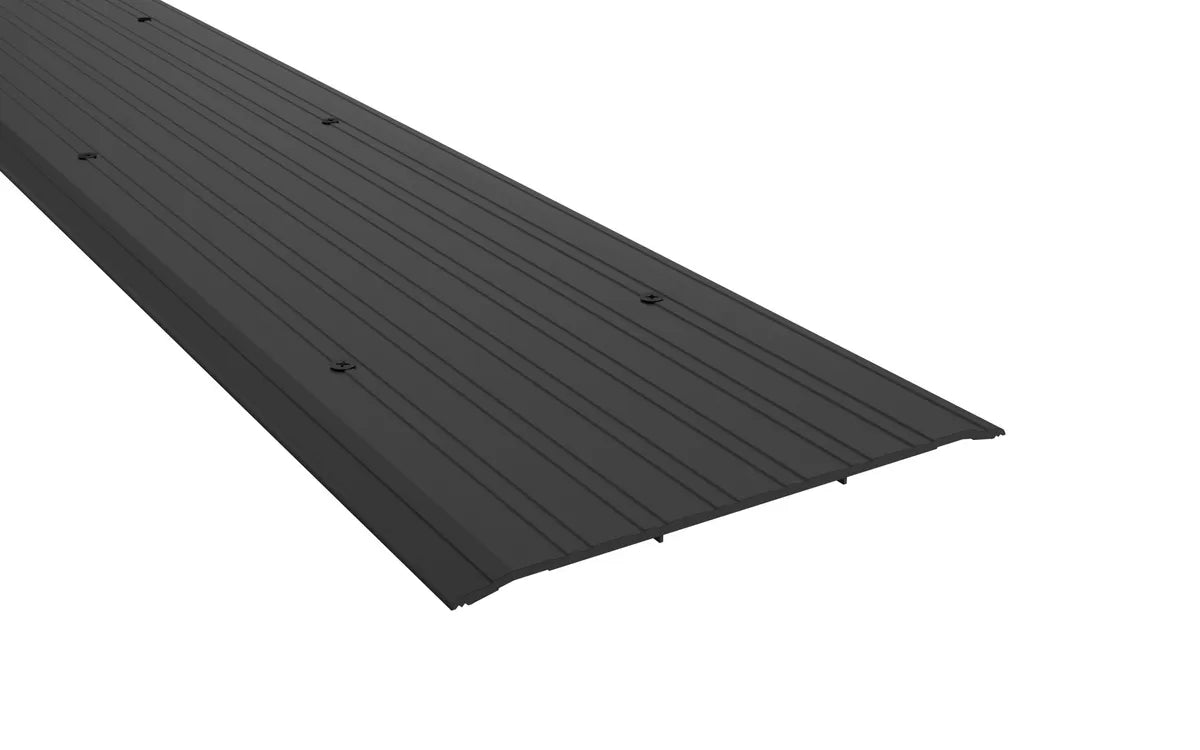

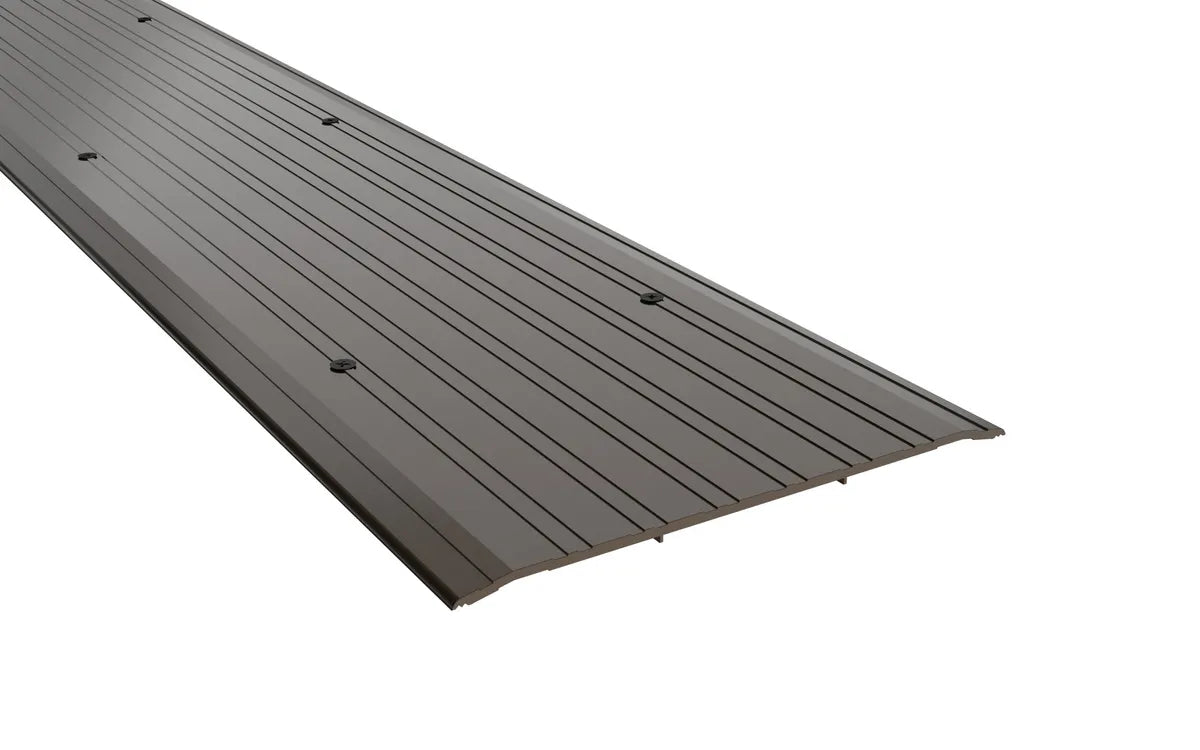

The 2748 Series ADA compliant and fire rated 8" wide Flat Saddle Threshold is extruded from high-quality materials, providing long-lasting superior performance. It has a height clearance of 1/4" which aids in insulating a room and creates a smooth transition between two floor surfaces. Available in various finishes, the length is custom cut to size.
Features
-
Barrier-free and fire rated
-
Length custom cut to size
-
Wood screw standard, other fasteners available
Benefits
-
ADA accessible
-
Long-lasting, superior performance
-
Aids in room insulation
-
Creates a smooth transition between two floor surfaces
Specifications
-
Base Material: Aluminum
-
Fasteners: SMS #10 X 1"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1/4"
-
Weight: 1.3 lbs
-
Width: 8"
Certifications
-
UL 10C positive pressure
-
UL 4L10 listed
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
Options
-
L-Notch
-
U-Notch
