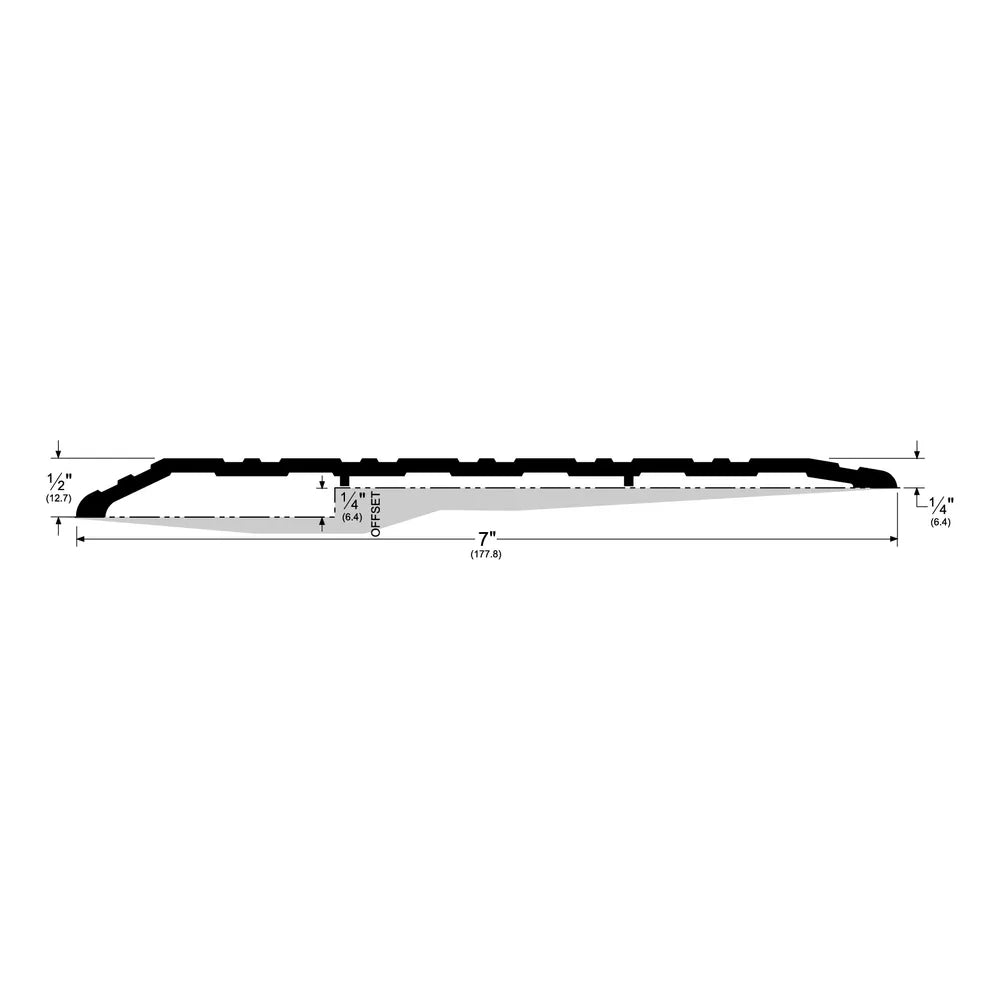

Measuring 7" inches in width and 1/2" in height with a customized in length, the 2727 Series Offset Saddle Threshold is designed to create a smooth transition between different floor surfaces, commonly used when meeting tile or carpet on one side. This aluminum threshold, with a fire-rated construction, is specifically crafted to accommodate a 1/4" height change in floor surfaces.
Features
-
Barrier-free and fire rated
-
Length custom cut to size
-
Used when meeting tile or carpet on one side
-
Wood screw standard, other fasteners available
Benefits
-
Provides smooth transition for 1/4" offsets
-
ADA accessible
Specifications
-
Base Material: Aluminum
-
Fasteners: WS #10 x 1.5"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1/2"
-
Weight: 1.13 lbs
-
Width: 7"
Certifications
-
UL 10C positive pressure
-
UL 4L10 listed
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
Options
-
L-Notch
-
U-Notch
