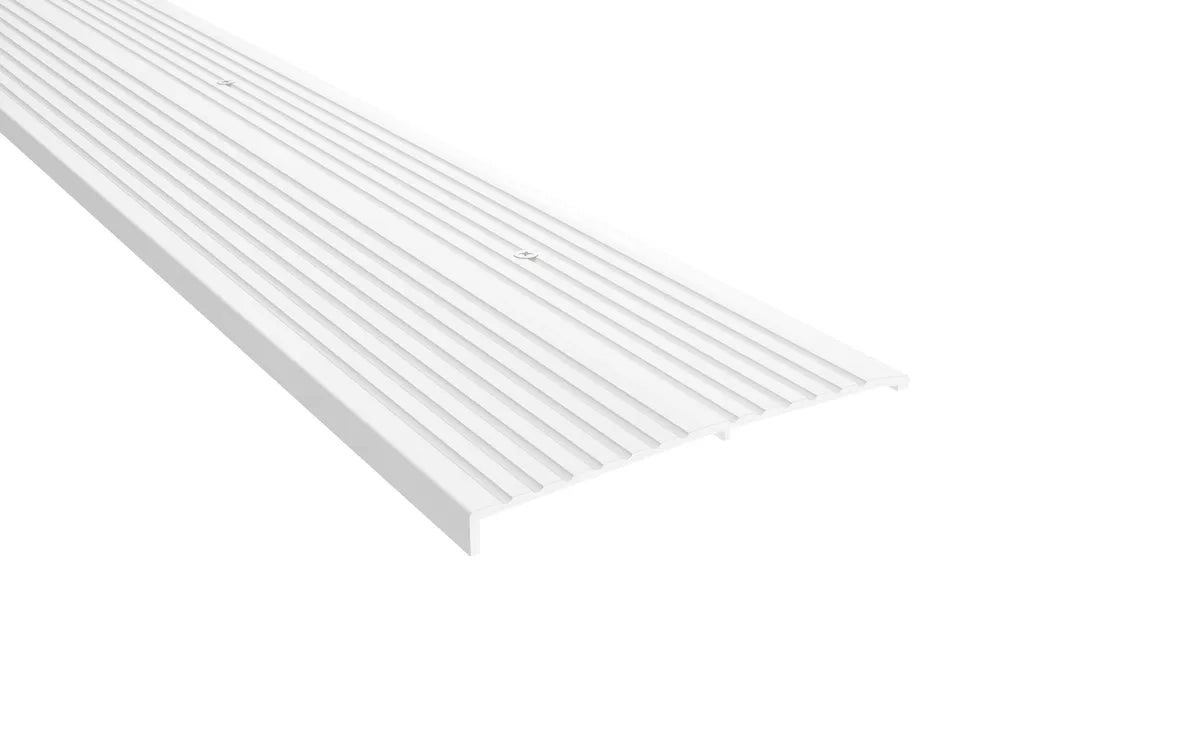

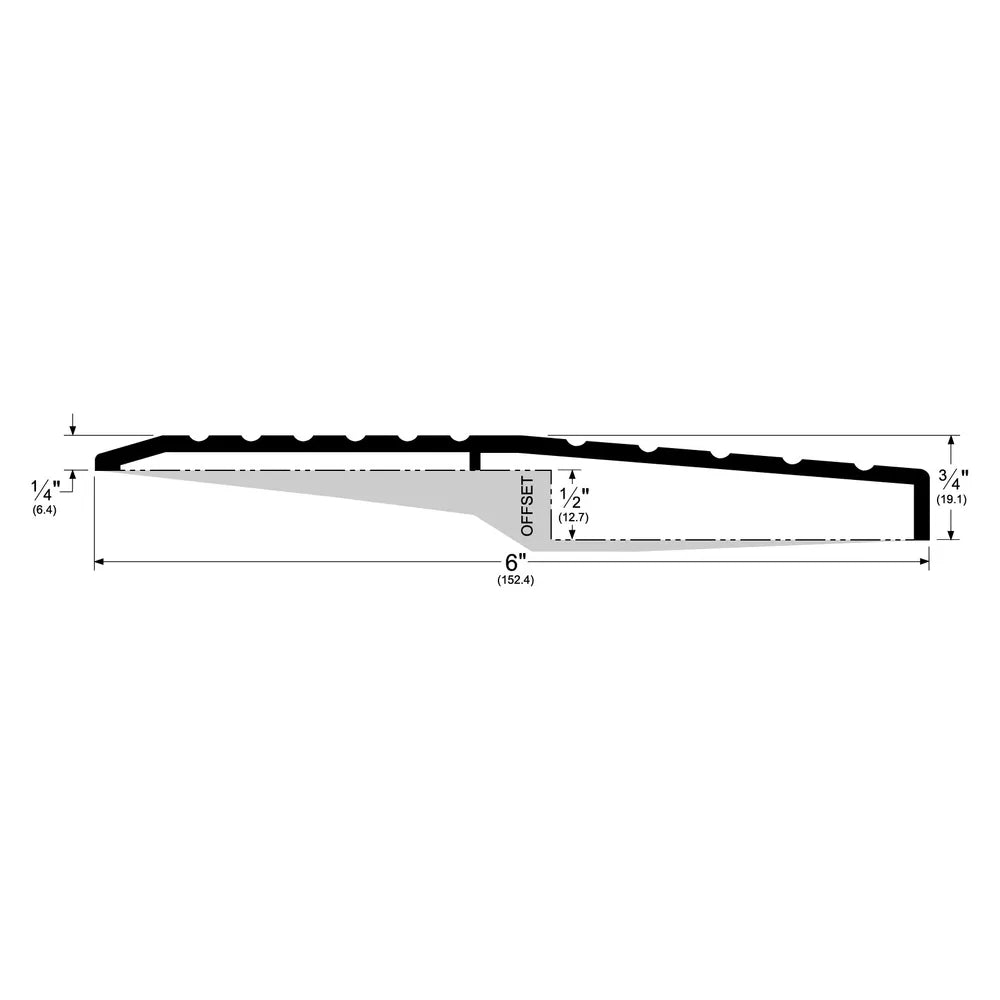

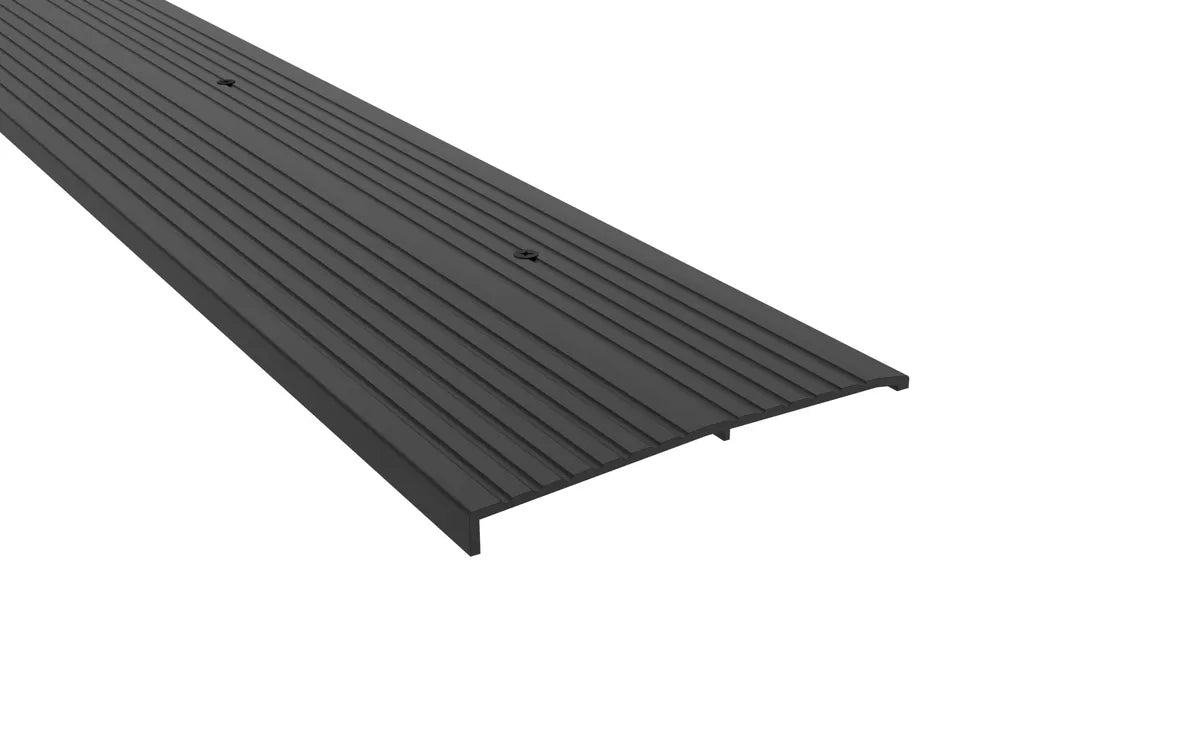

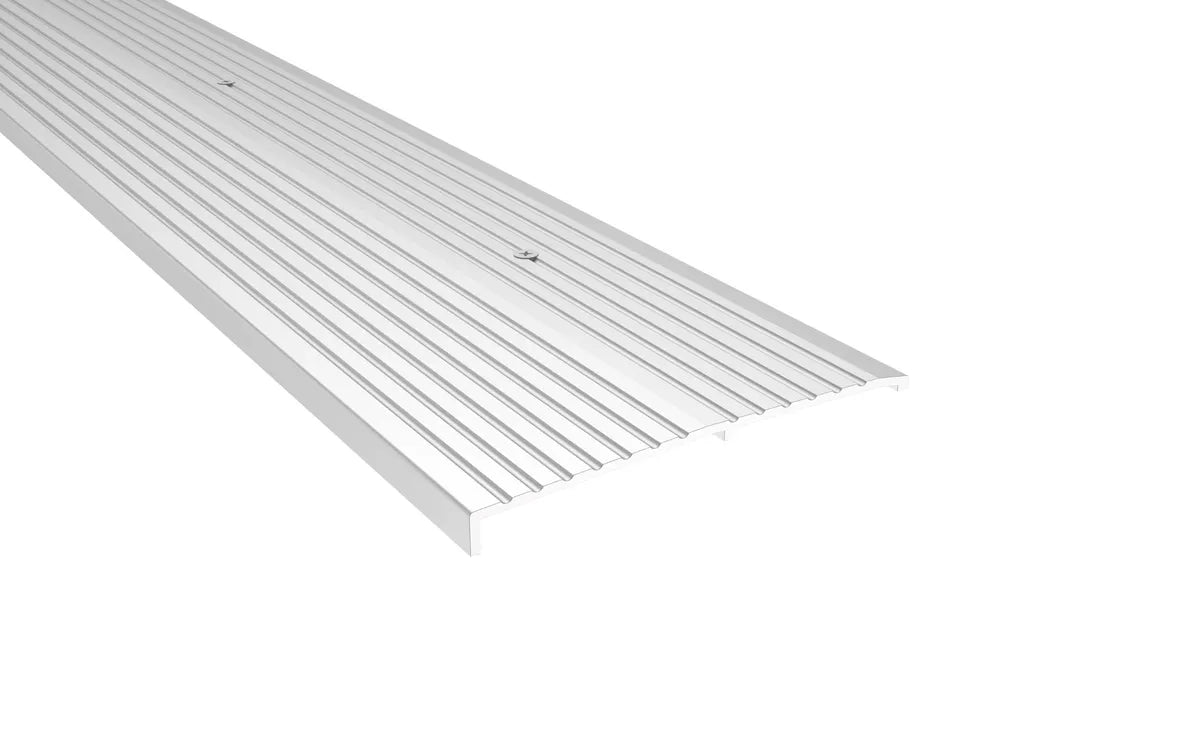

The 257 Series Barrier-Free Ramp Offset Threshold, measuring 6" in width, is purposefully designed for convenient access in areas with a 1/2" center offset and seamlessly pairs with the 259 Series to form a 12" wide ramp. Constructed from durable materials suitable for both interior and exterior use, it is recommended to enhance moisture protection with the PemKote non-slip coating. Notably, it achieves ADA compliance when utilized in conjunction with the 259 Series.
Features
-
When used with Pemko 259, combination becomes barrier-free
-
Use 257 and Pemko 259 together, or use 257 with an abutted 1:12 concrete slope
-
When used as cover plate assembly longer spindle may be required
-
Not ADA-compliant when used alone or at a door opening
-
PemKote™ is highly recommended, especially in exterior conditions where moisture may be present
Benefits
-
For both interior and exterior use
-
Superior durability
-
Optional PemKote enhances moisture protection
Specifications
-
Base Material: Aluminum, Brass
-
Fasteners: WS #10 x 1"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 3/4"
-
Weight: 0.88 lbs
-
Width: 6"
Certifications
-
UL 10C positive pressure
-
UL 4L10 listed
-
ANSI/BHMA A156.21 Thresholds
