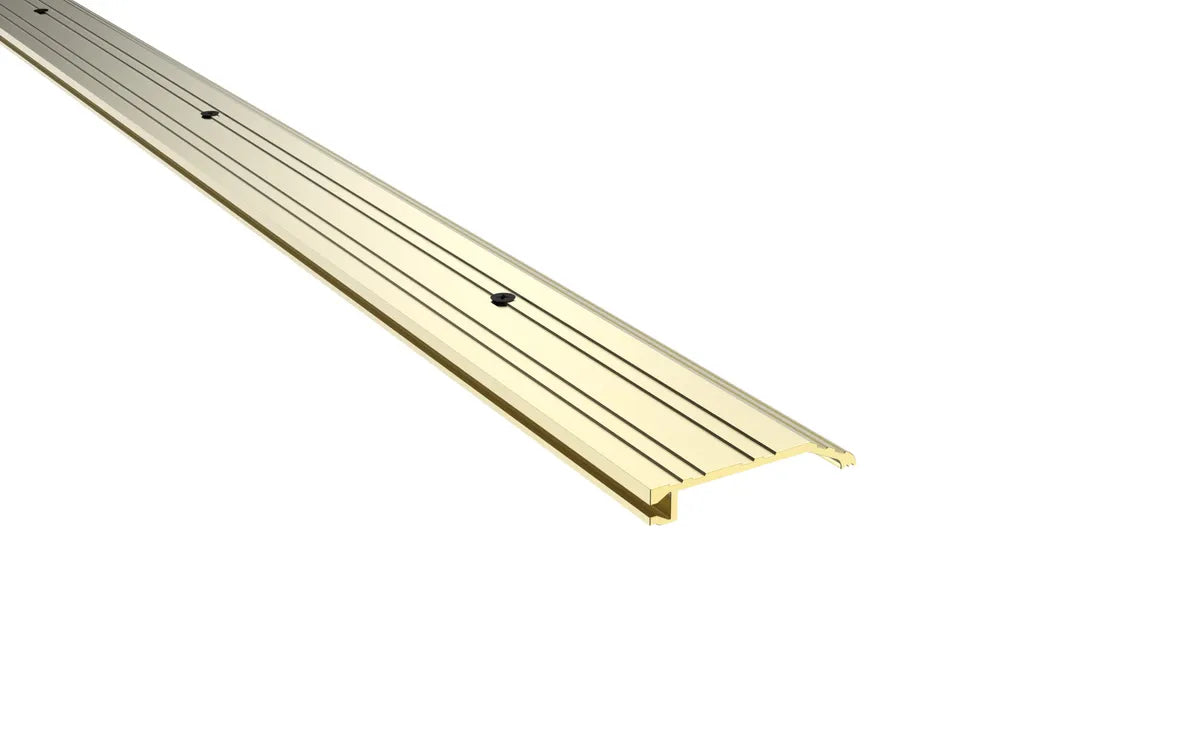

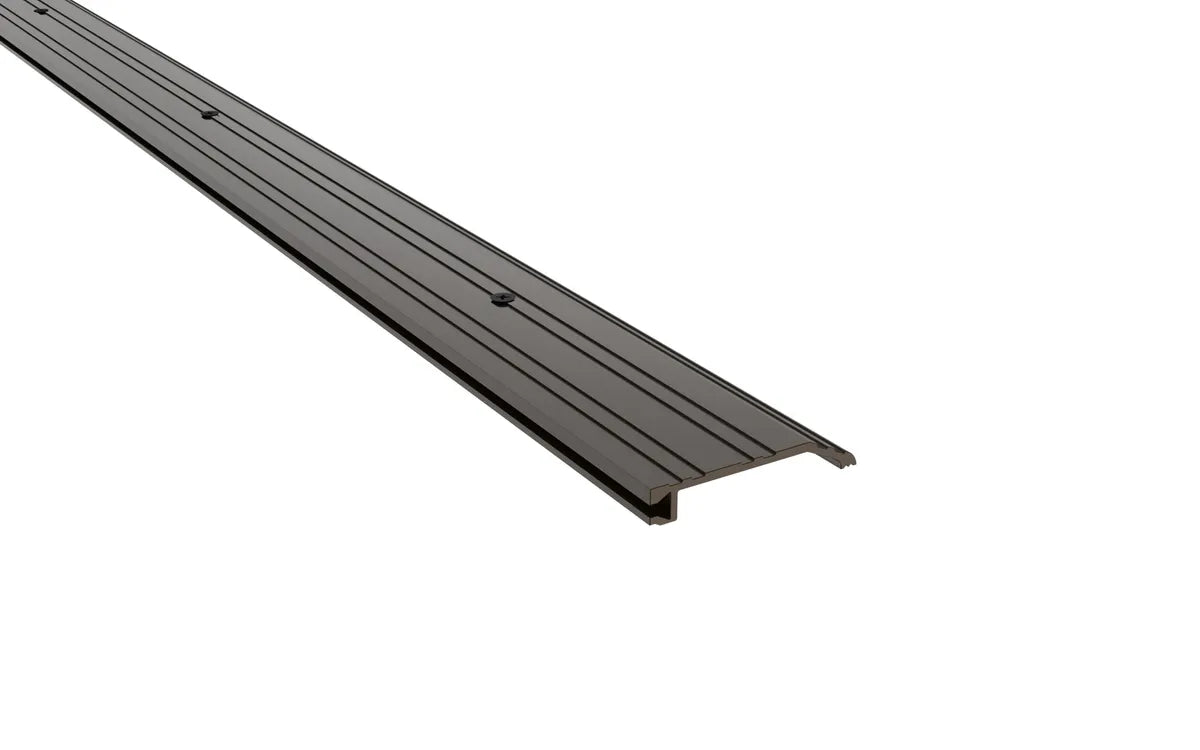

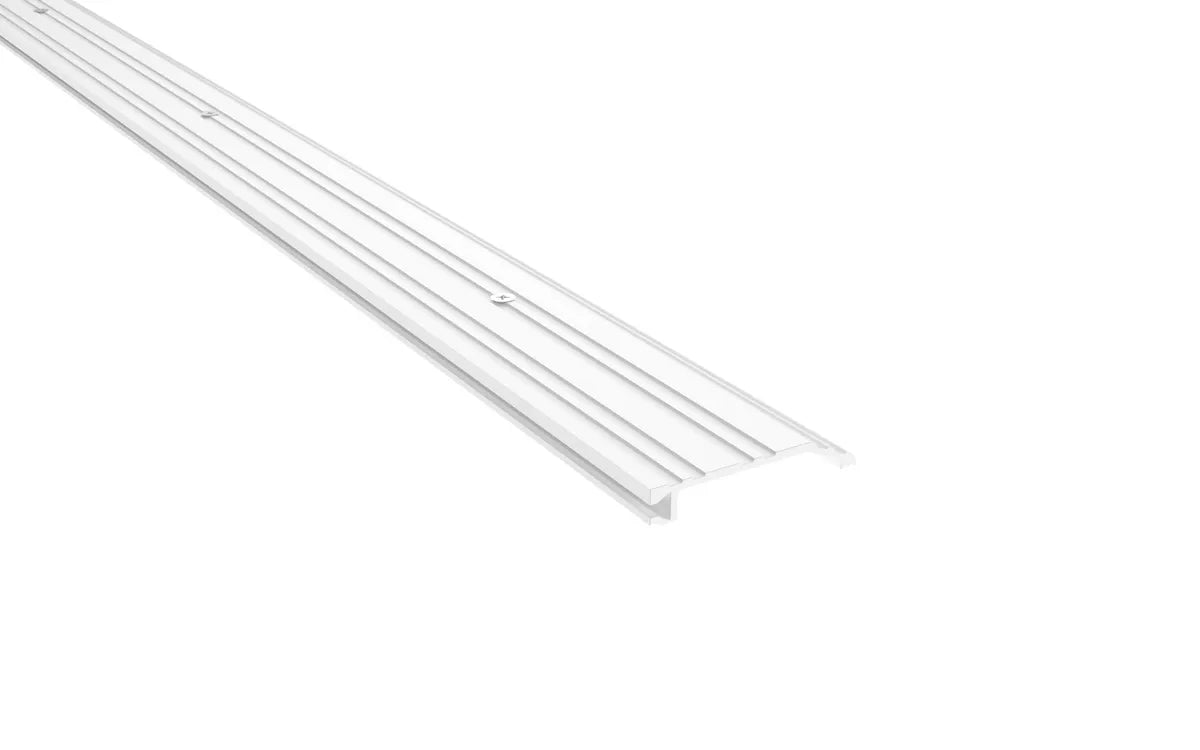

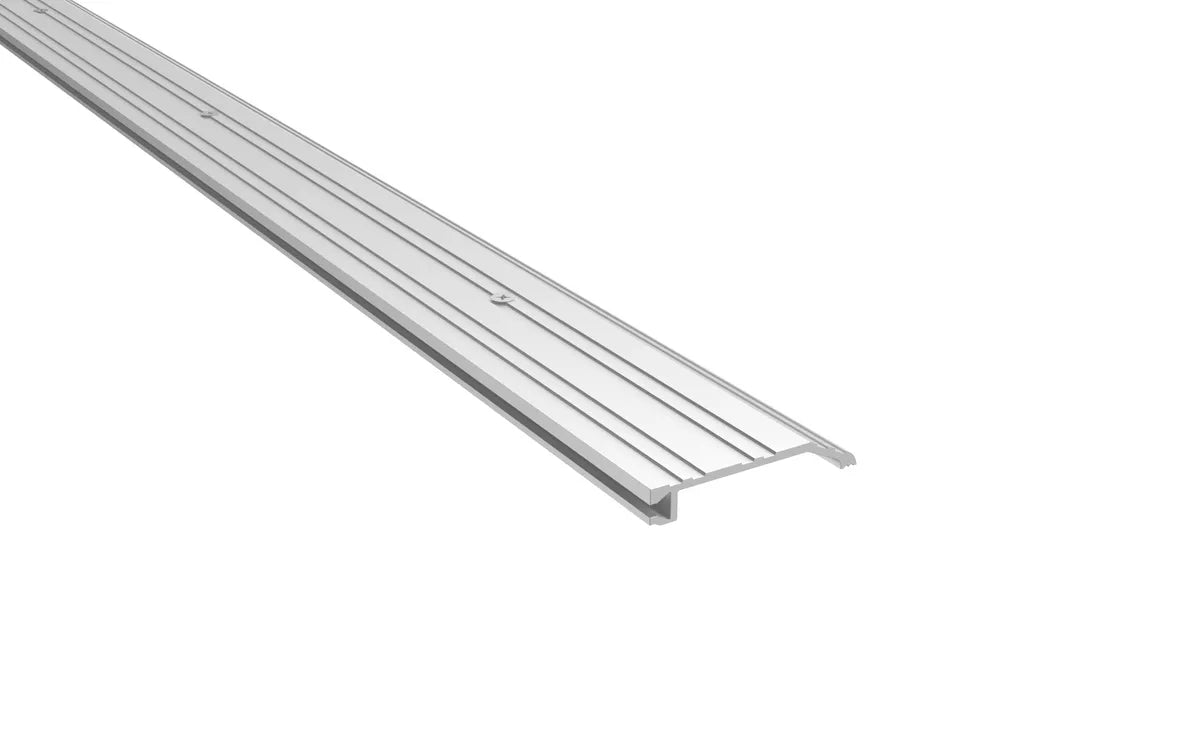

The 253 Series 3" wide Half Saddle Threshold effectively fills offset floors by 1/2" to create a smooth transition between different floor surfaces. It's BHMA certified, fire rated, and can be custom cut to size.
Features
-
Integrated channel to connecting thermal keys
-
Wood screw standard, other fasteners available
-
Fire rated
Benefits
-
Can be used with other half saddles to make custom size and configuration saddles
-
ADA accessible if butted to a 1/2" offset
-
Creates a smooth transition between different floor surfaces
Specifications
-
Base Material: Aluminum, Brass
-
Fasteners: WS #10 x 1.5"
-
Maximum Length: 185"
-
Minimum Length: 24"
-

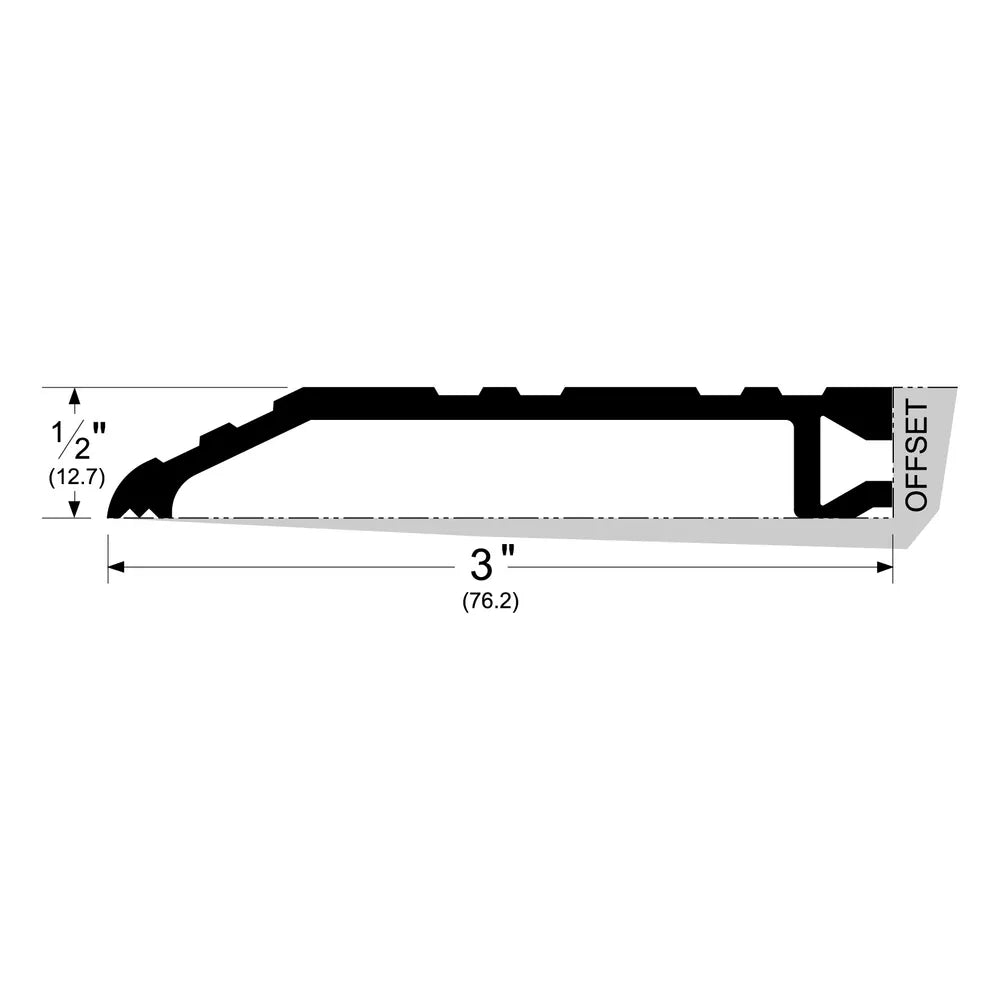

Overall Height: 1/2"
-
Weight: 0.56 lbs
-
Width: 3"
Certifications
-
UL 10C positive pressure
-
UL 4L10 listed
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
Options
-
L-Notch
-
U-Notch
