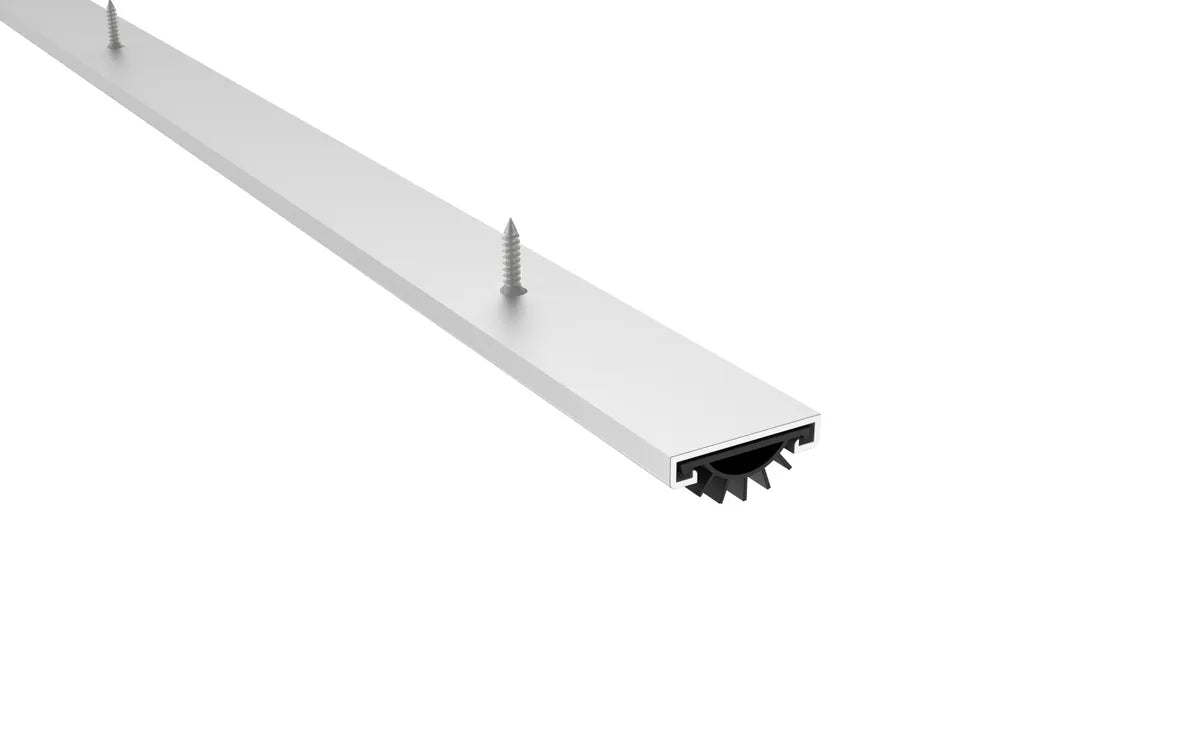

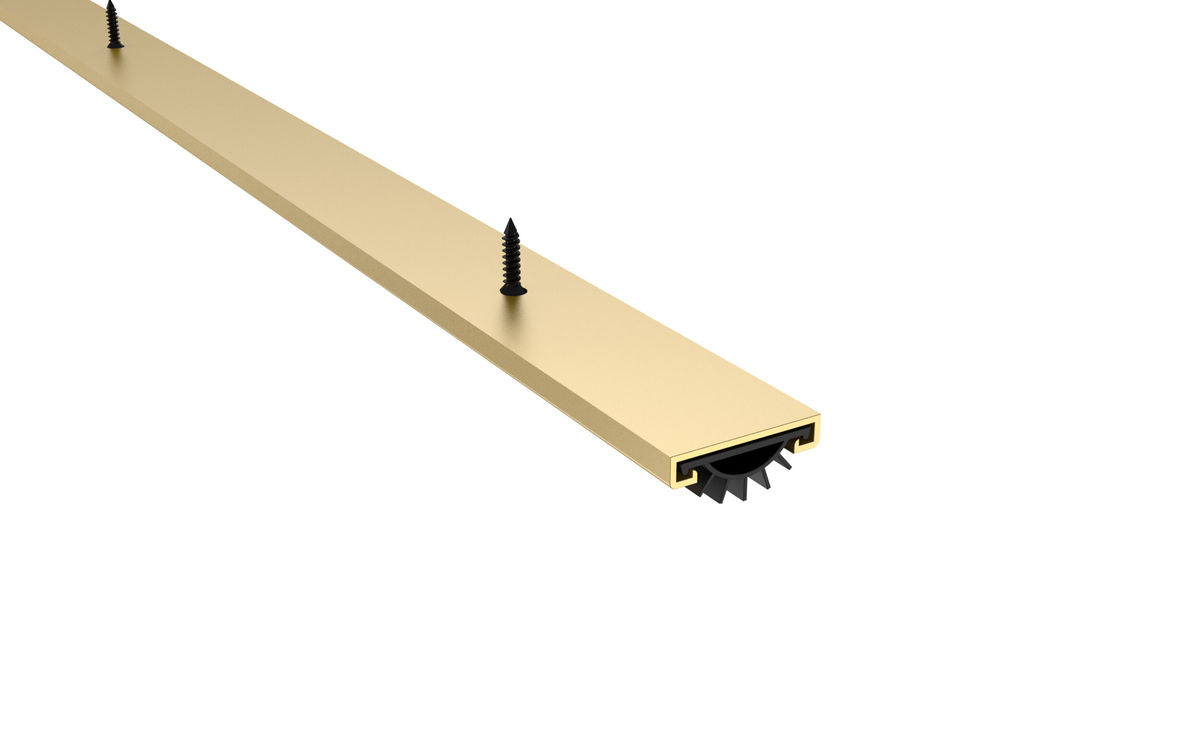

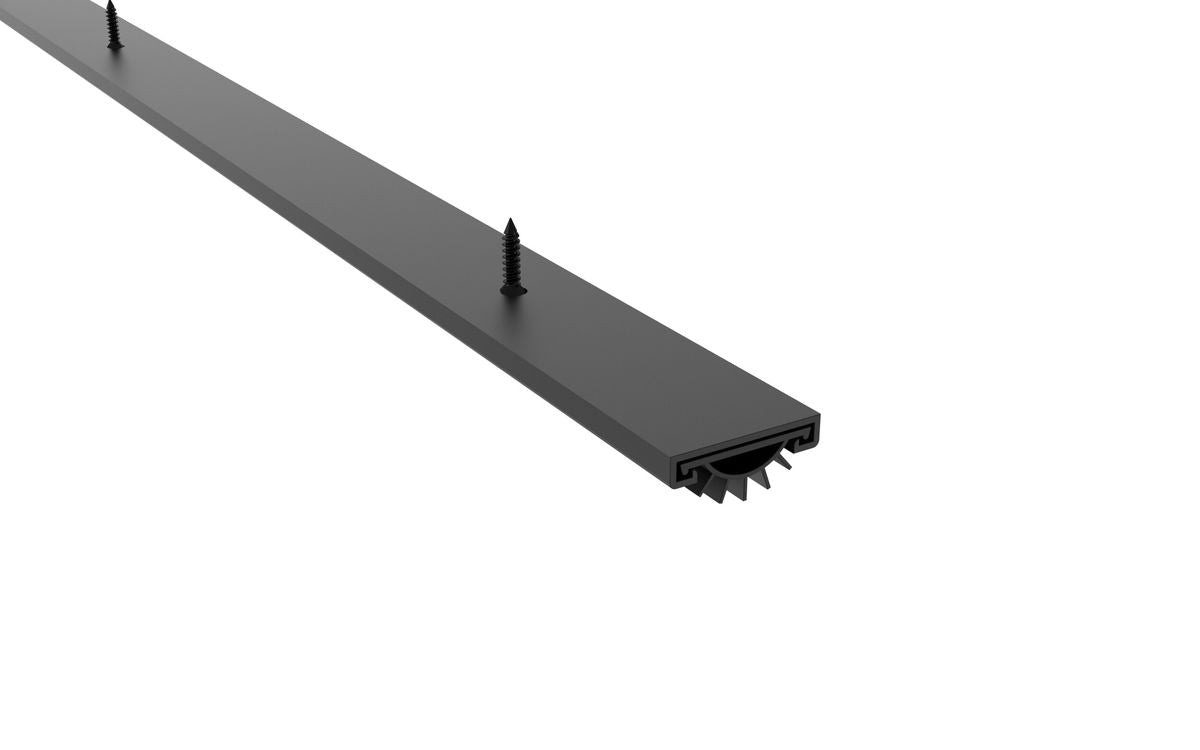

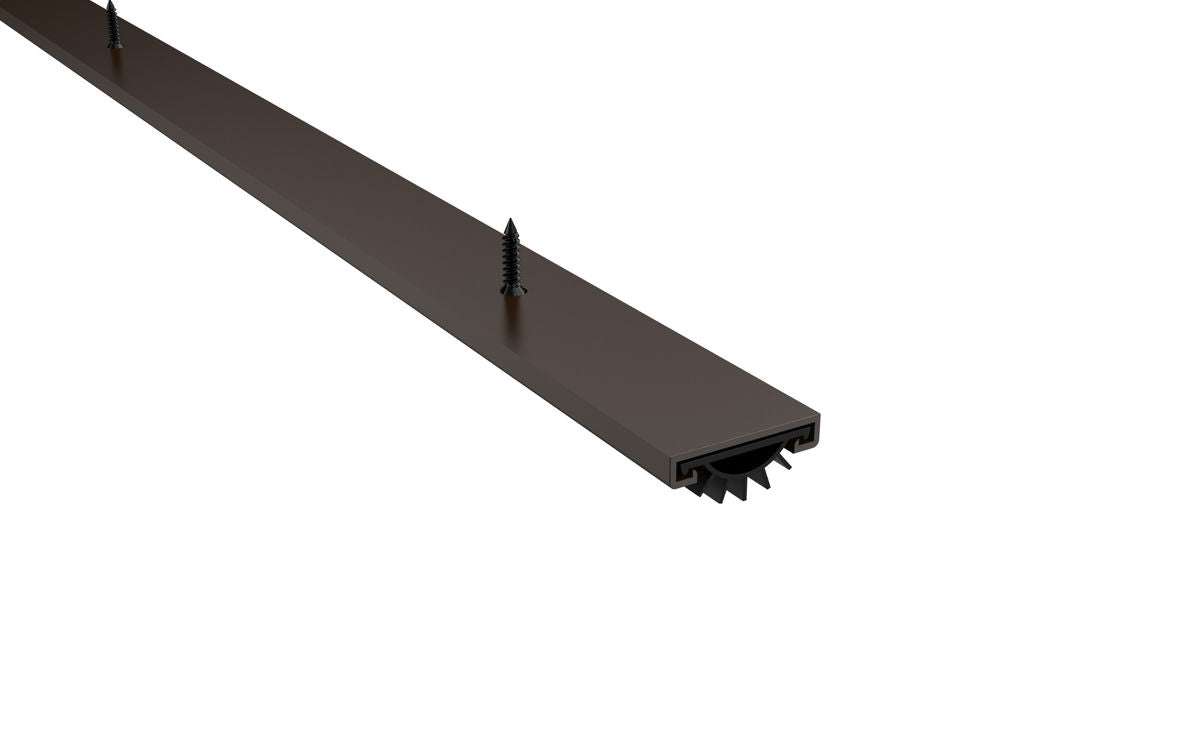

The 234 Series Door Shoe is perfect for situations where maintaining privacy and preventing light leakage is crucial. It provides a solid seal and can be used on doors of varying widths. The door shoe is fitted with your choice of Eco-V or PemkoPrene seals. It is designed to prevent light, moisture, drafts, air, sound, smoke, and fire from infiltrating the gap under doors.
Features
-
Available with PemkoPrene™ (PK) or Eco-V™ (V); both are the same shape and size
-
Slotted holes for easy adjustment
-
Recommended compression of gasket is 1/16"
-
Supplied with 1/4" undercut from length ordered, except where otherwise specified. Specify "Net Length" to receive custom measurements as ordered
Benefits
-
Provides protection for the bottom of the door
-
Seals the area under a door with minimal effect on the appearance of the face of the door
-
Blocks unwanted airflow and light, and provides privacy
Specifications
-
Base Material: Aluminum
-
Fasteners: PHSMS #6 x 5/8"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1/2"
Bottom Plate Door Shoe with PemkoPrene Insert
Features
- Rubber-like materials that can be processed like conventional thermoplastics
- Possesses the same flexibility and durability common to natural rubber compounds
- Offers excellent design freedom in the field of architectural door seals
- Outstanding resistance to cleaning fluids and disinfectants
- Everyday resilience and low impedance to opening or closing requirements on door assemblies
- Used for general purpose gaskets, weatherstripping for windows and doors, and commercial glazing seals
Certifications
- GREENGUARD Gold Certified
- UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
Insert Colors
- BL - Black
- GR - Gray
Bottom Plate Door Shoe with Vinyl Insert
Features
- GREENGUARD Gold certified, eco-friendly material
- Economical bio-based material, contains no phthalates or heavy metals
- Assists building and design teams with emissions criteria in green building rating programs
- Highly versatile, easily deployable for a variety of building applications
- Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
- Meets the Pemko gasketing standards for compression and tensile strength, which provides exceptional energy-saving performance
- Prevents air leakage
- Heavy metal free
- Plasticizers from renewable carbon sources, stabilizers are organic-based and zinc free
- Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild cleaning solutions
Certifications
- GREENGUARD Gold Certified
- UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other
- Opening Protectives
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
Insert Colors
- BL - Black
- GR - Gray
