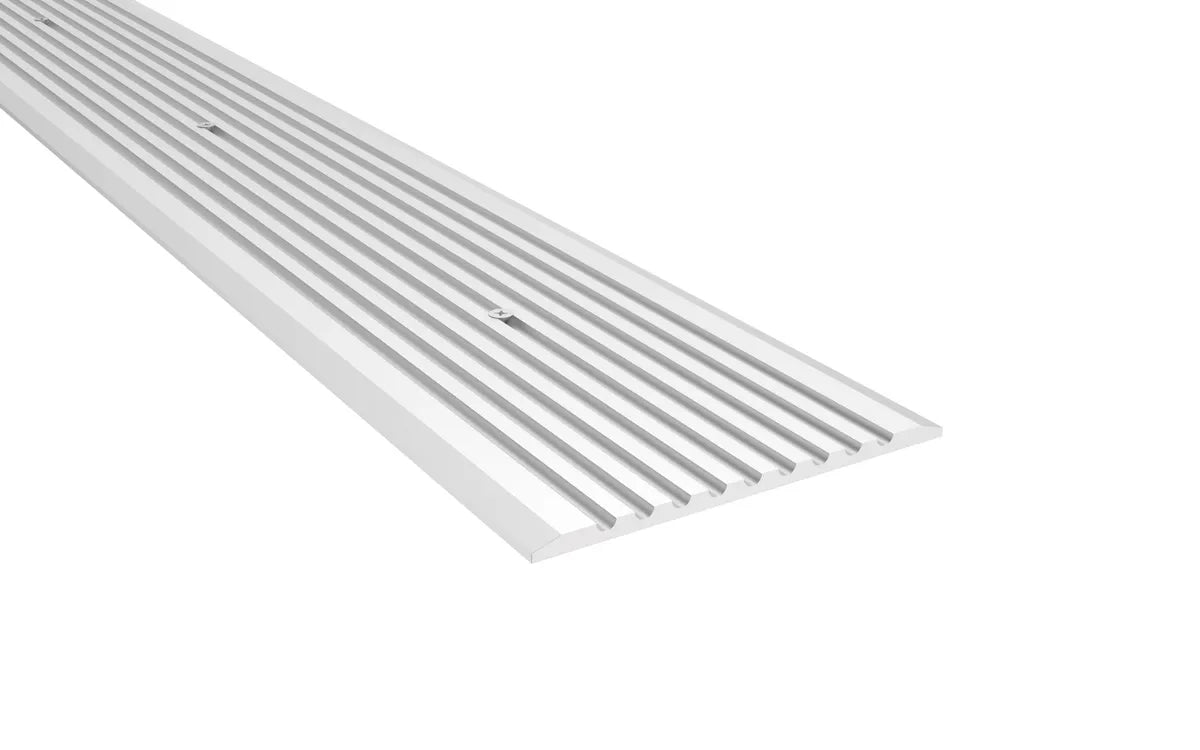

The 2266 (5-29/32" w) Series Floor Plates are made from high-quality fluted aluminum with a beveled edge, these surface-mounted cover plates prevent floor warping by accommodating slight shifts in adjacent floor surfaces due to seasonal temperature changes, providing durability and flexibility. They offer custom options tailored to your specifications and are available with optional PemKote non-slip coating.
Features
-
Used as a transition or part of custom welded assembly
-
Available with PemKote™ non-slip coating
-
Furnished undrilled unless drilling instructions are specified when ordering
-
Ordering of fasteners does not constitute drilling instructions
-
Requires support every 4" on center and at welded seams
Benefits
-
Pemko can fabricate almost any floor plate threshold
Specifications
-
Base Material: Aluminum alloy
-
Fasteners: SMS #10 x 1 inch
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1/4"
Certifications
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
