The 223_NB U-shaped door shoe sweeps provide an optimal solution for situations requiring airflow under the door while addressing concerns about privacy and light leakage. Constructed with a durable aluminum channel and a Nylon Brush ("NB") insert that ensures a strong seal, covering 1.125" of the bottom door and deflecting rain from the interior. Tested and approved under UL10C for fire and ASTM 283 for airflow, these door shoe sweeps offer reliable performance in various settings.
Features
-
Nylon Brush insert
-
Recommended compression of gasket is 1/16"
-
Slotted holes for easy adjustment
-
Half notch (1/2") and Full notch (1/2") available. Other widths offered on Half Notch, please specify when ordering
-
Supplied with 1/4" undercut from length ordered, except where otherwise specified. Specify "Net Length" to receive custom measurements as ordered
Benefits
-
The rain drip model is ideal for deflecting rain away from the bottom of door
-
Provides protection for the bottom of the door
-
Naturally repels rodents and spiders; can be sprayed with household pest repellent for additional pest control
Specifications
-
Base Material: Aluminum
-
Fasteners: PHSMS #6 x 5/8"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1 11/32"
Models and Inserts

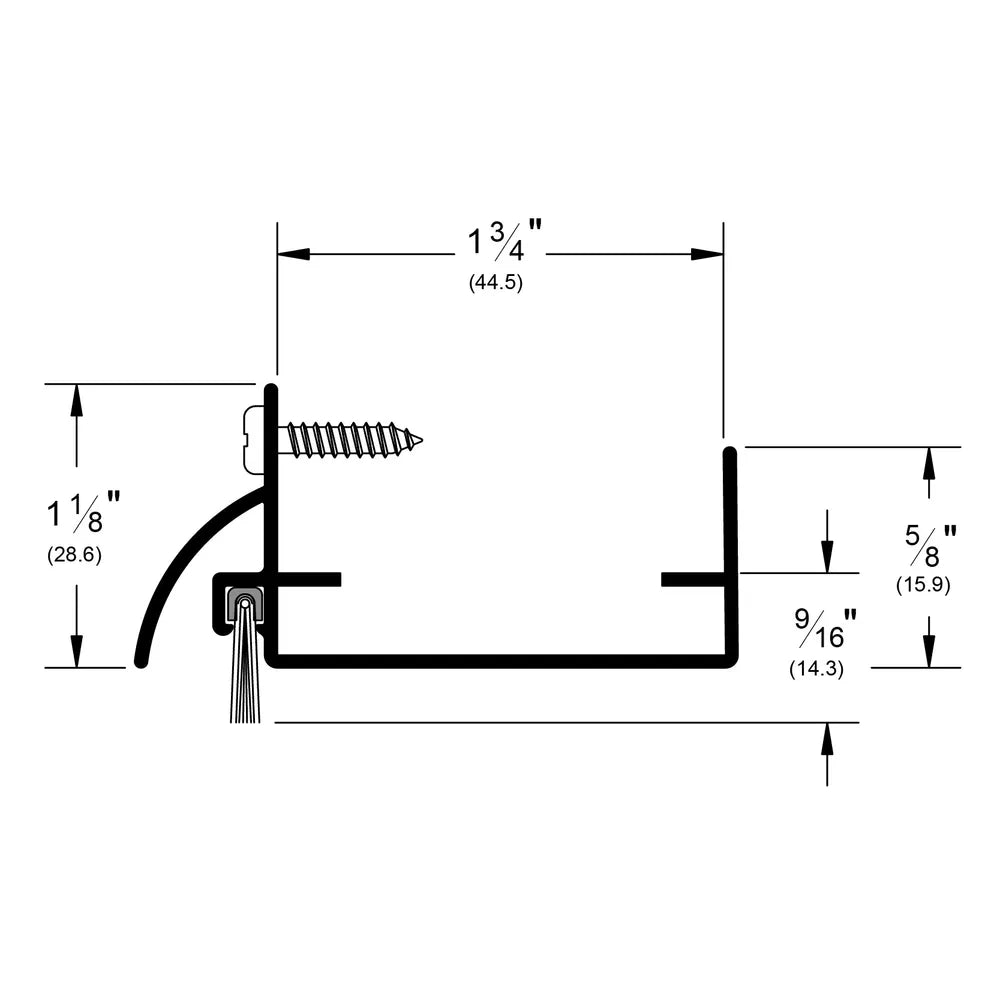

U-Shaped Door Shoe with Rain Drip and Nylon Brush Insert
Features
- Nylon filaments conform extremely well to irregular surfaces such as carpet, stone and grout lines
- Provides excellent seal to keep out draft, dust, moisture, insects, fumes, light and sound
- Flexible at high and low temperatures
- Consists of densely compressed nylon filaments
- Conforms to irregular surfaces, excellent for sealing almost any opening using a minimal closing force
- Reduces the infiltration of light, air, wind, rain, and snow
- Prevents heat loss and controls the penetration of smoke and fumes
Certifications
- GREENGUARD Gold Certified
- UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ASTM E 90-2009
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
Insert Colors
- BL - Black
- GR - Gray
