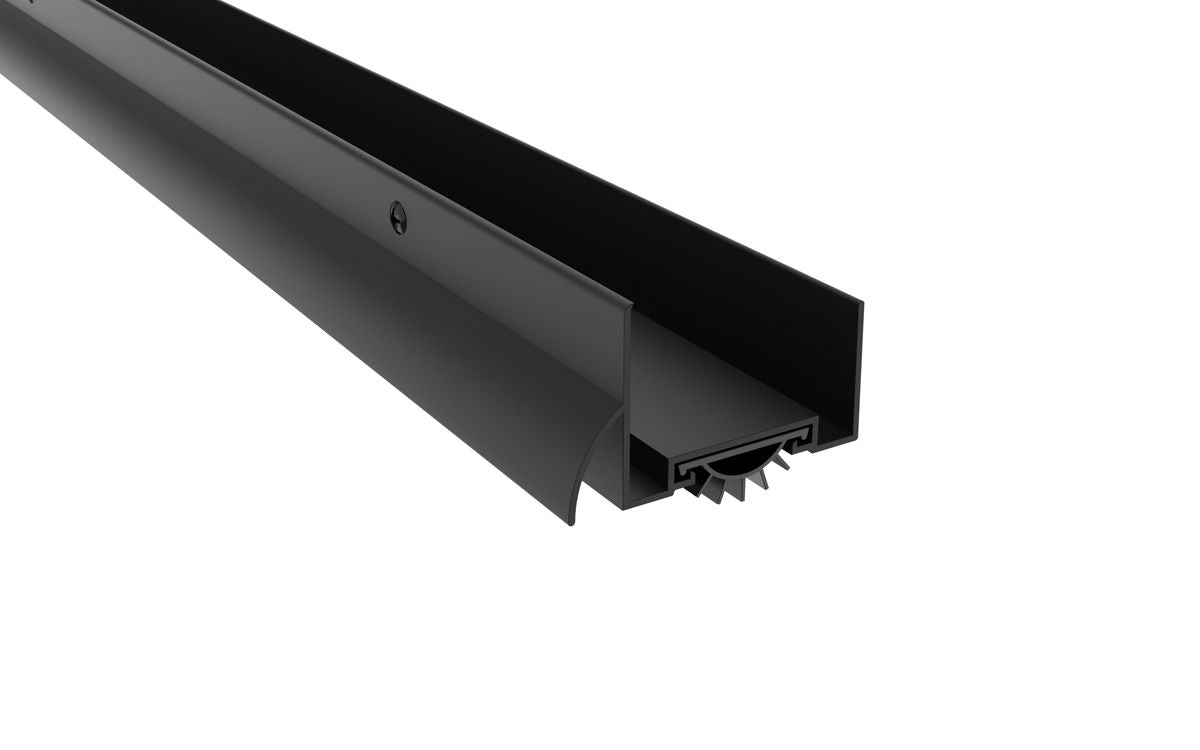

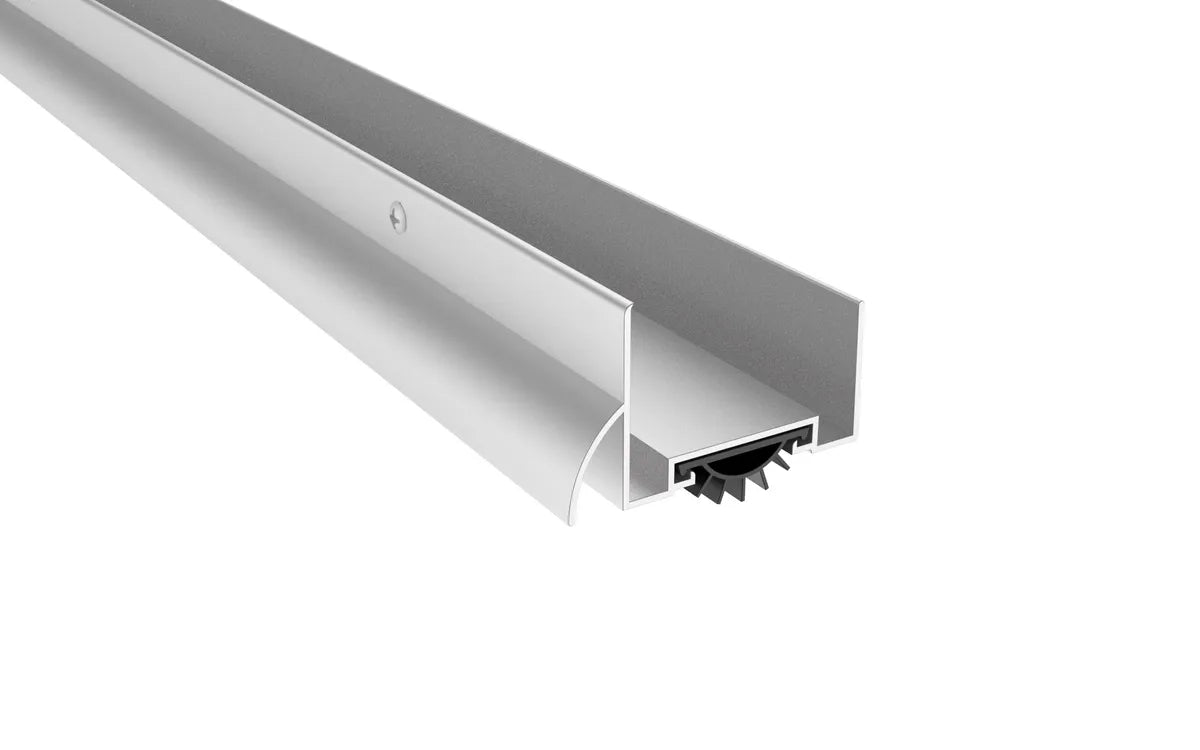

The 2221 Series U-shaped door shoe with rain drip is designed for hollow metal doors with an inverted bottom channel. It provides protection from abuse, seals the door gap up to 0.25", and deflects water to prevent seepage. This door shoe is fire, smoke, air infiltration, and sound rated. It is available in various finishes, with two insert options, and can be custom cut to size.
Features
-
For Hollow Metal doors with inverted bottom channel
-
Slotted holes for easy adjustment
-
Recommended compression of gasket is 1/16"
-
Available with PemkoPrene™ (PK) or Eco-V™ (V); both are the same shape and size
-
Half notch (1/2") and Full notch (1/2") available. Other widths offered on Half Notch, please specify when ordering
-
Supplied with 1/4" undercut from length ordered, except where otherwise specified. Specify "Net Length" to receive custom measurements as ordered
Benefits
-
Rain drip model is ideal for deflecting rain away from the bottom of door
-
Provides protection for the bottom of the door
-
Blocks unwanted airflow and light, and provides privacy
Specifications
-
Base Material: Aluminum
-
Fasteners: PHSMS #6 x 5/8"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1 5/8"
Models & Inserts
U-Shaped Door Shoe for Hollow Metal Doors with Rain Drip and Eco-V Insert
Features
- GREENGUARD Gold certified, eco-friendly material
- Economical bio-based material, contains no phthalates or heavy metals
- Assists building and design teams with emissions criteria in green building rating programs
- Highly versatile, easily deployable for a variety of building applications
- Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
- Meets the Pemko gasketing standards for compression and tensile strength, which provides exceptional energy-saving performance
- Prevents air leakage
- Heavy metal free
- Plasticizers from renewable carbon sources, stabilizers are organic-based and zinc free
- Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild cleaning solutions
Certifications
- GREENGUARD Gold Certified
- UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ASTM E-283-04 (2012)
- ASTM E 90-2009
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
Insert Colors
- BL - Black
- GR - Gray
U-Shaped Door Shoe for Hollow Metal Doors with Rain Drip and PemkoPrene Insert
Features
- Rubber-like materials that can be processed like conventional thermoplastics
- Possesses the same flexibility and durability common to natural rubber compounds
- Offers excellent design freedom in the field of architectural door seals
- Outstanding resistance to cleaning fluids and disinfectantsEveryday resilie
- nce and low impedance to opening or closing requirements on door assemblies
- Used for general purpose gaskets, weatherstripping for windows and doors, and commercial glazing seals
Certifications
- GREENGUARD Gold Certified
- UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- ASTM E-283-04 (2012)
- ASTM E 90-2009
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
Insert Colors
- BL - Black
- GR - Gray
