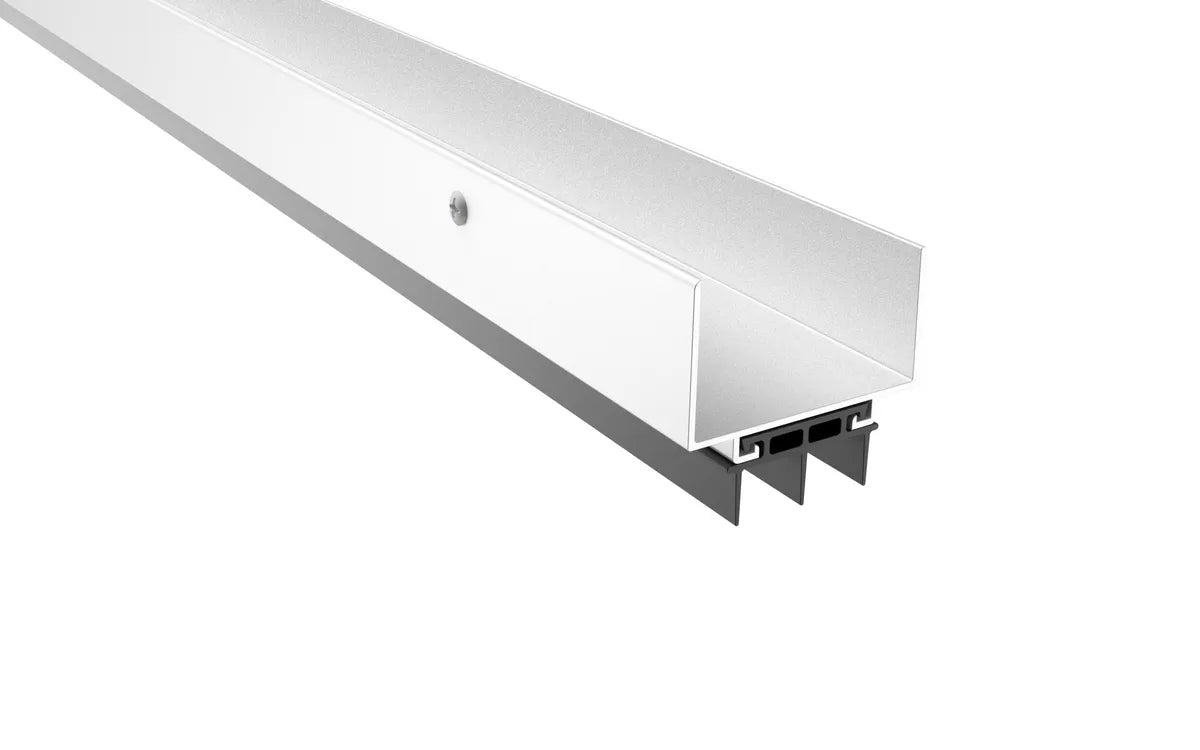

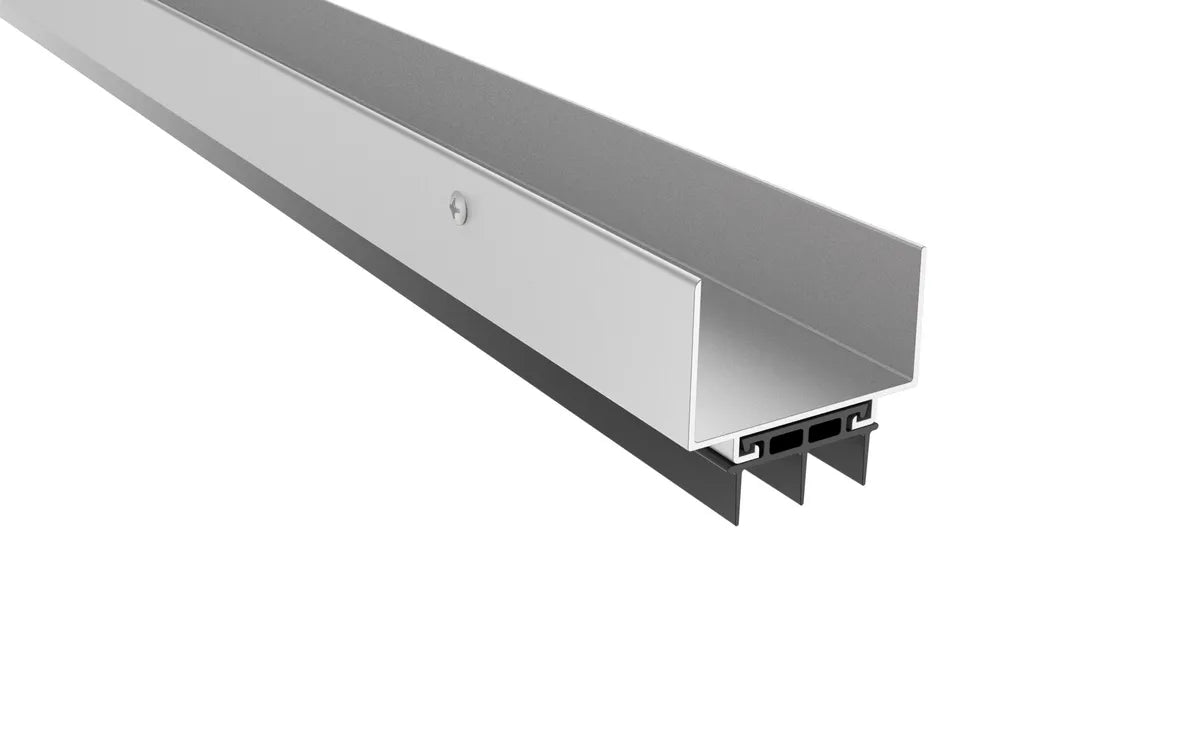

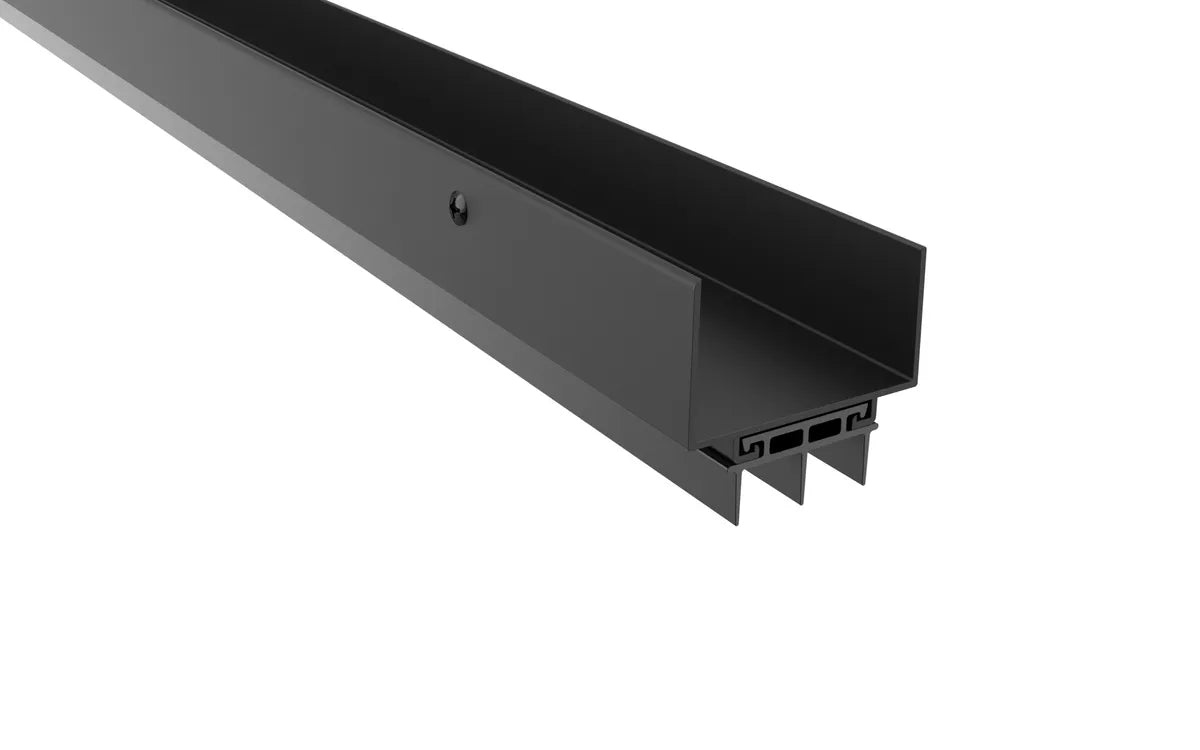

The 2173_V U-Shaped Door Shoe with combination kick plate and rain drip cap is designed to provide superior protection for the bottom of doors. It seals the gap up to 0.5" and is rated for fire, smoke, air infiltration, sound, and low VOC emission. It is compatible with doors of 1.75" thickness and is available in various aluminum finishes. The door shoe is custom cut to size and priced per foot.
Features
-
Notched-fin gaskets (where applicable) allow up to 50% free air flow
-
Recommended compression of gasket fins is 1/16
-
Also available with Unnotched insert (Add "UN" suffix)
-
Available in 36" and 48"
-
Supplied with 1/4" undercut from length ordered, except where otherwise specified. Specify "Net Length" to receive custom measurements as ordered
Benefits
-
Provides protection for the bottom of the door
-
Eco-V insert is an economical bio-based material, does not contain phthalates or heavy metals
-
Standards for compression and tensile strength, which provides exceptional energy-saving performance
-
Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
-
Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild cleaning solutions

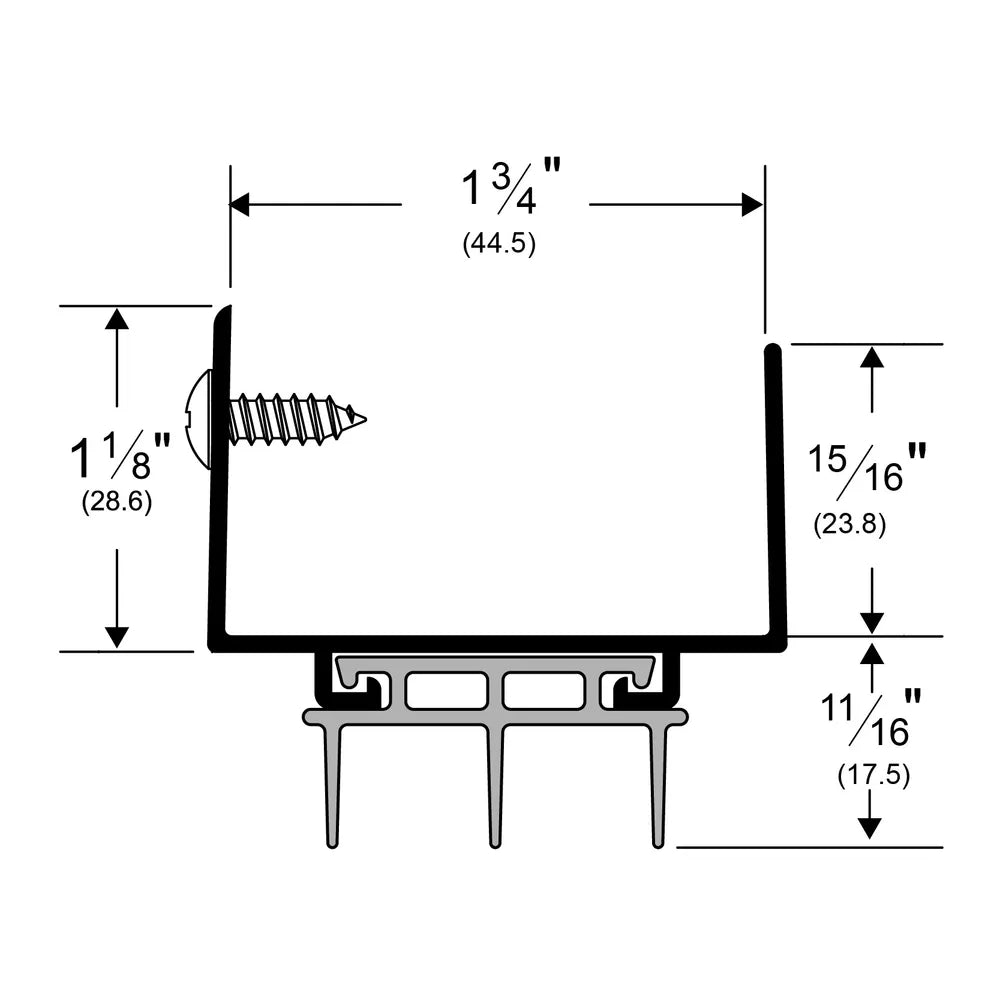

Specifications
-
Base Material: Aluminum
-
Fasteners: PHSMS #6 x 5/8"
-
Maximum Length: 48"
-
Minimum Length: 36"
-
Overall Height: 1 11/16"
-
Width: 1 3/4"
Certifications
-
GREENGUARD Gold Certified
-
UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
ASTM E-283-04 (2012)
-
ASTM E 90-2009
-
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
