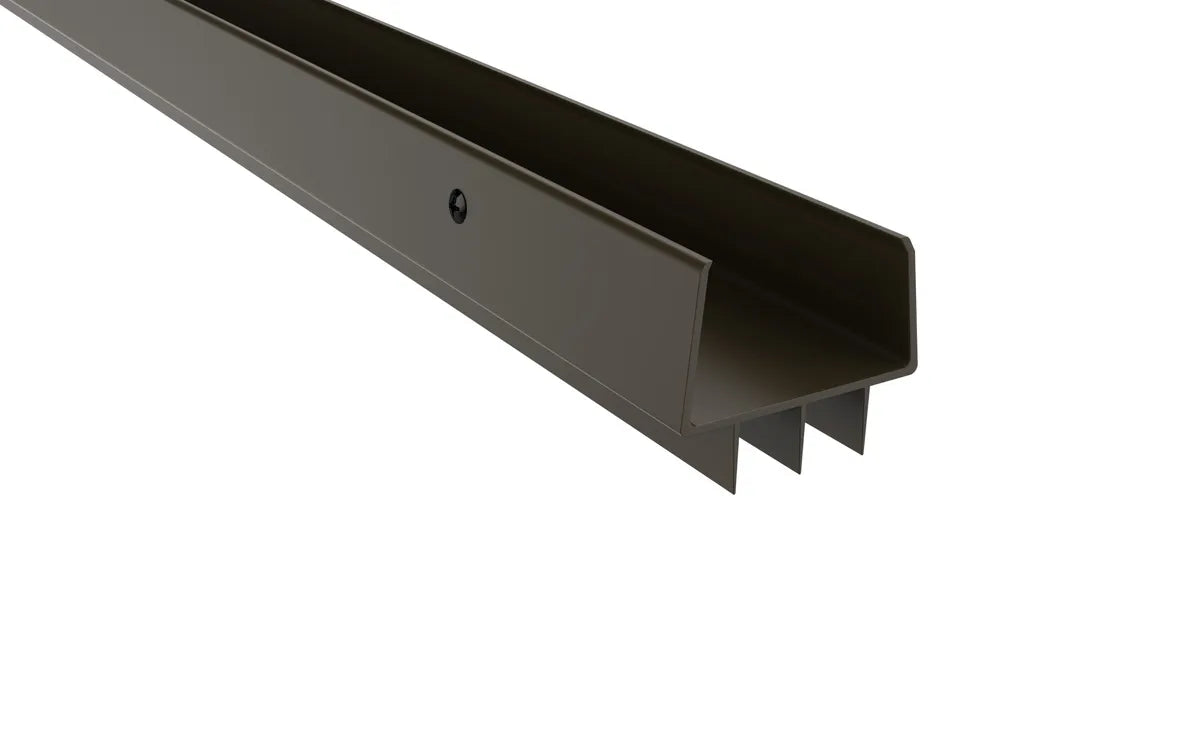

The 2170_V U-Shaped Door Shoe is designed to provide protection and a solid seal for 1.75" thick doors. It features notched fins for 50% free air flow. The pliable Eco-V seal ensures a strong and durable seal while being environmentally friendly.
Features
-
Dual durometer Eco-V door shoe
-
Supplied with 1/4" undercut from length ordered, except where otherwise specified. Specify "Net Length" to receive custom measurements as ordered
-
Available in 36" and 48"
-
Notch is standard
-
Also available with Unnotched insert (Add "UN" suffix)
-
Notched-fin gaskets (where applicable) allow up to 50% free air flow
Benefits
-
Provides protection for the bottom of the door
-
Blocks unwanted airflow and light, and provides privacy
-
Eco-V insert is an economical bio-based material, does not contain phthalates or heavy metals
-
Standards for compression and tensile strength, which provides exceptional energy-saving performance
-
Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
-
Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild cleaning solutions

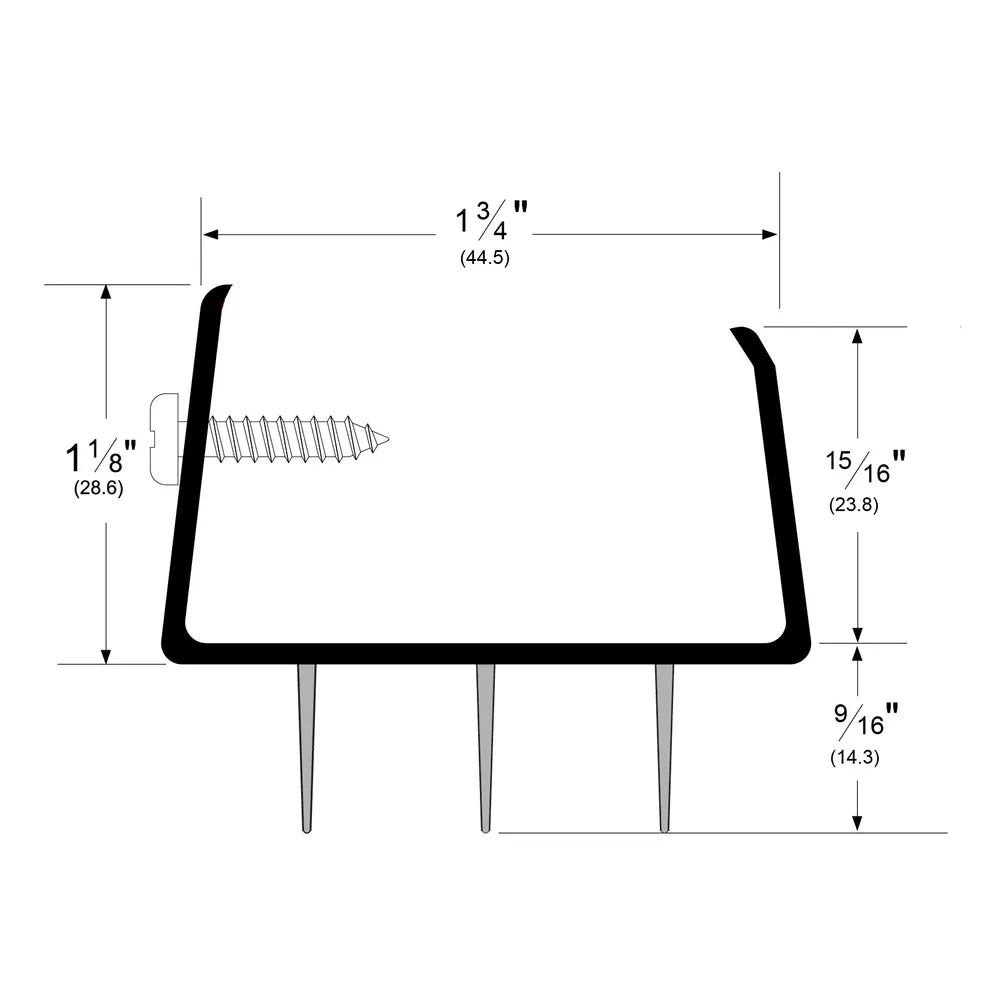

Specifications
-
Fasteners: PHSMS #6 x 5/8"
-
Maximum Length: 48"
-
Minimum Length: 36"
-
Overall Height: 1 11/16"
-
Width: 1 3/4"
Certifications
-
GREENGUARD Gold Certified
-
UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
ASTM E-283-04 (2012)
-
ASTM E 90-2009
-
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
