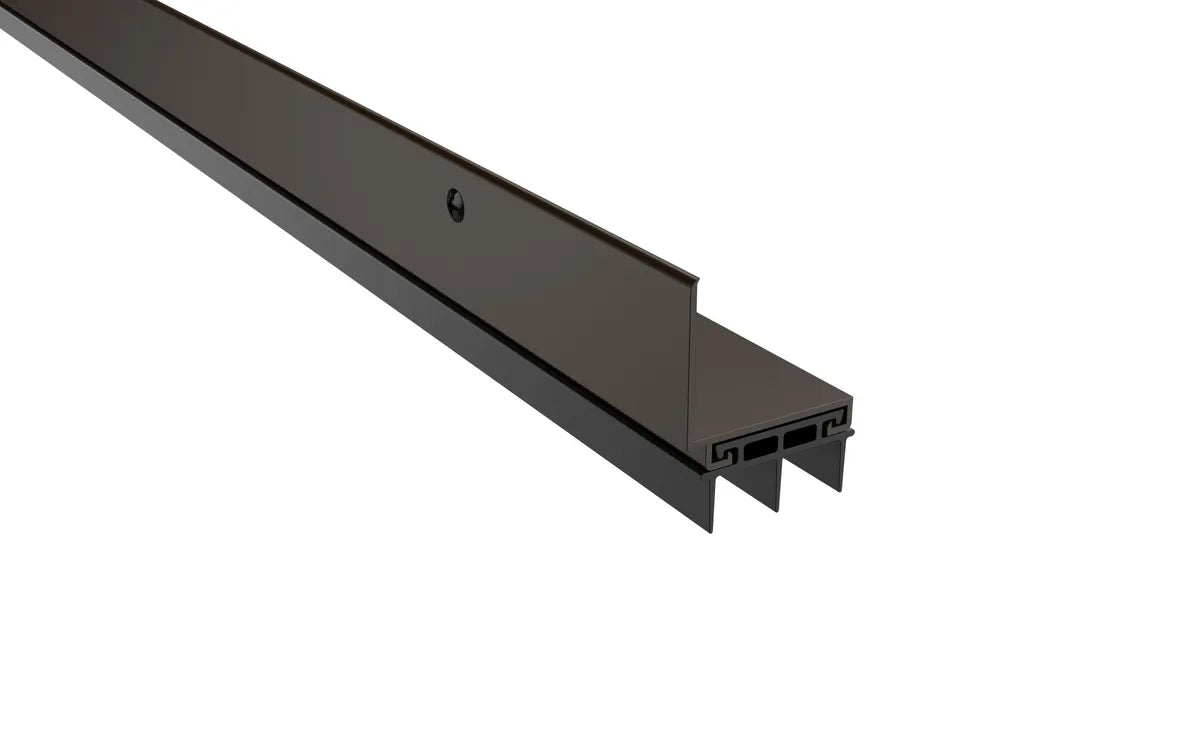

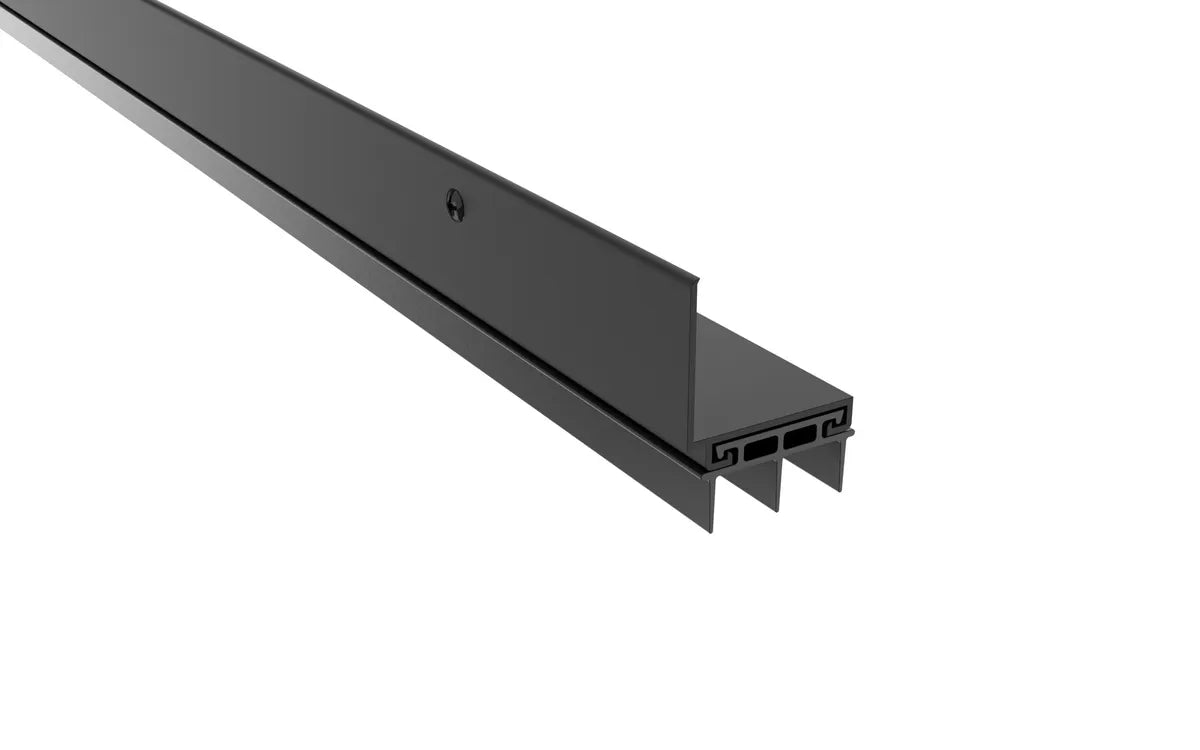

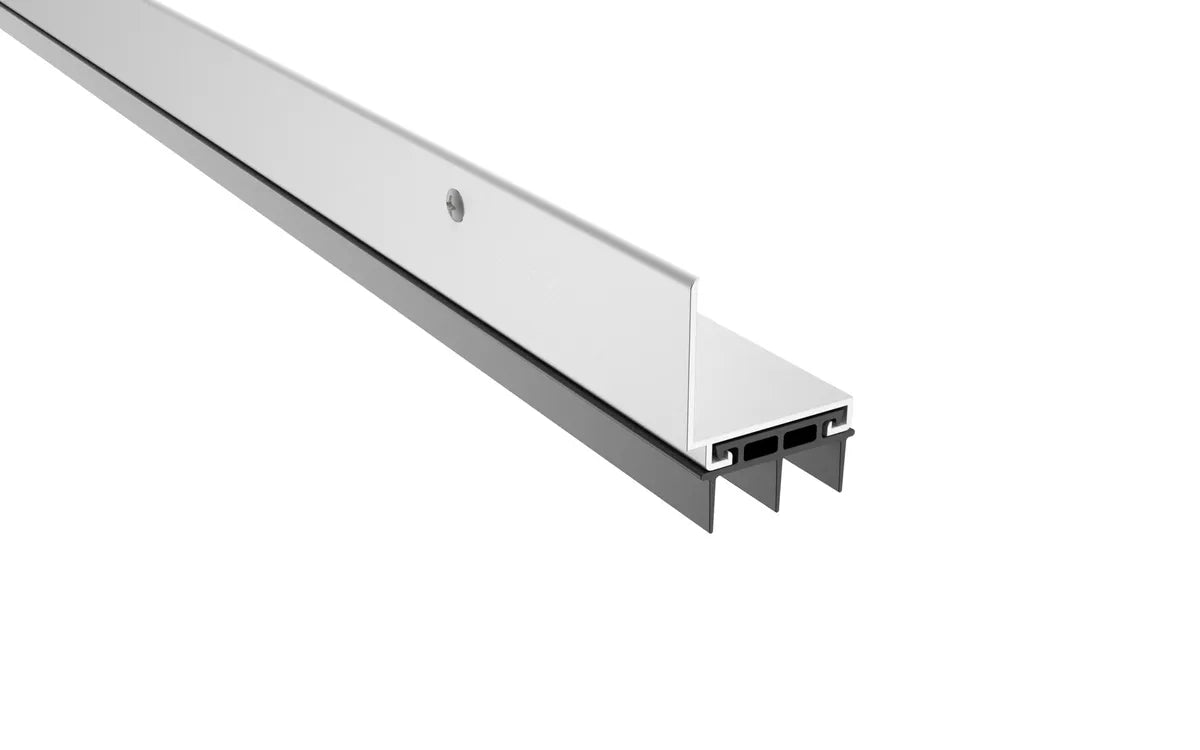

This 2113_V U-Shaped Door Shoe is designed to protect the bottom of your door while providing a solid seal. It is compatible with 1 3/4" thick doors and features notched fins for 50% free airflow. The dual-durometer casing made of heavy-duty PVC ensures strength, while the flexible fins allow for easy movement of the door. The notched seal option is ideal for applications where air circulation is required.
Features
-
Notched-fin gaskets (where applicable) allow up to 50% free air flow
-
Recommended compression of gasket fins is 1/16
-
Available in 36" and 48"
-
Supplied with 1/4" undercut from length ordered, except where otherwise specified. Specify "Net Length" to receive custom measurements as ordered
-
Half notch (1/2") and Full notch (1/2") available. Other widths offered on Half Notch, please specify when ordering
-
Slotted holes for easy adjustment
-
Specify UN (Unnotched) option to achieve sound and air filtration
Benefits
-
Provides protection for the bottom of the door
-
Eco-V insert is an economical bio-based material, does not contain phthalates or heavy metals
-
Standards for compression and tensile strength, which provides exceptional energy-saving performance
-
Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
-
Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild cleaning solutions

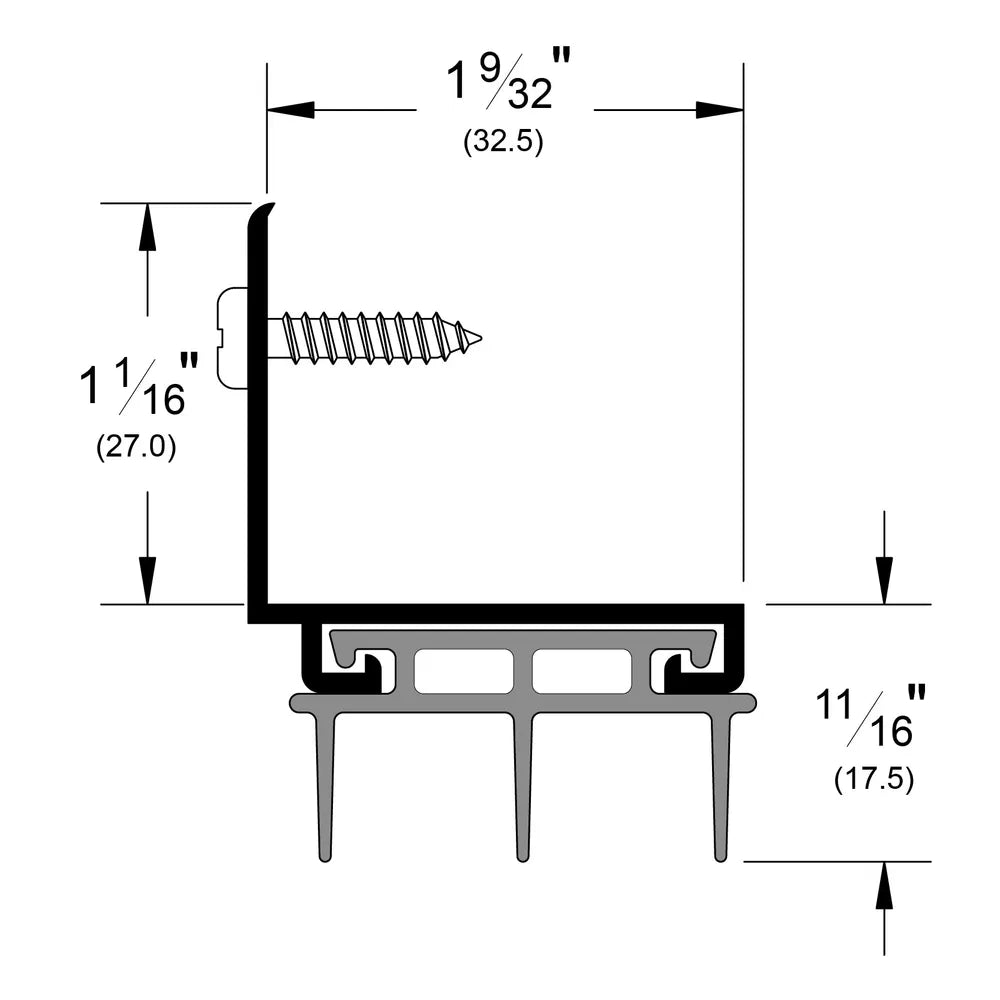

Specifications
-
Base Material: Aluminum
-
Fasteners: PHSMS #6 x 5/8"
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1 3/4"
Models & Inserts
