The 196 Series Floor Plate Trim/Support raises .25" floor cover plates to level off flat surfaces or provide additional support. This product is designed to support cover plates every 4" O.C. or as needed.
Features
-
Used as a transition or part of custom welded assembly
-
Available with PemKote™ non-slip coating
-
Furnished undrilled unless drilling instructions are specified when ordering
-
Ordering of fasteners does not constitute drilling instructions
-
Requires support every 4" on center and at welded seams
-
When ordering, specify whether material is to be used as trim or support
Benefits
-
Pemko can fabricate almost any floor plate threshold
Specifications
-
Base Material: Aluminum alloy, Brass
-
Fasteners: SMS #10 x 1 inch
-
Maximum Length: 185"
-
Minimum Length: 24"
-

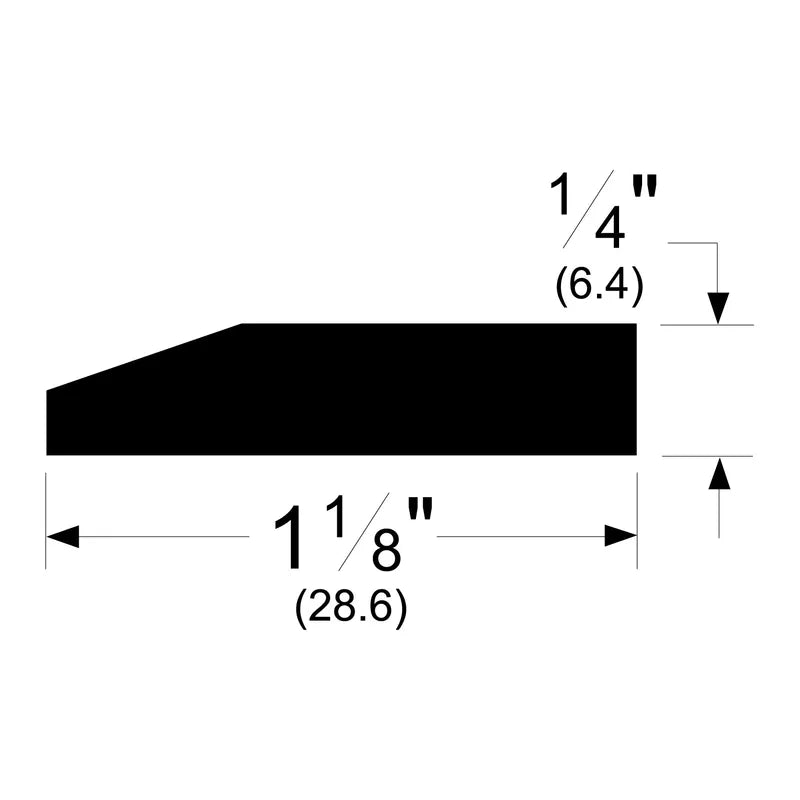

Overall Height: 1/4"
-
Weight: 0.31 lbs
-
Width: 1 1/8"
Certifications
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
