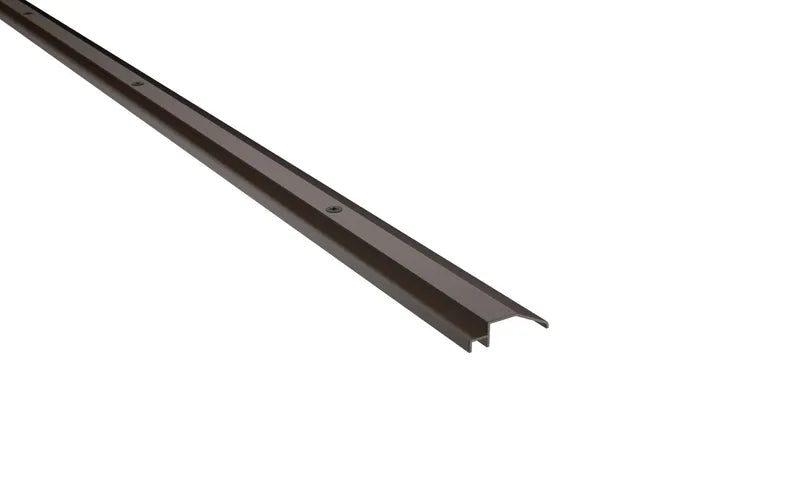

The 195 Series End Piece is a functional and visually appealing solution for finishing and supporting cover plates with a 1/4" height. It meets ADA compliance requirements and provides a neat trim over floor surfaces that require elevated plates. Compatible with our Fluted 1/4" Floor Plates.
Features
-
Used as a transition or part of a custom-welded assembly
-
Available with PemKote™ non-slip coating
-
Furnished undrilled unless drilling instructions are specified when ordering
-
Ordering of fasteners does not constitute drilling instructions
-
Requires support every 4" on center and at welded seams
Benefits
-
Pemko can fabricate almost any floor plate threshold
Specifications
-
Base Material: Aluminum alloy
-
Fasteners: Wood Screw #10 x 1.5 inches
-
Maximum Length: 185"
-
Minimum Length: 24"
-

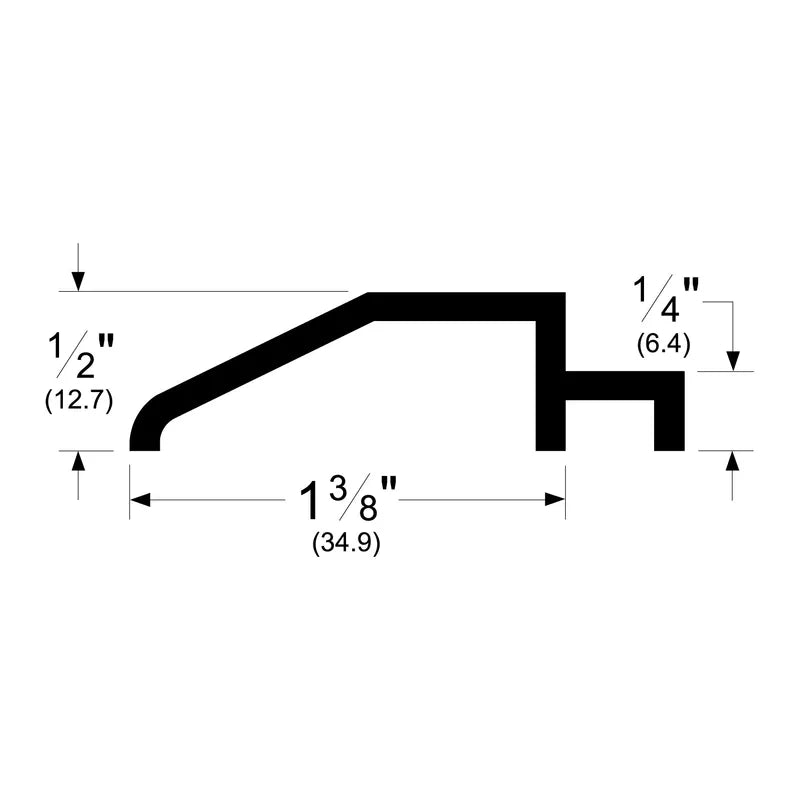

Overall Height: 1/4"
-
Weight: 0.27 lbs
-
Width: 1 3/8"
Certifications
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
