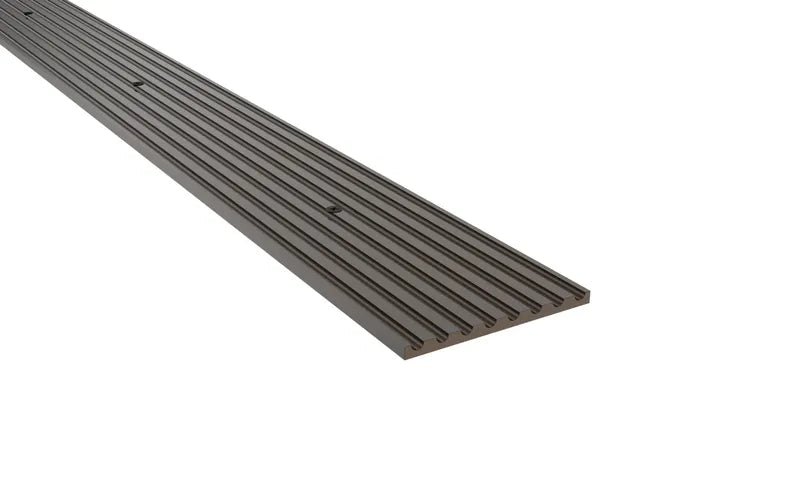

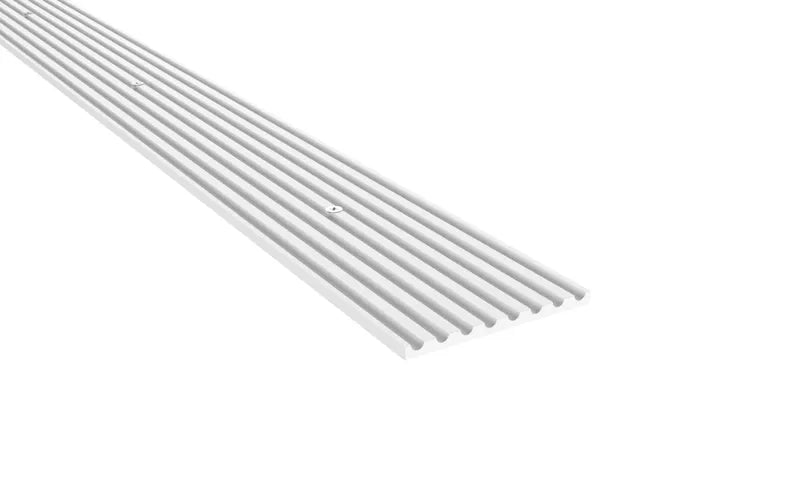

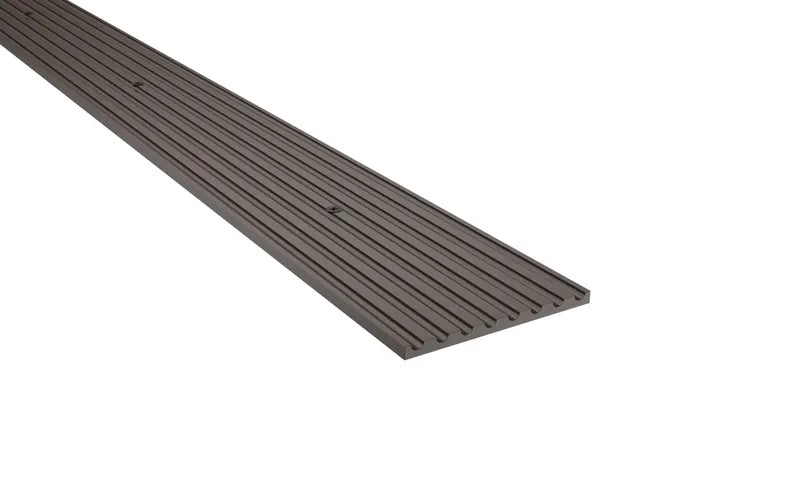

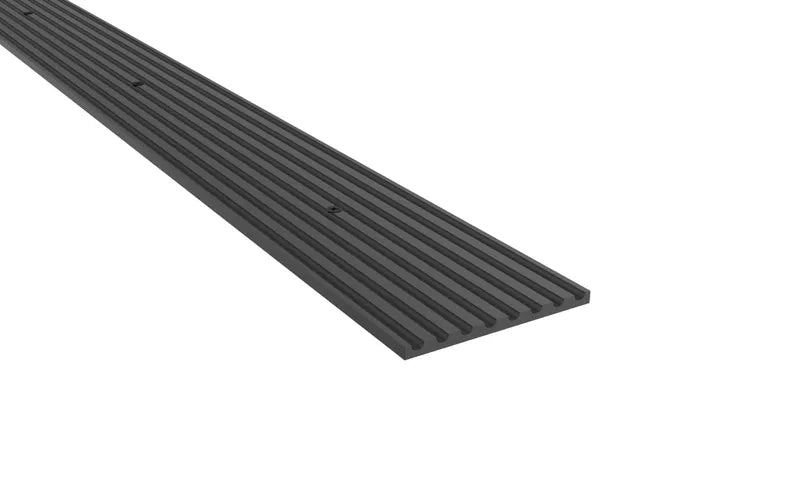

The 192 Floor Plate with Safety Tread is 4" wide, and a customizable threshold plate designed to prevent tripping and provide a safe transition between different flooring levels. It can be fabricated to meet specific size and drilling requirements, with options for different finishes. The floor plate is fire-rated, BHMA certified, and has an optional non-slip PemKote coating for improved safety.
Features
-
Used as a transition or part of custom welded assembly
-
Available with PemKote™ non-slip coating
-
Furnished undrilled unless drilling instructions are specified when ordering
-
Ordering of fasteners does not constitute drilling instructions
-
Requires support every 4" on center and at welded seams
Benefits
-
Pemko can fabricate almost any floor plate threshold
Specifications
-
Base Material: Aluminum alloy
-
Fasteners: SMS #10 x 1 inch
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1/4"
-
Weight: 0.96 lbs
-
Width: 4"
Certifications
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
Americans with Disabilities Act (ADA) Compliant
-
ANSI/BHMA A117.1
-
ANSI/BHMA A156.21 Thresholds
